Yamaha Tracer MT09TRA - Service manual > Charging system

Electrical system / Charging system

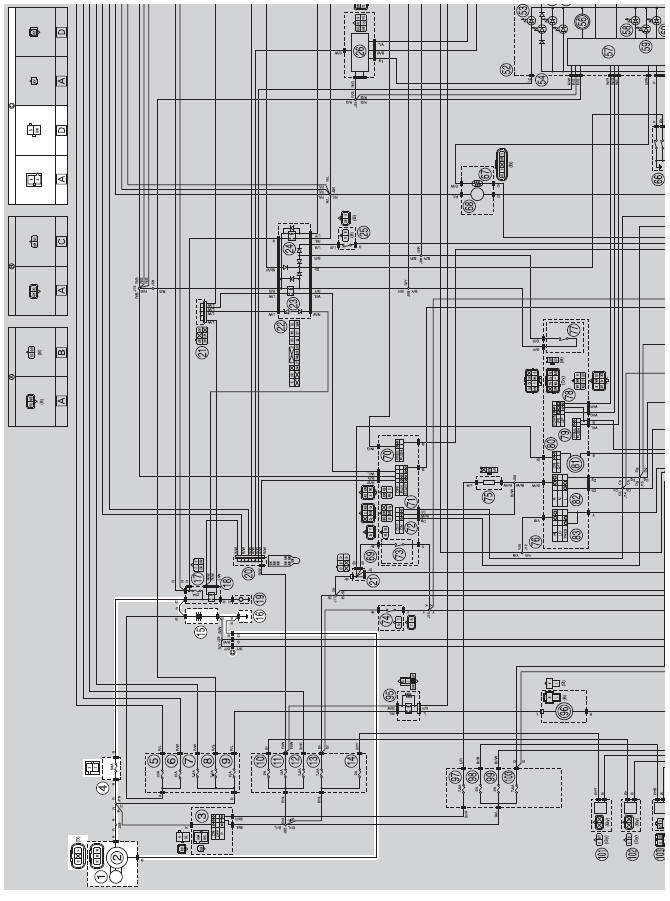

Circuit diagram

Charging system

1. AC magneto

2. Rectifier/regulator

4. Main fuse

15.Battery

16.Engine ground

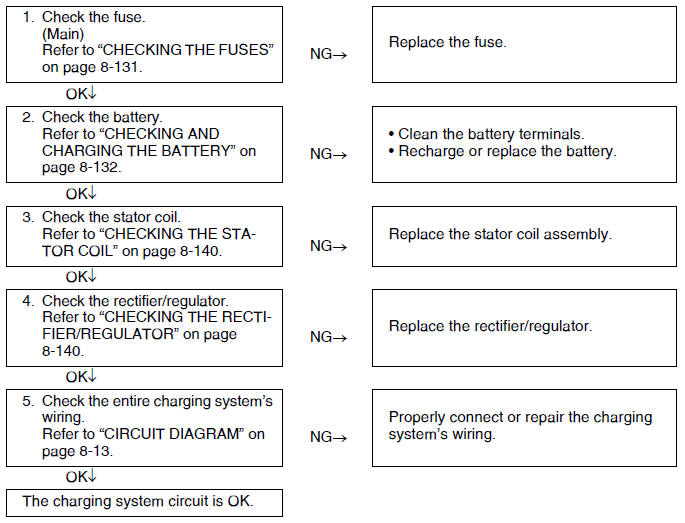

Troubleshooting

The battery is not being charged.

TIP

1. Passenger seat/Rider seat

2. Rear side cover (left)/Lower tail cover

Troubleshooting

Lighting system

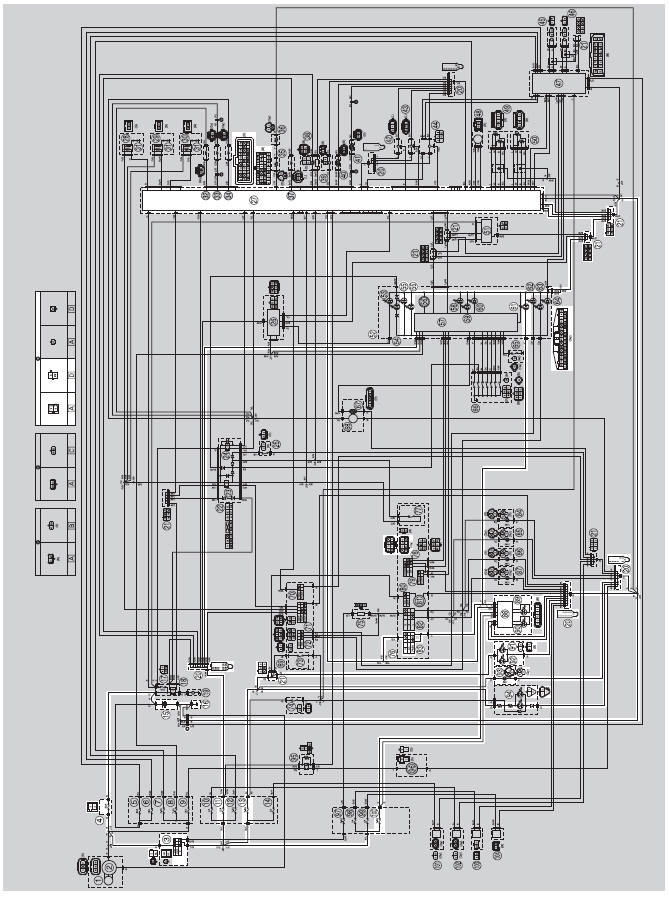

Circuit diagram

Lighting system

3. Main switch

4. Main fuse

11.Ignition fuse

13.Signaling system fuse

15.Battery

16.Engine ground

20.Joint connector

21.Joint coupler

27.ECU (engine control unit)

52.Meter assembly

55.Meter light

61.High beam indicator light

76.Handlebar switch (left)

83.Dimmer/pass switch

88.Headlight control unit

89.Headlight (high beam)

90.Headlight (low beam)

91.Auxiliary light (right)

92.Auxiliary light (left)

93.License plate light

94.Tail/brake light

100.Headlight fuse

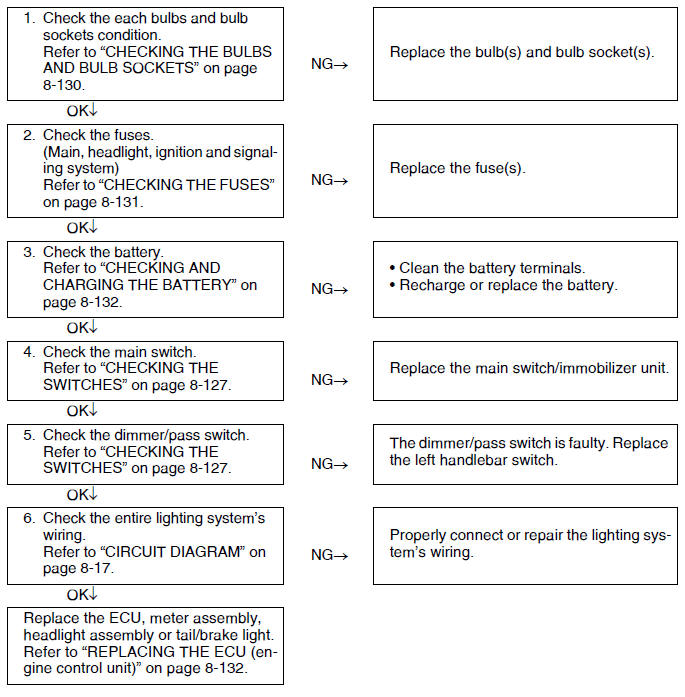

Troubleshooting

Any of the following fail to light: headlight, high beam indicator light, taillight, license light or meter light.

TIP

1. Fuel tank front cover/Front side panel/Front side cowling

2. Passenger seat/Rider seat

3. Fuel tank cover

4. Fuel tank

5. Rear side cover

6. Headlight assembly

Troubleshooting
