KTM 890 Duke R - Owner's Manual > Checking the chain for dirt

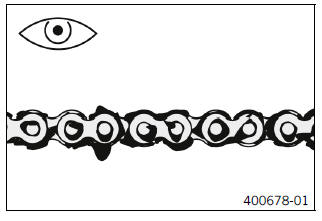

• Check the chain for heavy soiling.

If the chain is very dirty:

• Clean the chain.

Cleaning the chain

Warning

Danger of accidents Lubricants on the tires reduces the road grip.

• Remove lubricants from the tires using a suitable cleaning agent.

Danger of accidents Oil or grease on the brake discs reduces the braking effect.

• Always keep the brake discs free of oil and grease.
• Clean the brake discs with brake cleaner when necessary.

Note

Environmental hazard Hazardous substances cause environmental damage.

• Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regulations.

Info

The service life of the chain depends largely on its maintenance.

Preparatory work

• Raise the motorcycle with the rear lifting gear.

Main work

• Rinse off loose dirt with a soft jet of water.
• Remove old grease residue with chain cleaner.

Chain cleaner

• After drying, apply chain spray.

Street chain spray

Finishing work

• Remove the rear of the motorcycle from the lifting gear.

Checking the chain tension

Warning

Danger of accidents Incorrect chain tension damages components and results in accidents.

If the chain is tensioned too much, the chain, engine sprocket, rear sprocket, transmission and rear wheel bearings wear more quickly. Some components may break if overloaded.

If the chain is too loose, the chain may fall off the engine sprocket or the rear sprocket. As a result, the rear wheel locks or the engine will be damaged.

• Check the chain tension regularly.
• Set the chain tension in accordance with the specification.

Preparatory work

• Raise the motorcycle with the rear lifting gear.

Main work

• Shift the transmission to neutral position.

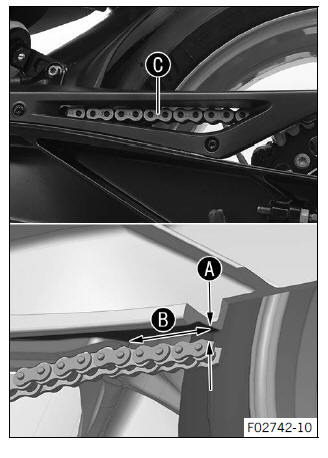

• Push the chain behind the chain sliding piece up and determine the chain tension A between the swingarm and the upper edge of the chain.

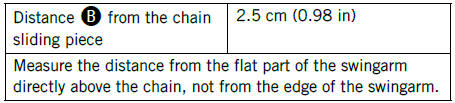

Guideline

Info

Top chain section C must be taut.

Chain wear is not always even. Repeat this measurement at different chain positions.

If the chain tension does not meet the specification:

• Adjust the chain tension.

Finishing work

• Remove the rear of the motorcycle from the lifting gear.
