KTM 890 Duke R - Owner's Manual > Checking the rear hub damping rubber pieces

Info

The engine power is transmitted from the rear sprocket to the rear wheel via the 6 damping rubber pieces.

They eventually wear out during operation. If the damping rubber pieces are not changed in time, the rear sprocket carrier and the rear hub will be damaged.

Preparatory work

• Raise the motorcycle with the rear lifting gear.
• Remove the rear wheel.

Main work

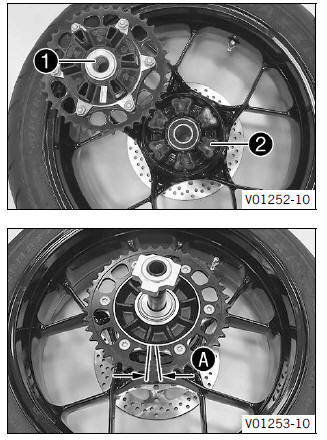

• Check bearing 1.

If the bearing is damaged or worn:

• Change the bearing of the rear sprocket carrier.

• Check the damping rubber pieces 2 of the rear hub for damage and wear.

If the damping rubber pieces of the rear hub are damaged or worn:

• Change all the damping rubber pieces of the rear hub.

• Lay the rear wheel on a workbench with the rear sprocket facing upwards and insert the wheel spindle in the hub.
• To check play A, hold the rear wheel tight and try to turn the rear sprocket with your hand.

Info

Measure the play on the outside of the rear sprocket.

If clearance A is larger than the specified value:

• Change all the damping rubber pieces of the rear hub.

Finishing work

• Install the rear wheel.
• Check the chain tension.
• Remove the rear of the motorcycle from the lifting gear.

Checking the tire condition

Warning

Danger of accidents If a tire bursts while riding, the vehicle becomes uncontrollable.

• Ensure that damaged or worn tires are replaced immediately. (Your authorized KTM workshop will be glad to help.)

Danger of crashing Different tire tread patterns on the front and rear wheel impair the handling characteristic.

Different tire tread patterns can make the vehicle significantly more difficult to control.

• Make sure that only tires with a similar tire tread pattern are fitted to the front and rear wheel.

Danger of accidents Non-approved or non-recommended tires and wheels impact the handling characteristic.

• Only use tires/wheels approved by KTM with the corresponding speed index.

Danger of accidents New tires have reduced road grip.

The contact surface on new tires is not yet roughened.

• Run in new tires with moderate riding at alternating angles.

  Running-in phase 200 km (124 mi)

Info

The type, condition, and pressure of the tires all have a major impact on the handling characteristic of the motorcycle.

Worn tires have a negative effect on handling characteristics, especially on wet surfaces.

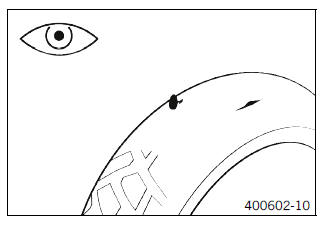

• Check the front and rear tires for cuts, run-in objects, and other damage.

If the tires have cuts, run-in objects, or other damage:

• Change the tires.

• Check the tread depth.

Info

Adhere to the legally required minimum tread depth.

If the tread depth is less than the minimum tread depth:

• Change the tires.

• Check the tire age.

Info

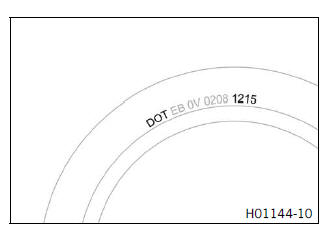

The tire date of manufacture is usually contained in the tire label and is indicated by the last four digits of the DOT number. The first two digits indicate the week of manufacture and the last two digits the year of manufacture.

KTM recommends that the tires be changed after 5 years at the latest, regardless of the actual state of wear.

If the tires are more than 5 years old:

• Change the tires.
