Peugeot Kisbee - Owner's Manual > Description of the vehicle

Description of the vehicle / Description of the vehicle

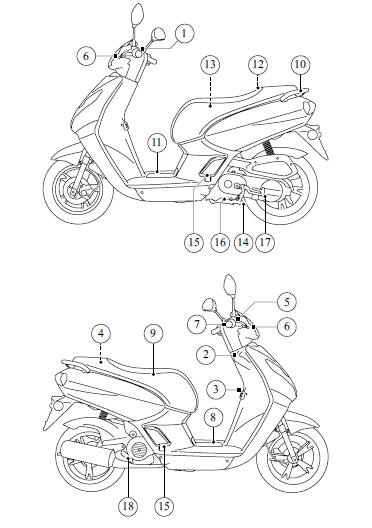

Description of the vehicle

  1. Instrument panel
  2. Ignition switch
  3.  Utility hanger
  4. Fuel tank
  5. Brake fluid level
  6. Brake levers
  7. Throttle
  8. Battery / Fuses
  9. Saddle
  10.  Grab handle
  11.  Manufacturer's plate
  12.  Chassis markings
  13.  Anti-tamper label
  14. Central stand
  15. Passenger footrests
  16. Engine number
  17.  Kick starter
  18. Engine oil level

Instruments

Instruments

  1. Speedometer

Double-scale speedometer showing kilometers and miles.

  1. Milometer
  2. Fuel gauge
  3. Direction indic ator warning light

When a flasher bulb has failed the repeater light and the other flasher light flash more quickly to alert the rider of a failure.

  1. Main beam control

Controls

Controls

  1. Horn switch
  2. Dipped lights/Headlights switch

The dipped lights/headlights switch has 3 functions:

  1. High beam
  2. Dip beam
  3. Flashing the lig hts. (Passing)
  1. Indicators switch

To indic ate a change of direction, press the switch (C):

To stop the indicators flashing, press the switch. (C)

Controls

  1. Starter switch
