Honda CBR125RW - Owner's Manual > Electrical

Battery

Your motorcycle has a maintenance-free type battery. You do not have to check the battery electrolyte level or add distilled water as you would with a conventional-type battery.

Your battery is a maintenance-free type and can be permanently damaged if the cap strip is removed.

Electrical accessories use current from the battery - even when the ignition is OFF.

Limited operation also allows the battery to discharge. If you have electrical accessories on your motorcycle - or do not ride frequently, we recommend that you charge the battery frequently (see Battery Charging).

If you do not expect to ride your motorcycle for at least two weeks, we recommend you remove the battery - or at least disconnect the battery cables (negative cable first).

If you plan to store your motorcycle, see Battery Storage.

If your battery seems weak and/or is leaking electrolyte (causing slow starting or other electrical problems), see your Honda dealer.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling.

Battery Storage

If you plan to store your motorcycle, we recommend you remove the battery and store it where it can be charged at least every 30 days to maintain its service life.

If you do not remove the battery, we recommend disconnecting the battery cables (negative cable first).

You will get the best storage results from removing the battery and slow (trickle) charging it every 30 days (see Battery Charging).

Before you remove the battery, be sure to read all the information that follows, as well as the information on the battery label.

WARNING

The battery gives off explosive hydrogen gas during normal operation.

A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.

Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance.

The battery is located in the battery box below the front seat.

Removal

1. Make sure the ignition switch is OFF.

2. Remove the front seat.

3. Remove the clip (1) and open the battery cover (2).

4. Disconnect the negative (-) terminal lead (3) from the battery first, then disconnect the positive (+) terminal lead (4).

5. Pull the battery (5) out of the battery box (6).

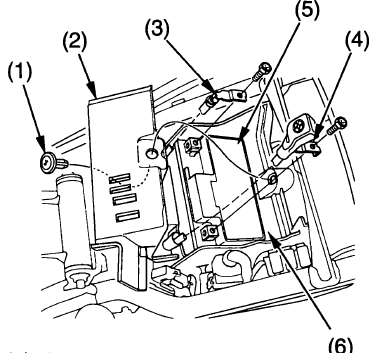

UNDER FRONT SEAT

1. clip
2. battery cover
3. negative (-) terminal lead
4. positive (+) terminal lead
5. battery
6. battery box

6. Charge the battery (see following section), unless you have been riding regularly.

7. Store your battery in an easy-to-reach location off the floor, in an area protected from freezing temperatures and direct sunlight.

8. Clean the battery box after removing the battery for storage. Dry the battery box and, if paint is missing, re-paint the area.

9. Slow charge the battery (see following section) once every 30 days.

Installation

1. Reinstall in the reverse order of removal.

Be sure to connect the positive (+) terminal first, then the negative (-) terminal.

2. Check all bolts and other fasteners are secure.

3. Install the seat.

Battery Charging

1. "trickle" charger

Be sure to read the information that came with your battery charger and follow the instructions on the battery. Improper charging may damage the battery.

We recommend using a "trickle" charger (1) for home charging. These units can be left connected for long periods without risking damage to the battery. However, do not intentionally leave the charger connected longer than the time period recommended in the charger's instructions.

Avoid using an automotive-type battery charger. An automotive charger can overheat a motorcycle battery and cause permanent damage.
