BMW G310GS - Owner's Manual > Fuses

Replace fuses

ATTENTION Jumpering of blown fuses

Risk of short-circuit and fire

• Never attempt to jumper a blown fuse.
• Always replace a defective fuse with a new fuse of the same amperage.



• Switch off the ignition.
• Place the motorcycle on its stand on firm, even ground.
• Remove seat.

• Press latch 1.
• Open the fuse box 2.
• Consult the fuse assignment diagram below and replace the defective fuse.
  • Fuse assignment.
• Close the fuse box 2 again.

  Make sure that the lock 1 has engaged.

• Press the lock 4 in on both sides.
• Remove cap 5.
• Consult the fuse assignment diagram below and replace the defective fuse.
  • Fuse assignment.
• Install cap 5. Make sure that the lock 4 on the fuse box 3 engages.

NOTICE If fuse defects recur frequently have the electric circuits checked by a specialist workshop, preferably an authorised BMW Motorrad dealer.

• Installing the seat.

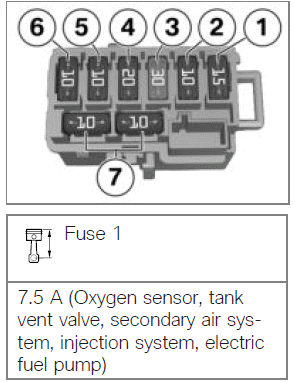

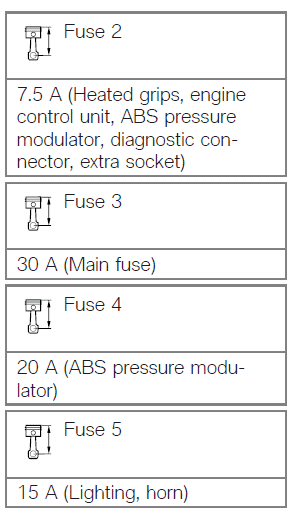

Fuse assignment

• Reserve fuses 7

Fuse 8 for radiator fan

Diagnostic connector

Disengaging diagnostic connector

CAUTION Incorrect procedure followed when loosening the diagnostic connector for the on-board diagnosis

Motorcycle experiences malfunctions

• Only have the diagnostic connector loosened by a specialist workshop or other authorised persons during your next BMW Service appointment.
• Have the work performed by appropriately trained staff.
• Refer to the vehicle manufacturer specifications.



• Remove seat.

• Press in retainers 1.

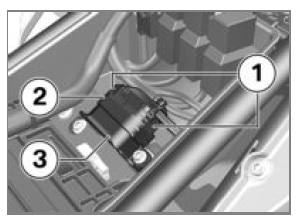

• Disengage diagnostic connector 2 from holder 3.
  • The interface to the diagnosis and information system can be connected to diagnostic connector 2.

Securing the diagnostic connector

• Disconnect the interface for the diagnosis and information system.

• Seat diagnostic connector 2 in bracket 3.
  • Retainers 1 engage with an audible click.
• Installing the seat.
