BMW G310GS - Owner's Manual > General views

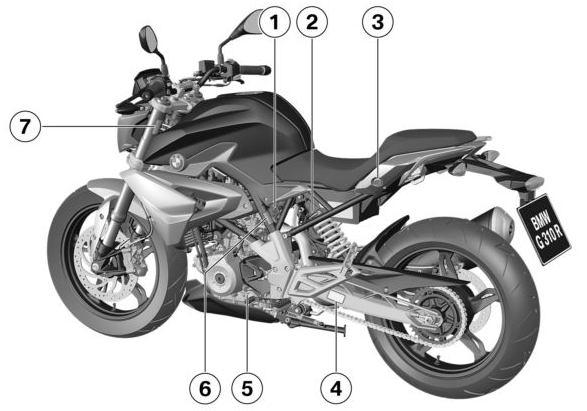

General view, left side

1. - with extra socket OA
   Power socket
2. Adjusting ring for spring preload
3. Seat lock
4. Chain settings
5. Engine oil level indicator
6. Type plate
7. Table of tyre pressures

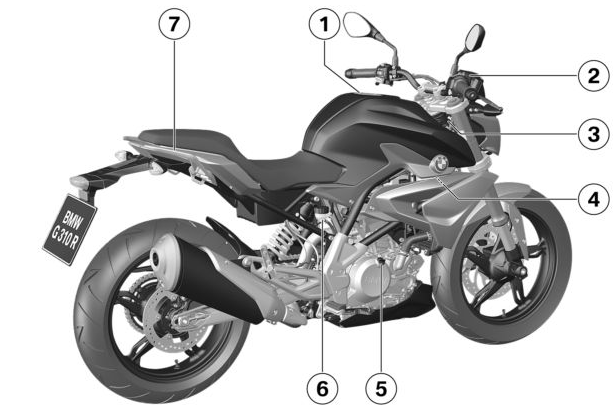

General view, right side

1. Fuel filler neck
2. Brake-fluid reservoir, front
3. Vehicle Identification Number
4. Coolant expansion tank
5. Oil filler neck
6. Brake-fluid reservoir, rear
7. Grab handle

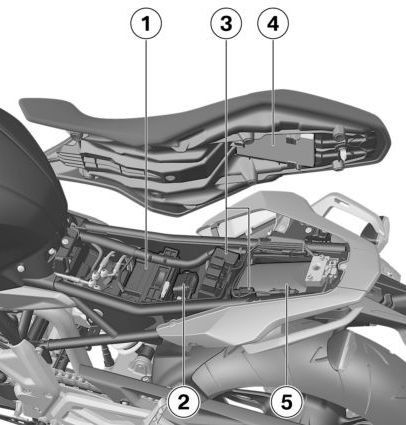

Underneath the seat

1. Battery
2. Diagnostic connector
3. Fuse box
4. Rider's Manual
5. Toolkit

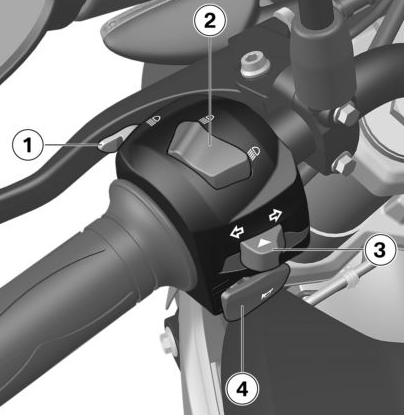

Multifunction switch, left

1. Headlight flasher
2. High beam/low-beam headlight rocker switch
3. Turn indicators
4. Horn

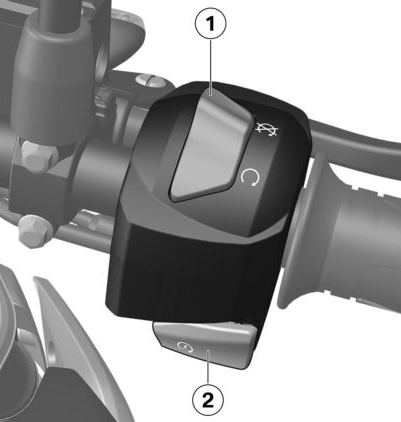

Multifunction switch, right

1. Emergency off switch (kill switch)
2. Starter button

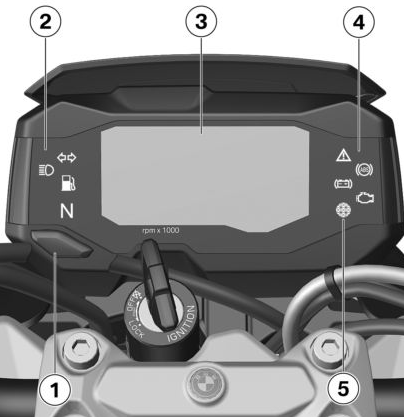

Instrument panel

1. Pushbutton
   Select display
2. Telltale lights
3. Multifunction display
4. Warning lights
5. Photosensor for the brightness control in the multifunction display rpm redline warning
