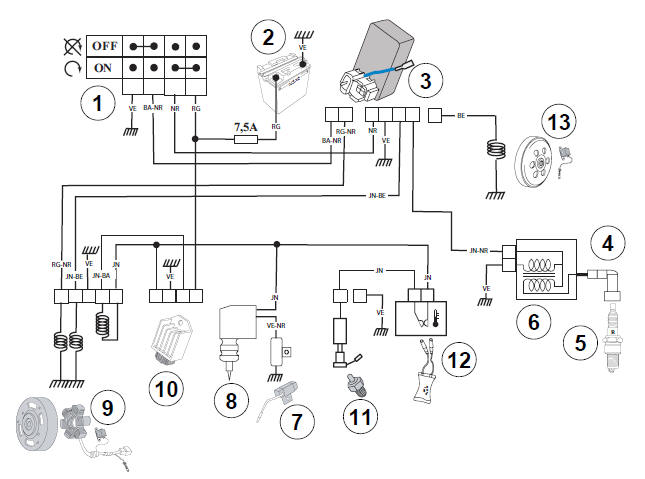

Peugeot Kisbee - Service manual > Ignition principle schematic

1. Ignition switch
2.  Battery
3.  CDI unit
4.  Spark plug socket
5.  Spark plug
6.  HT coil
7.  Starter resistor
8. Automatic starter
9.  Magneto flywheel
10. Voltage regulator
11. Carburetor heater
12. Carburettor heater thermo-switch
13. Drive sensor

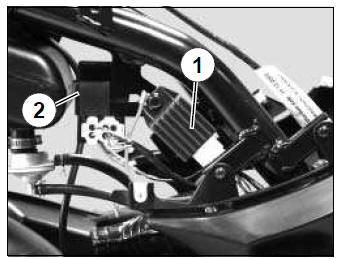

Regulator/Ignition unit

• Remove the rear cover assembly
• Removal:

• Regulator (1).
•  The ignition module (2).

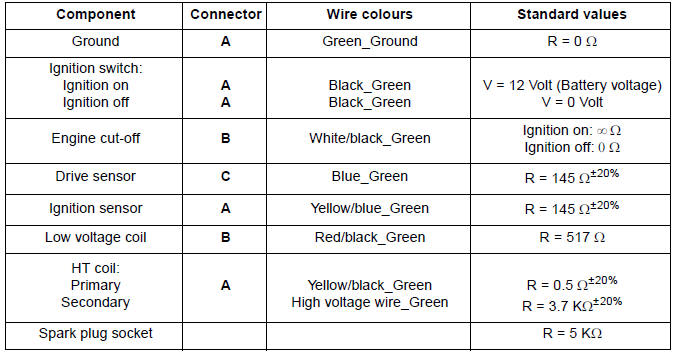

Checking the ignition system

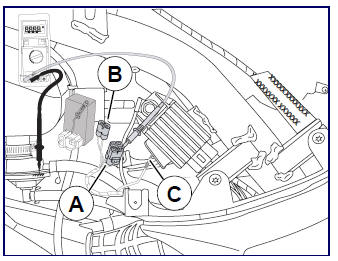

Disconnect the ignition unit and perform the measurements on the harness side (3 Connectors).

If the values are correct, replace the ignition module.

If the values are incorrect, check:

• The harness.
• The ignition switch.
• The high voltage coil.
• The magneto.
• The transmission sensor.

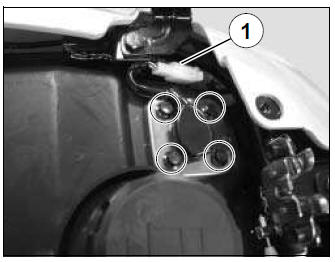

Removal of the fuel gauge

• Remove the rear storage compartment.
• Disconnect the fuel gauge (1).
• Remove the fuel gauge (4 screw) (when dismantling notice in which direction it is so that you will replace it in its initial position when reassembling).
• Remove the rubber gasket.

When re-installing, use a new gasket.

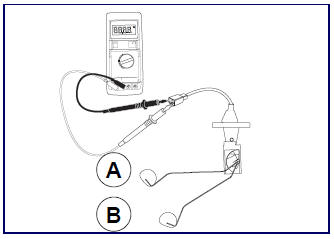

Check:

A. Full fuel tank: 8 +-20%.

B. Empty fuel tank: 95 +-20%.

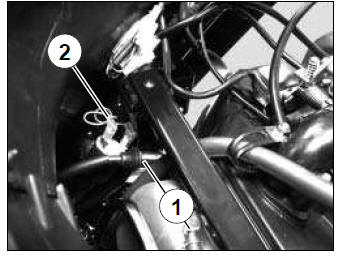

Removal of the high tension coil

• Remove the rear storage compartment.
• Disconnect the suppressor (1).
• Disconnect and remove the high voltage coil (2) (1 screw).
