Mash Dirt Track 650 - Owner's Manual > Ignition Switch

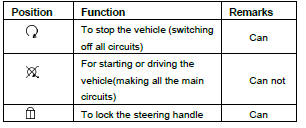

Main Switch used to Start or switch off the engine

Caution

Do not change the ignition key position when riding.

If the key is moved to the position during riding, all electrical systems will be off. While riding, do not remove the main switch key in order to avoid an accident. If necessary, stop the motorcycle prior to removing the key.

Before removing the key, make sure the handle bar is locked.

If the engine is not started after turning the key to the position, the battery will discharge over time.

Do not use sharp metal keys or key fobs to avoid scratching the upper triple clamp. Use a cloth or leather key fob.

Switches on right handlebar

The right-hand switch features the following controls

Electric s tart b utton

With key on and motorcycle in neutral, push this button to turn the engine on.

Emergency Kill Switch

The emergency kill switch is used to turn off the motorcycle if an emergency occurs while riding or if the vehicle falls over with the engine running.

Caution

• The Kill switch should only be used in emergency situations.
• During riding, turning the switch from to can be dangerous and cause damage to the engine.
• Use the kill switch to stop the engine only if necessary. Make sure that the main switch is in the off position; if it is in the run position and the engine is powered off with the kill switch, the battery is discharged.
• If the switch is in the off position, the engine cannot be started.

Switches on left handlebar

The left-hand switch features the following controls:

Hi and Low beam Operation

At this position, the headlight comes on and the light is beaming at a short distance. (The headlight will not come on if the ignition switch is not turned on.)

At this position, the headlight comes on and the light is beaming at a far distance. (The headlight will not come on if the ignition switch is not turned on.)

Directional Indicator

Use the direction indication switch when turning left or right. If the main switch is in the run position, the direction indicator will flash when slid to the left or right. Pressing the center of the direction indicator will stop the turn signal from flashing.

Caution

• When finished turning, the direction indicator switch will not be back to original position automatically, please switch it manually.
• Driving with light on will obstruct traffic.

Horn b utton

When the main switch is in the "on" position, if you press the horn button, it will emit a loud sound.
