Husqvarna 401 Vitpilen - Owner's Manual > Installing the license plate holder

• Position the license plate holder.

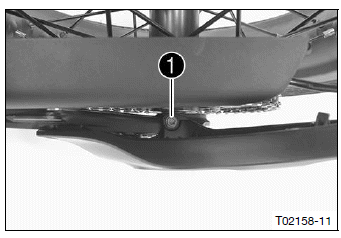

• Mount screw 1 but do not tighten yet.

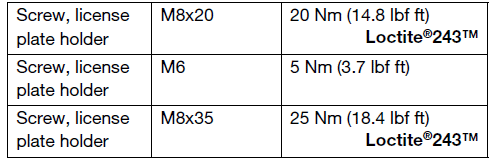

Guideline

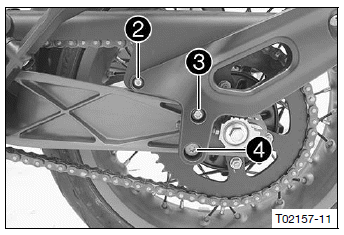

• Mount screw 2 but do not tighten yet.

Guideline

• Mount screw 3 but do not tighten yet.

Guideline

• Mount and tighten screw 4.

Guideline

• Tighten screws 1, 2 , and 3.

Guideline

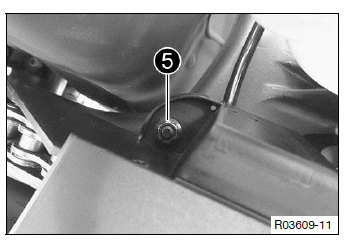

• Mount and tighten nut 5.

Guideline

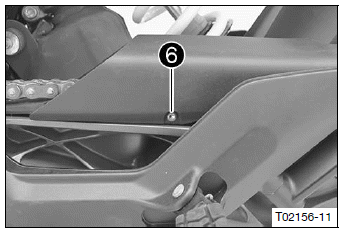

• Mount and tighten screw 6.

Guideline

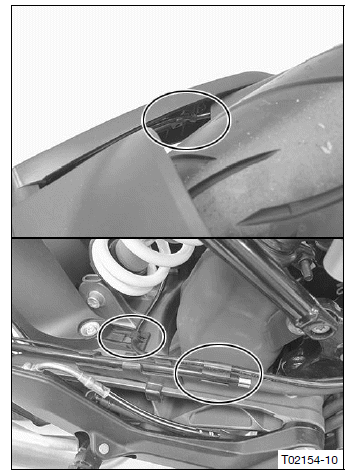

• Route the cable without tension.

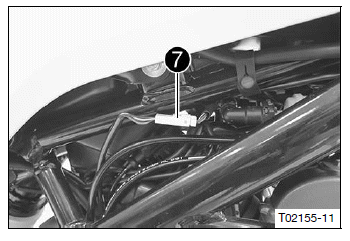

• Join plug-in connector 7.

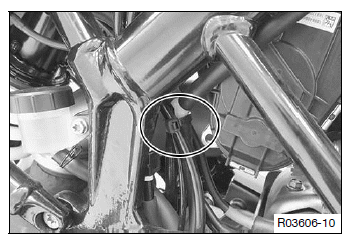

• Mount new cable ties.

• Secure the cable in the holders.

Checking for chain dirt accumulation

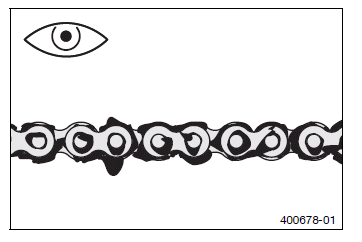

• Check the chain for coarse dirt accumulation.

If the chain is very dirty:

• Clean the chain.

Cleaning the chain

Warning

Danger of accidents Oil or grease on the tires reduces the road grip.

• Remove the lubricant from the tires using a suitable cleaning agent.

Danger of accidents Oil or grease on the brake discs reduces the braking effect.

• Always keep the brake discs free of oil and grease.
• Clean the brake discs with brake cleaner when necessary.

Note

Environmental hazard Hazardous substances cause environmental damage.

• Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regulations.

Info

The service life of the chain depends largely on its maintenance.

Preparatory work

• Raise the motorcycle with the rear lifting gear.

Main work

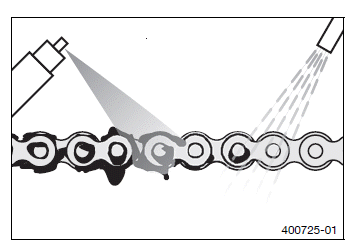

• Clean the chain regularly.
• Rinse off loose dirt with a soft jet of water.
• Remove old grease remains with chain cleaner.

Chain cleaner

• After drying, apply chain spray.

Chain lube for road use

Finishing work

• Remove the rear of the motorcycle from the lifting gear.
