Honda CBR125RW - Owner's Manual > Maintenance Record

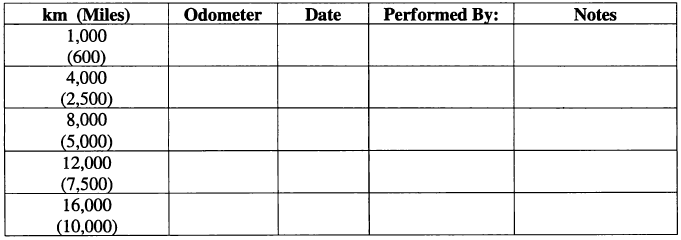

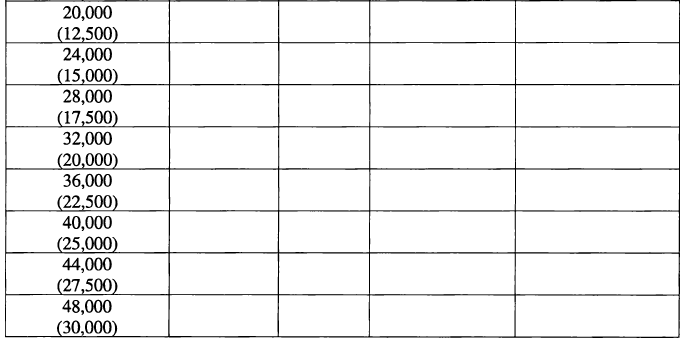

Keeping an accurate maintenance record will help ensure that your motorcycle is properly maintained. Retain detailed receipts to verify the maintenance was performed. If the motorcycle is sold, these receipts should be transferred with the motorcycle to the new owner.

Make sure whoever performs the maintenance completes this record. All scheduled maintenance, including the 1,000 km (600 mile) initial maintenance, is considered a normal owner operating cost and will be charged for by your dealer. Use the space under Notes to record anything you want to remind yourself about or mention to your dealer.

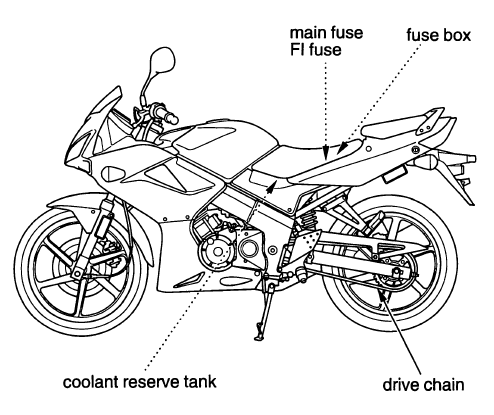

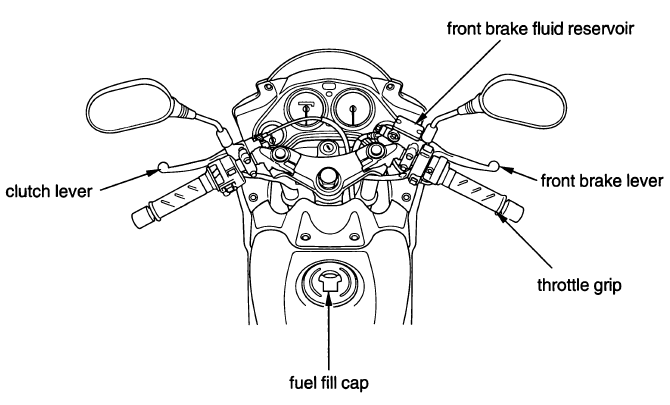

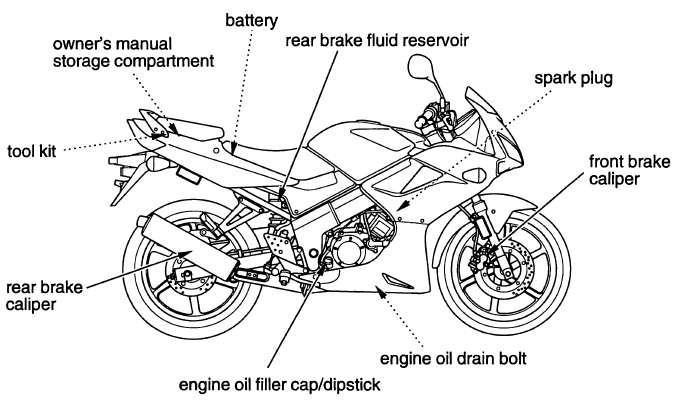

Maintenance Component Locations

• clutch lever
• front brake fluid reservoir
• front brake lever
• throttle grip
• fuel fill cap

• rear brake fluid reservoir
• spark plug
• front brake caliper
• engine oil drain bolt
• engine oil filler cap/dipstick
• rear brake caliper
• tool kit
• owner's manual storage compartment

• drive chain
• coolant reserve tank
• fuse box
• main fuse FI fuse

Tool Kit

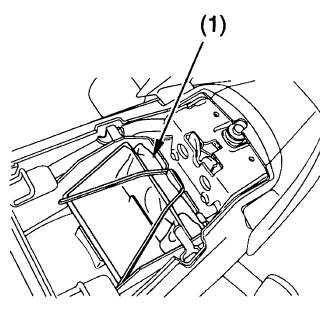

The tool kit (1) is stored under the rear seat.

An optional, larger tool kit may be available. Check with your Honda dealer's parts department.

UNDER REAR SEAT

1. tool kit

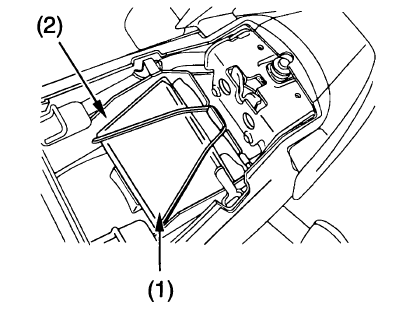

Owner's Manual Storage

Your motorcycle provides storage for the owner's manual so you'll have it with you for easy reference. Store your owner's manual (and other documents) in the plastic storage bag (1) in the owner's manual storage compartment (2) under the rear seat.

Be careful not to flood this area when washing your motorcycle.

UNDER REAR SEAT

1. storage bag
2. owner's manual storage compartment

Seat Removal

The seat must be removed for battery maintenance and fuse maintenance, to use the helmet holder, or to access the tool kit and owner's manual.

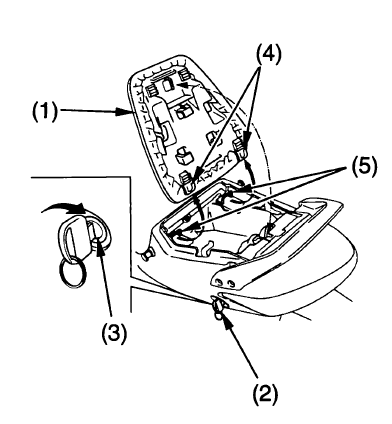

Rear Seat Removal

To remove the rear seat (1), insert the ignition key (2) into the seat lock (3).

Turn it clockwise, then pull the rear seat up and back.

To install the rear seat, insert the prongs (4) into the seat hooks (5), and then push down on the rear of the rear seat.

1. rear seat
2. ignition key
3. seat lock
4. prongs
5. seat hooks

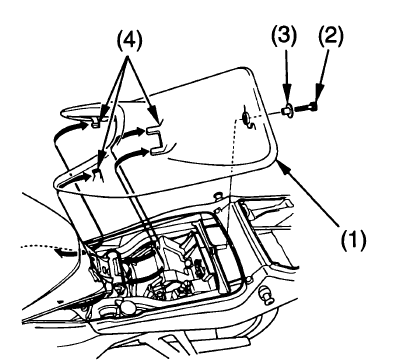

Front Seat Removal

To remove the front seat (1), remove the rear seat. Remove the mounting bolt (2) and collar (3), and then pull the seat up and back.

To install the front seat, insert the tabs (4) into the recess under the frame and tighten the mounting bolt securely.

1. front seat
2. mounting bolt
3. collar
4. tabs
