Peugeot Kisbee - Service manual > Pre-assembly checks

Clean all the parts with a degreasing agent:

• Biosane type ref. 754748.
• Or use an ultrasonic cleaning tank.

Check the condition of the fork tube, there shall be no corrosion or impact marks, and the tube shall be perfectly straight and clean.

Reassembly

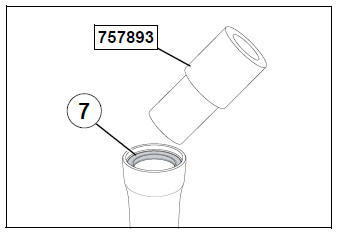

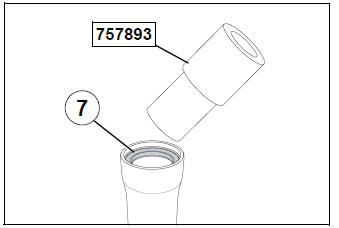

• Fit a new lightly greased lip seal using push tool P/N 757893 (7).
• Install the retaining ring.
• Install the dust cover.

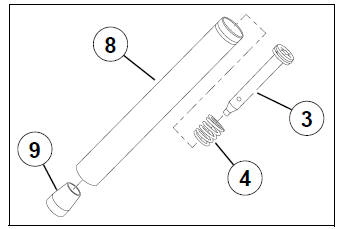

• Install the expansion stop spring (4).
• Install the calibrated hydraulic tube (3).
• Install the compression stop cone (9) on the calibrated hydraulic tube.

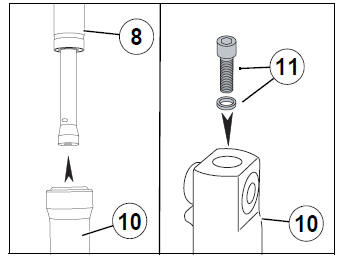

• Fit the fork sleeve (10) to the slightly oiled fork tube (8).
• Install the stanchion assembly screw and its seal (11).

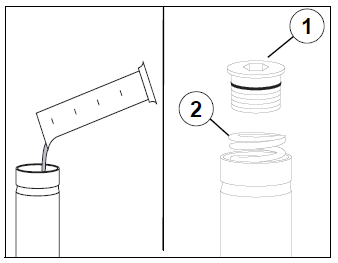

• Pour 0.035 l SAE10W hydraulic oil into the fork tube.
• Fit the spring (2) with the close coils upwards.
• Fit and screw the cap home (1).

Tightening torque: 18-20 Nm.

• Fit the fork tubes into the fork triple clamps.

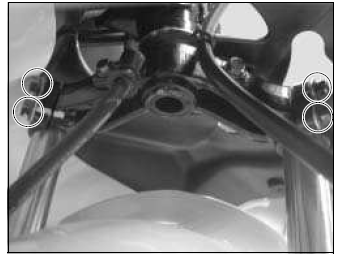

• Fit and tighten the (4) clamping bolts.

Tightening torque: 30-40 Nm.

• Re-install all the fork equipment.
• Refit the fairings in reverse order to removal.
