Husqvarna 401 Vitpilen - Owner's Manual > Raising the motorcycle with the rear lifting gear

Note

Danger of damage The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

Condition

Rear wheel is not removed.

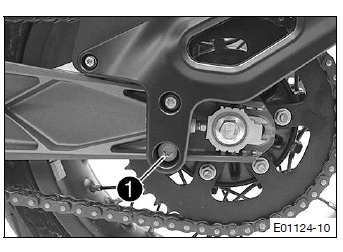

• Remove screw1.

• Mount the supports of the lifting gear.

Guideline

Screw on left side: M10x70

• Insert the adapter in the rear lifting gear.

Universal V adapter with bushings (61029955244)

Rear wheel work stand (6932996510033)

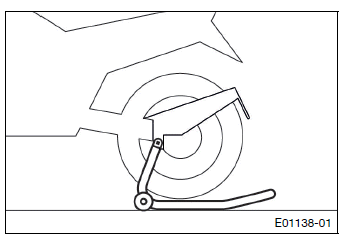

• Stand the motorcycle upright, align the lifting gear with the swingarm and the adapters, and lift the motorcycle.

Condition

Rear wheel is removed.

• Remove the license plate holder.
• Mount the supports of the lifting gear.
• Insert the adapter in the rear lifting gear.

Universal V adapter with bushings (61029955244)

Rear wheel work stand (6932996510033)

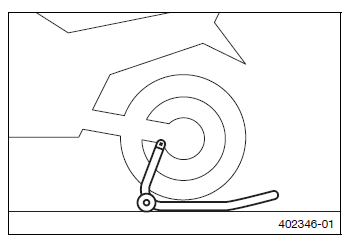

• Stand the motorcycle upright, align the lifting gear with the swingarm and the adapters, and lift the motorcycle.

Removing the rear of the motorcycle from the lifting gear

Note

Danger of damage The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

Condition

Rear wheel was not removed.

• Secure the motorcycle against falling over.

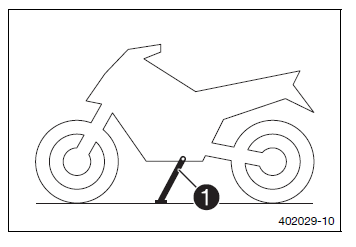

• Remove the rear lifting gear and lean the vehicle on side stand 1.
• Remove bushings kit.

Info

Do not ride with mounted bushings, as the bushings can collide with the main silencer.

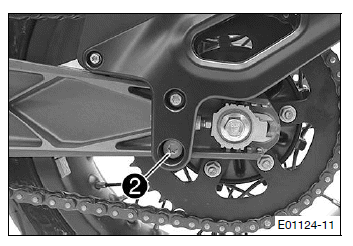

• Mount and tighten screw 2.

Guideline

Condition

Rear wheel was removed.

• Secure the motorcycle against falling over.

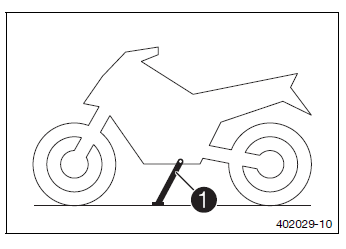

• Remove the rear lifting gear and lean the vehicle on side stand 1.
• Remove bushings kit.

Info

Do not ride with mounted bushings, as the bushings can collide with the main silencer.

• Install the license plate holder.
