KTM 890 Duke R - Owner's Manual > Raising the motorcycle with the rear lifting gear

Note

Danger of damage The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

• Mount the supports of the lifting gear.
• Insert the adapter in the rear lifting gear.

Retaining adapter (63529955000)
Rear wheel work stand (69329955000)

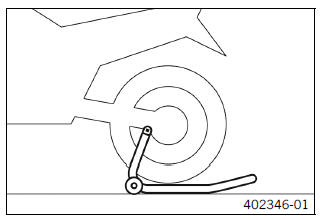

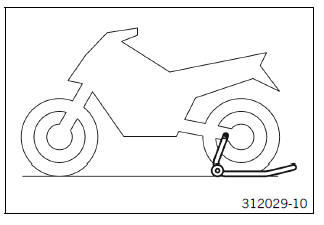

• Stand the motorcycle upright, align the lifting gear to the swingarm and the adapters, and raise the motorcycle.

Removing the rear of the motorcycle from the lifting gear

Note

Danger of damage The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

• Secure the motorcycle against falling over.

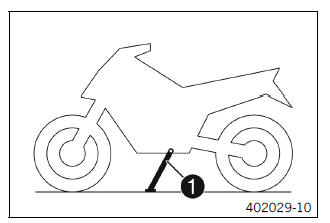

• Remove the rear lifting gear and lean the vehicle on side stand 1.
• Remove the retaining adapter from the link fork.

Lifting the motorcycle with the front lifting gear

Note

Danger of damage The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

Preparatory work

• Raise the motorcycle with the rear lifting gear.

Main work

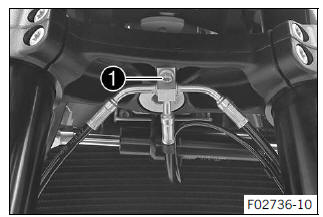

• Remove screw 1.

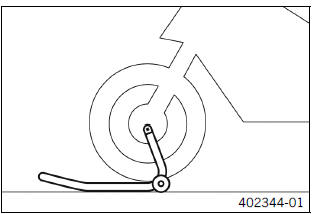

• Move the handlebar to the straight-ahead position. Align the lifting gear at the front with the adapters to the fork legs.

Front wheel work stand, small (61129965100)

Info

Always raise the motorcycle at the rear first.

Pay attention to the brake lines.

• Lift the motorcycle at the front.

Taking the motorcycle off the front lifting gear

Note

Danger of damage The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

• Secure the motorcycle against falling over.
• Remove the front lifting gear.

• Position the brake line.

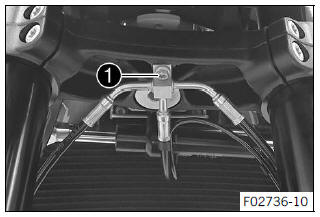

• Mount and tighten screw 1.

Guideline
