KTM 890 Duke R - Owner's Manual > Refueling

Riding instructions / Refueling

Danger

Fire hazard Fuel is highly flammable.

The fuel in the fuel tank expands when warm and can escape if overfilled.

Do not fuel the vehicle in the vicinity of open flames.
Switch off the engine for refueling.
Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
If any fuel is spilled, wipe it off immediately.

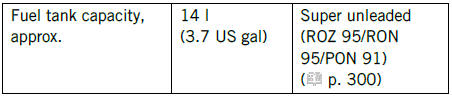

Observe the specifications for refueling.

Warning

Danger of poisoning Fuel is poisonous and a health hazard.

Avoid skin, eye and clothing contact with fuel.
Immediately consult a doctor if you swallow fuel.
Do not inhale fuel vapors.
In case of skin contact, rinse the affected area with plenty of water.
Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
Change your clothing in case of fuel spills on them.

Note

Material damage Inadequate fuel quality causes the fuel filter to quickly become clogged.

In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel system.

Refuel only with clean fuel that meets the specified standards. (Your authorized KTM workshop will be glad to help.)

Note

Environmental hazard Improper handling of fuel is a danger to the environment.

Do not allow fuel to enter the groundwater, the soil, or the sewage system.

RIDING INSTRUCTIONS

Switch off the engine.
Open fuel tank filler cap.

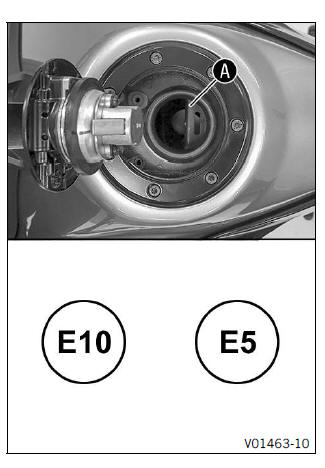

Fill the fuel tank with fuel up to the lower edge A of the filler neck.

RIDING INSTRUCTIONS

Close the fuel tank filler cap.

Service schedule

Additional information

Any further work that results from the compulsory work or from the recommended work must be ordered separately and invoiced separately.

Different service intervals may apply in your country, depending on the local operating conditions.

Individual service intervals and scopes may change in the course of technical developments. The most up-to-date service schedule can always be found on KTM Dealer.net. Your authorized KTM dealer will be happy to advise you.

Required work

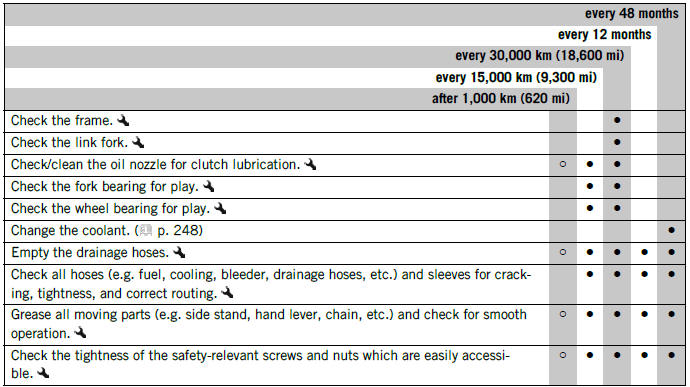

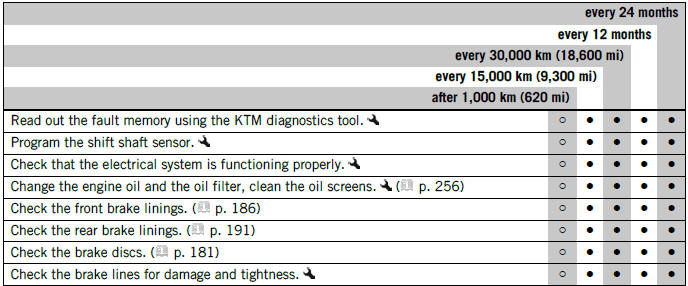

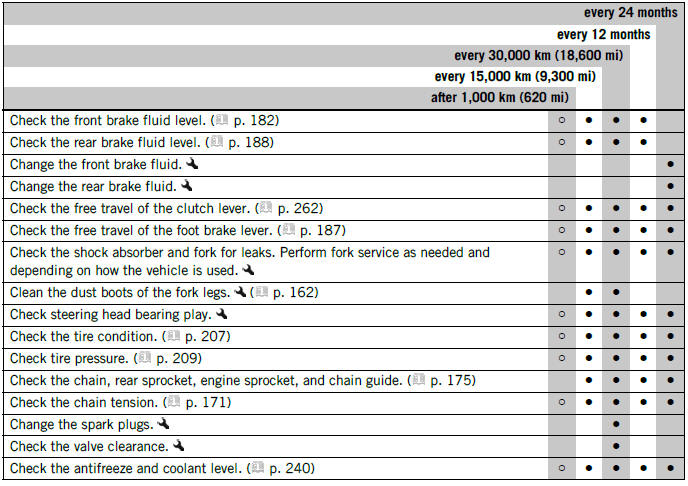

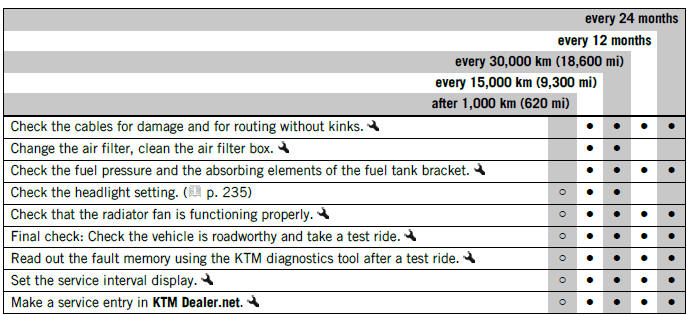

Service schedule
