Yamaha Tracer MT09TRA - Service manual > Self-diagnostic function and diagnostic code table

Troubleshooting / Self-diagnostic function and diagnostic code table

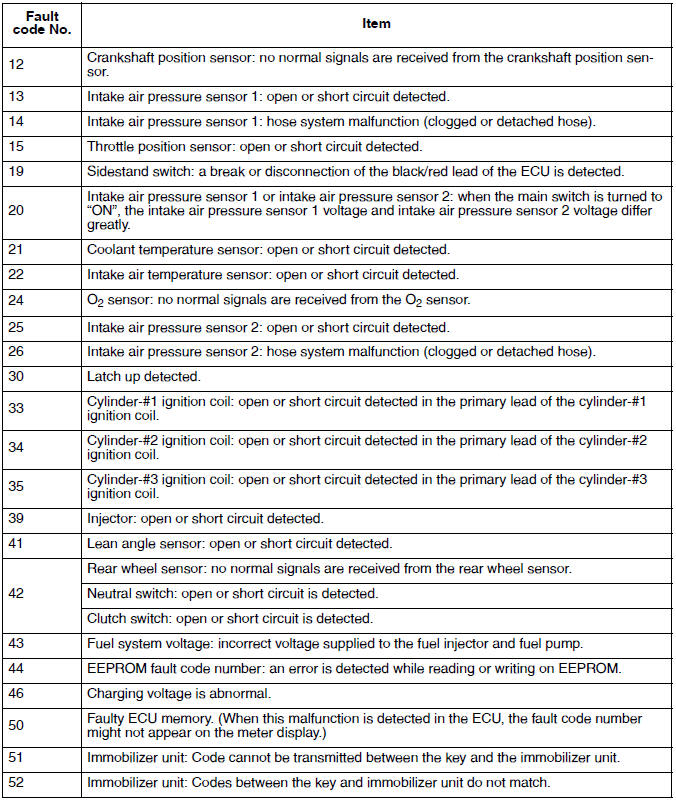

Self-diagnostic function table

TIP

Self-diagnostic function table

Self-diagnostic function table

Communication error with the meter

Communication error with the meter

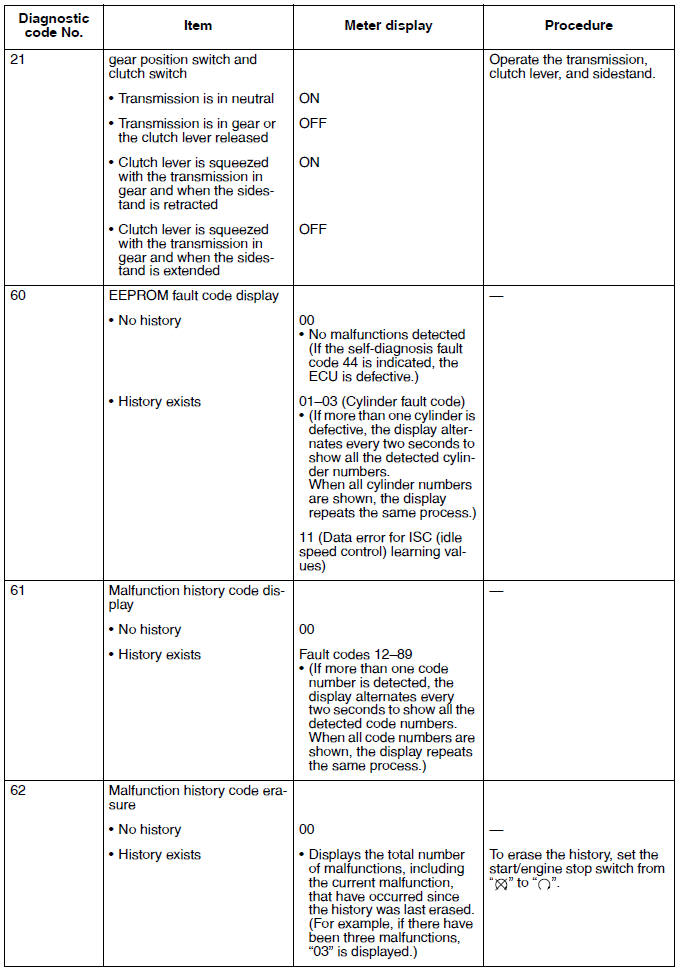

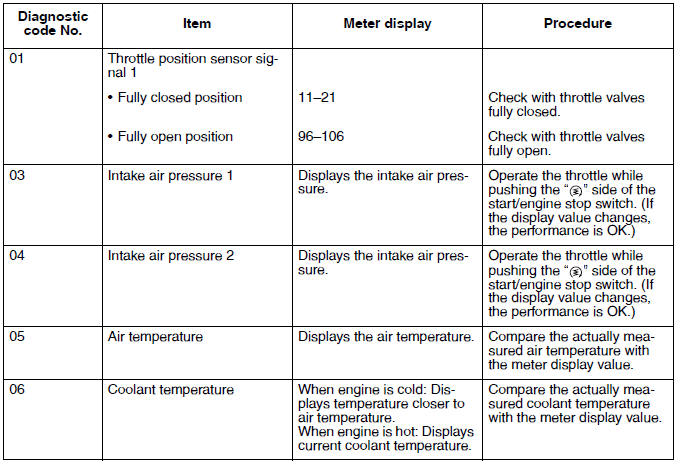

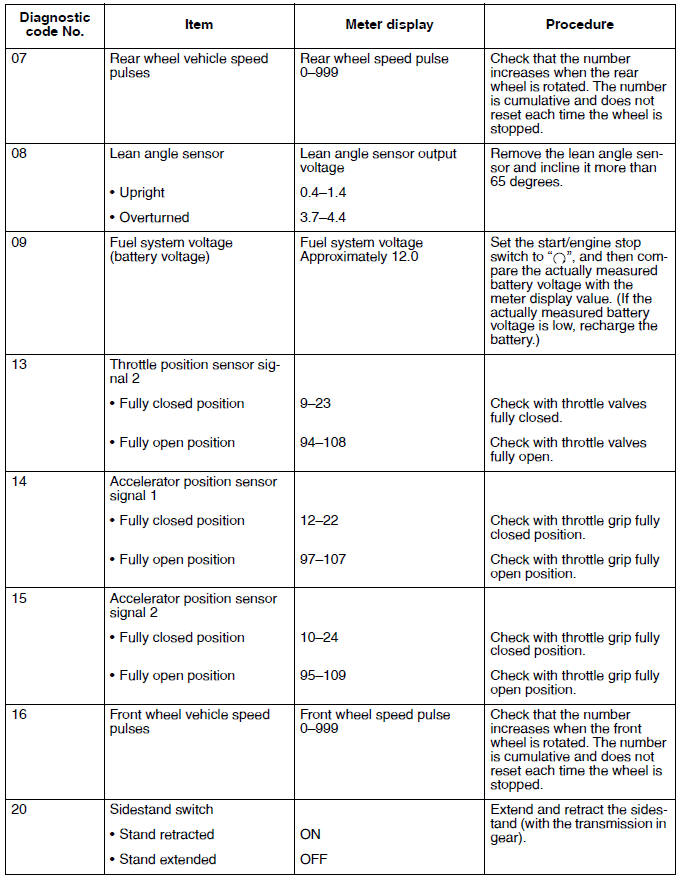

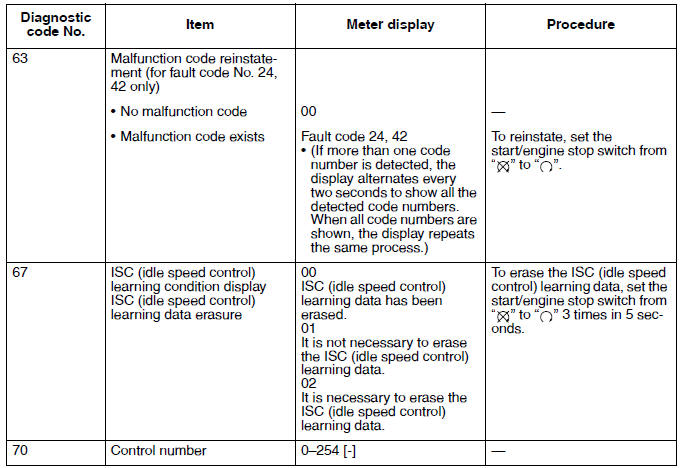

Diagnostic code: sensor operation table

Diagnostic code: sensor operation table

Diagnostic code: sensor operation table

Diagnostic code: sensor operation table

Diagnostic code: sensor operation table

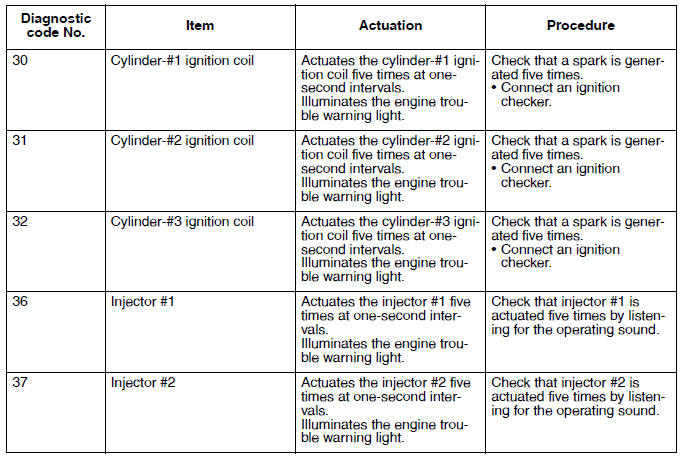

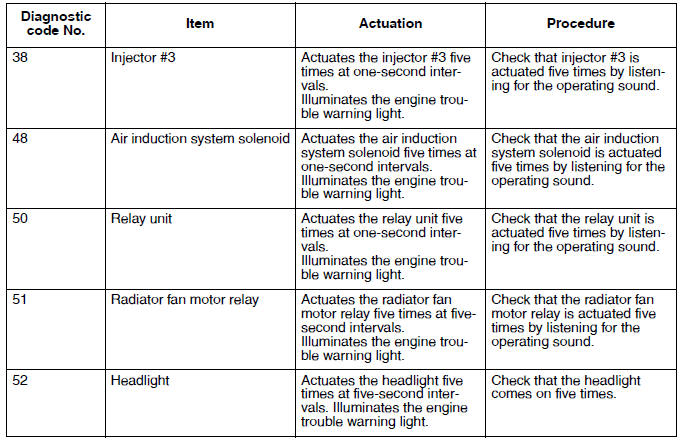

Diagnostic code: actuator operation table

Diagnostic code: actuator operation table

Diagnostic code: actuator operation table

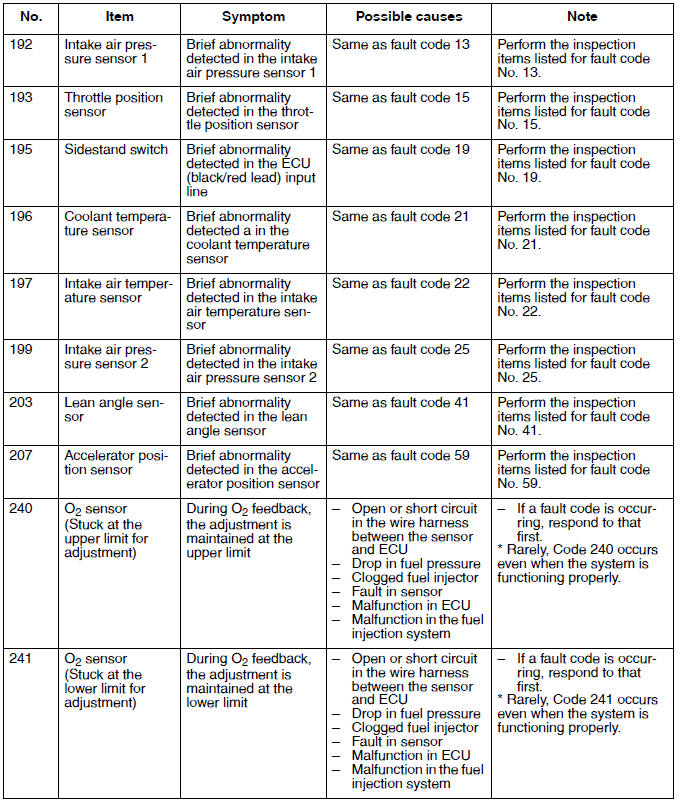

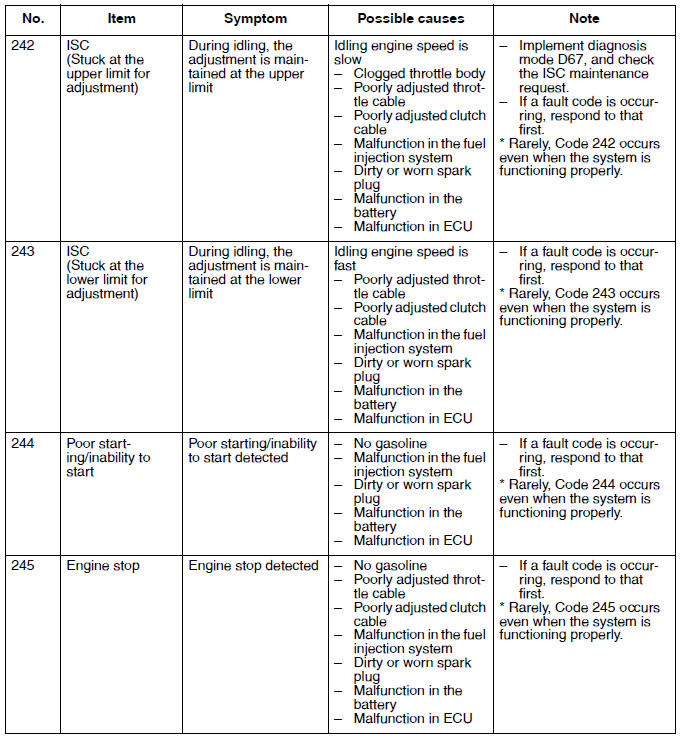

Event code table

TIP

The event code numbers listed below cannot be displayed on the meter. To display the event code numbers, use the Yamaha diagnostic tool.

Event code table

Event code table

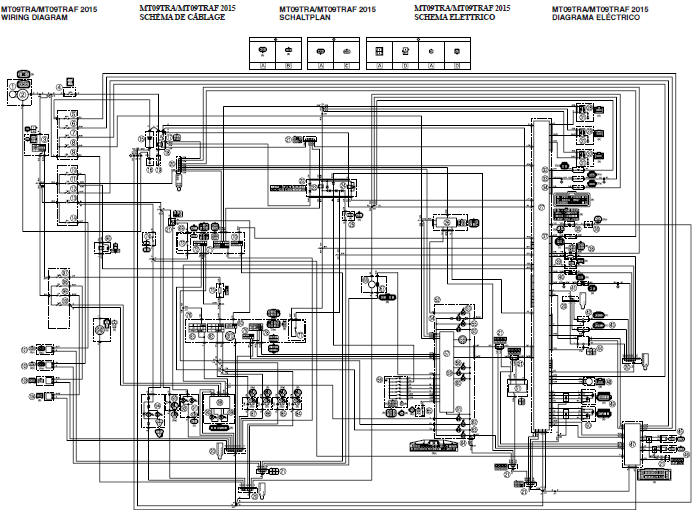

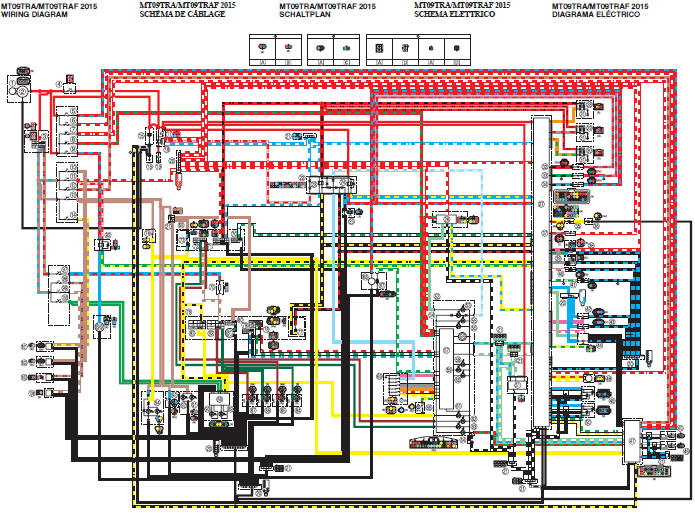

Wiring diagram

MT09TRA/MT09TRAF 2015

  1. AC magneto
  2. Rectifier/regulator
  3. Main switch
  4. Main fuse
  5. ABS motor fuse
  6. ABS solenoid fuse
  7. Electric throttle valve fuse
  8. Backup fuse
  9. Radiator fan motor fuse
  10. Auxiliary fuse 2
  11. Ignition fuse
  12. ABS control unit fuse
  13. Signaling system fuse
  14. Auxiliary fuse 1
  15. Battery
  16. Engine ground
  17. Fuel injection system fuse
  18. Starter relay
  19. Starter motor
  20. Joint connector
  21. Joint coupler
  22. Relay unit
  23. Starting circuit cut-off relay
  24. Fuel pump relay
  25. Sidestand switch
  26. Immobilizer unit
  27. ECU (engine control unit)
  28. Ignition coil #1
  29. Ignition coil #2
  30. Ignition coil #3
  31. Spark plug
  32. Injector #1
  33. Injector #2
  34. Injector #3
  35. Grip warmer (left) (OPTION)
  36. Grip warmer (right) (OPTION)
  37. Air induction system solenoid
  38. O2 sensor
  39. Crankshaft position sensor
  40. Intake air temperature sensor
  41. Coolant temperature sensor
  42. Intake air pressure sensor 1
  43. Intake air pressure sensor 2
  44. Lean angle sensor
  45. Front wheel sensor
  46. Rear wheel sensor
  47. ABS ECU (electronic control unit)
  48. Throttle servo motor
  49. Accelerator position sensor
  50. Throttle position sensor
  51. Yamaha diagnostic tool coupler
  52. Meter assembly
  53.  Immobilizer system indicator light
  54. Neutral indicator light
  55. Meter light
  56. Tachometer
  57. Multi-function meter
  58. Oil level warning light
  59. Engine trouble warning light
  60. Traction control system indicator/ warning light
  61. High beam indicator light
  62. Turn signal indicator light (left)
  63. Turn signal indicator light (right)
  64. ABS warning light
  65. Oil level switch
  66. Gear position switch
  67. Fuel sender
  68. Fuel pump
  69. Handlebar switch (right)
  70. Drive mode switch
  71. Start/engine stop switch
  72. Hazard switch
  73. Front brake light switch
  74. Rear brake light switch
  75. Turn signal/hazard relay
  76. Handlebar switch (left)
  77. Clutch switch
  78. Select switch
  79. Menu switch
  80. Horn switch
  81. Horn
  82. Turn signal switch
  83. Dimmer/pass switch
  84. Rear turn signal light (right)
  85. Rear turn signal light (left)
  86. Front turn signal light (right)
  87. Front turn signal light (left)
  88. Headlight control unit
  89. Headlight (high beam)
  90. Headlight (low beam)
  91. Auxiliary light (right)
  92. Auxiliary light (left)
  93. License plate light
  94. Tail/brake light
  95. Radiator fan motor relay
  96. Radiator fan motor
  97. Parking lighting fuse
  98. Auxiliary DC jack fuse 1
  99. Auxiliary DC jack fuse 2
  100. Headlight fuse
  101. Auxiliary DC outlet 1
  102. Auxiliary DC outlet 2
  103. Auxiliary DC jack
  104. Auxiliary DC jack (OPTION)

A. Wire harness

B. Sub-wire harness (Injector #2)

C. Sub-wire harness (Coolant temperature sensor)

D. Negative

COLOR CODE

B Black

Br Brown

Ch Chocolate

Dg Dark green

G Green

Gy Gray

L Blue

Lg Light green

O Orange

P Pink

R Red

Sb Sky blue

W White

Y Yellow

B/L Black/Blue

B/R Black/Red

B/W Black/White

B/Y Black/Yellow

Br/B Brown/Black

Br/L Brown/Blue

Br/R Brown/Red

Br/W Brown/White

Br/Y Brown/Yellow

G/B Green/Black

G/R Green/Red

G/W Green/White

G/Y Green/Yellow

Gy/G Gray/Green

Gy/R Gray/Red

L/B Blue/Black

L/R Blue/Red

L/W Blue/White

L/Y Blue/Yellow

Lg/L Light green/Blue

Lg/W Light green/White

O/G Orange/Green

P/B Pink/Black

P/W Pink/White

R/B Red/Black

R/G Red/Green

R/L Red/Blue

R/W Red/White

Sb/W Sky blue/White

W/G White/Green

W/L White/Blue

/R White/Red

W/Y White/Yellow

Y/B Yellow/Black

Y/G Yellow/Green

Y/L Yellow/Blue

Y/R Yellow/Red

Y/W Yellow/White

Wiring diagram

Wiring diagram
