Troubleshooting chart

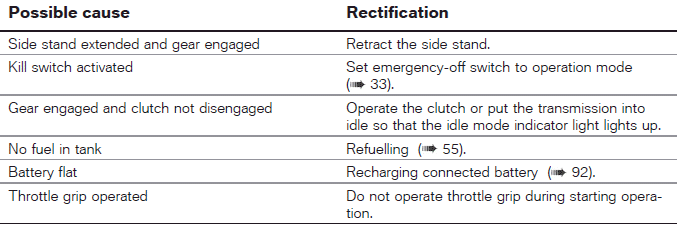

The engine does not start.

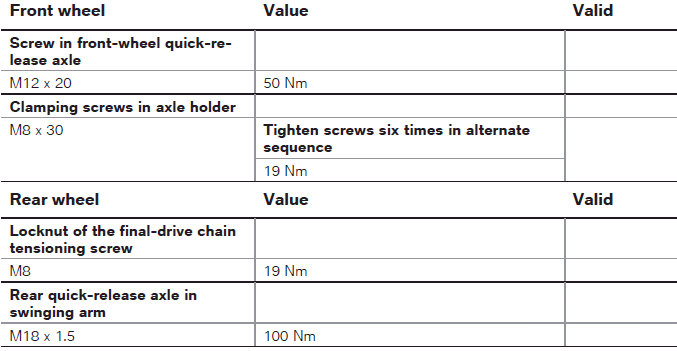

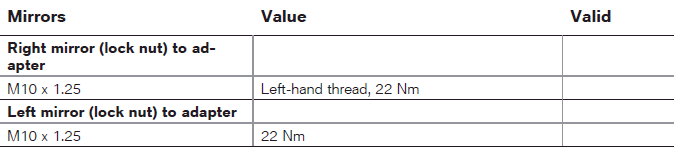

Screw connections

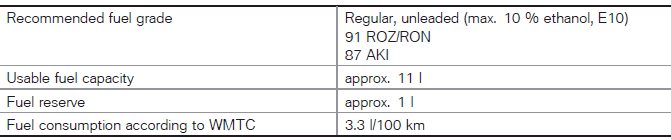

Fuel

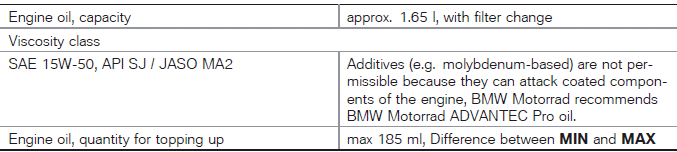

Engine oil

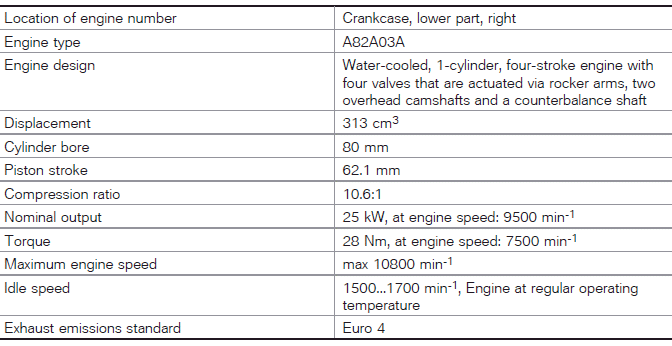

Engine

Clutch

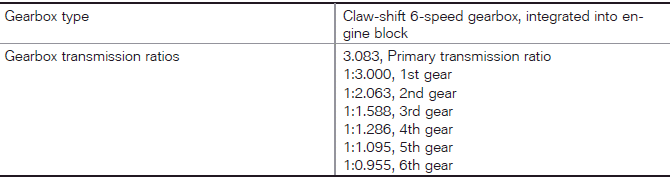

Transmission

Rear-wheel drive

Frame

Chassis and suspension

Front wheel

Rear wheel

Brakes

Front wheel

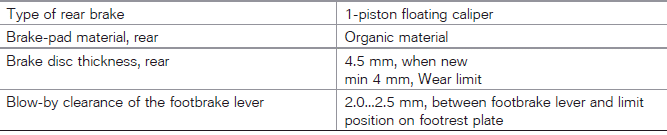

Rear wheel

Wheels and tyres

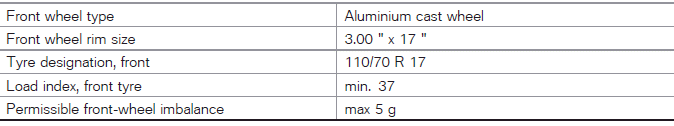

Front wheel

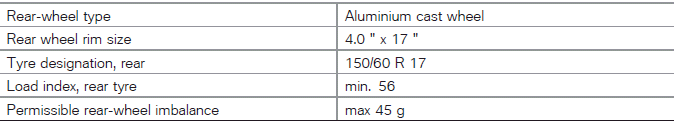

Rear wheel

Tyre pressure

Electrical system

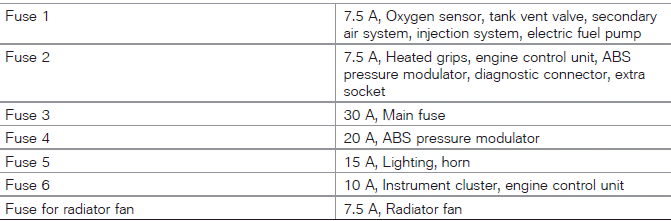

Fuses

Battery

Spark plugs

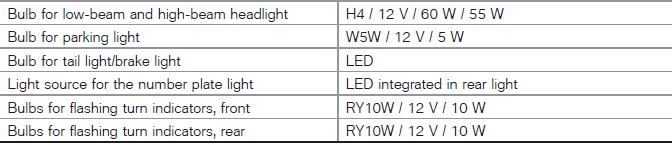

Lighting

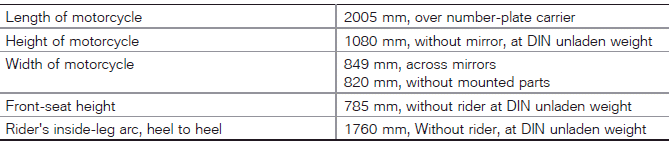

Dimensions

Weights

Riding specifications

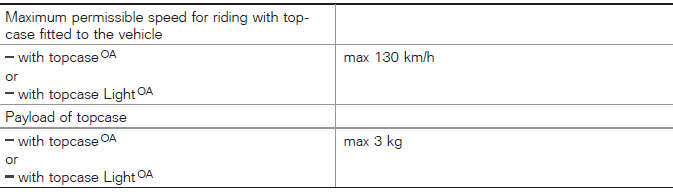

Accessories

Service

BMW Motorrad Service

BMW Motorrad has an extensive network of dealerships in place to look after you and your motorcycle in more than 100 countries.

Authorised BMW Motorrad dealerships have the technical information and the technical know-how to carry out reliably all maintenance and repair work on your BMW.

You can locate your nearest authorised BMW Motorrad dealership by visiting our website:

bmw-motorrad.com

WARNING Maintenance and repair work not in compliance with correct procedure

Risk of accident due to consequential damage

• BMW Motorrad recommends having work of this nature carried out on the vehicle by a specialist workshop, preferably an authorised BMW Motorrad dealer.

In order to help ensure that your BMW is always in optimum condition, BMW Motorrad recommends compliance with the maintenance intervals specified for your motorcycle.

Have all maintenance and repair work that is carried out confirmed in the "Service" chapter in this manual. For generous treatment of claims submitted after the warranty period has expired, evidence of regular maintenance is essential.

Your authorised BMW Motorrad dealer can provide information on BMW services and the work undertaken as part of each service.

BMW Motorrad Mobility services

As the owner of a new BMW motorcycle, in the event of a breakdown you can benefit from the protection afforded by the various BMW Motorrad mobility services (e.g. BMW Mobile Service, breakdown service, vehicle recovery service).

Your authorised BMW Motorrad dealer will be happy provide information about the mobility services available to you.

Maintenance work

BMW pre-delivery check

Your authorised BMW Motorrad dealer conducts the BMW pre-delivery check before handing over the vehicle to you.

BMW Running-in check

BMW Service

The BMW Service is carried out once a year; the extent of servicing can vary, depending on the age of the vehicle and the distance it has covered. Your authorised BMW Motorrad dealer confirms that the service work has been carried out and enters the date when the next service will be due.

Riders who cover long distances in a year might have to bring in their vehicles for service before the next scheduled date. It is to allow for these cases that a maximum odometer reading is entered as well in the confirmation of service. Servicing has to be brought forward if this odometer reading is reached before the next scheduled date for the service.

The service-due indicator in the multifunction display reminds you about one month or 1000 km in advance when the time for a service is approaching, on the basis of the programmed values.

To find out more about service go to:

bmw-motorrad.com/service

The maintenance tasks necessary for your vehicle are set out in the maintenance schedule below:

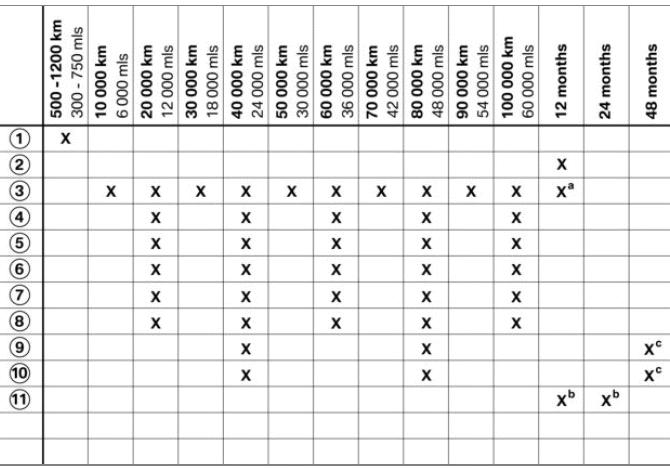

Maintenance schedule

1. BMW Running-in check
2. Standard BMW service
3. Engine-oil change, with filter
4. Replace air filter element
5. Replace chainset
6. Replace spark plug
7. Check valve clearance
8. Oil change in the telescopic forks
9. Replace fuel filters and fuel hoses
10. Replace intake silencer hoses for the cylinder head and tank vent valve
11. Change brake fluid, entire system

1. annually or every 10.000 km (whichever comes first)
2. for the first time after one year, then every 2 years
3. every 40.000 km or every 4 years (whichever comes first)

Confirmation of maintenance work

BMW Motorrad Service, standard scope

The activities in the BMW Motorrad Service standard scope are listed below. The actual scope of maintenance work for your vehicle may differ.

• Performing vehicle test with BMW Motorrad diagnosis system
• Check coolant level
• Check/adjust the clutch play
• Check the freedom of movement of the throttle cable and check for kinks and chafing
• Checking the front brake pads and brake disc for wear
• Checking the rear brake pads and brake disc for wear
• Visually inspecting the brake lines, brake hoses and connections
• Checking tyre pressures and tread depth
• Checking chain sag
• Checking the brake fluid level of the front wheel brake
• Checking the brake fluid level of the rear wheel brake
• Check the steering-head bearing
• Lubricating the side stand
• Check the lights and signalling equipment
• Function test, engine start suppression
• Final inspection and check for road safety
• Setting the service due date and remaining distance before next service
• Checking battery charge state
• Confirming the BMW service in the on-board literature
