Honda CBR125RW - Owner's Manual > Throttle

Throttle Freeplay

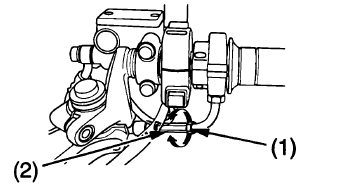

RIGHT HANDLEBAR

1. lock nut
2. adjuster

Inspection

Check freeplay at the throttle grip flange.

Freeplay: 2-6 mm (1/16-1/4 in)

If necessary, adjust to the specified range.

Adjustment

1. Loosen the lock nut (1).

2. Turn the adjuster (2).

3. After adjustment, check for smooth rotation of the throttle grip from fully closed to fully open in all steering positions.

Throttle Inspection

1. Check that the throttle assembly is positioned properly and the securing bolts are tight.

2. Check for smooth rotation of the throttle from fully open to fully closed in all steering positions. If there is a problem, see your Honda dealer.

Clutch System

Your motorcycle's manually-activated, wet, multiplate clutch is part of the primary drive system. Proper freeplay adjustment allows a smooth, gradual engagement when shifting gears.

Improper freeplay adjustment can cause premature clutch wear.

Clutch Freeplay

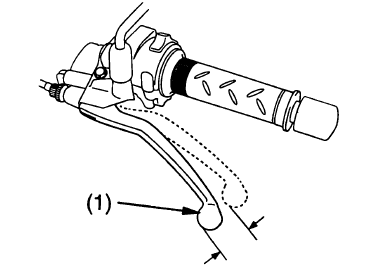

LEFT HANDLEBAR

1. clutch lever

Inspection

Check freeplay: 10-20 mm (3/8-13/16 in)

If necessary, adjust to the specified range.

Upper Adjustment

Attempt adjustment with the upper clutch cable adjuster first.

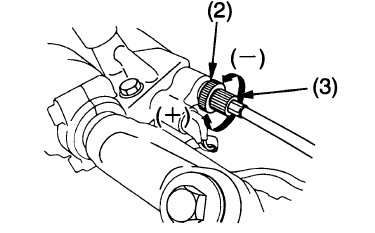

LEFT HANDLEBAR

2. upper lock nut
3. upper clutch cable adjuster

(+) increase freeplay
(-) decrease freeplay

1. Loosen the upper lock nut (2).

2. Turn the upper clutch cable adjuster (3) to obtain the specified freeplay.

3. Tighten the upper lock nut and check the freeplay again.

Lower Adjustment

If the upper clutch cable adjuster is threaded out near its limit - or the correct freeplay cannot be obtained - attempt adjustment with the lower clutch cable adjuster.

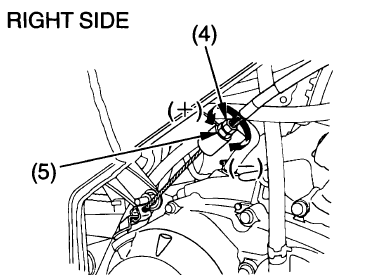

RIGHT SIDE

4. lock nut
5. adjusting nut

(+) increase freeplay
(-) decrease freeplay

4. Loosen the upper lock nut (2) and turn the upper clutch cable adjuster (3) all the way in (to provide maximum freeplay). Tighten the upper lock nut.

5. Loosen the lower lock nut (4).

6. Turn the lower adjusting nut (5) to obtain the specified freeplay.

7. Tighten the lower lock nut and check the adjustment.

8. Start the engine, pull the clutch lever in, and shift into gear. Make sure the engine does not stall and the motorcycle does not creep. Gradually release the clutch lever and open the throttle. Your motorcycle should move smoothly and accelerate gradually.

If you cannot get proper adjustment, or the clutch does not work properly, the cable or clutch friction discs may be worn. See your Honda dealer or refer to the official Honda Service Manual.

Other Inspections & Lubrication

• Check that the clutch lever assembly is positioned properly and the securing bolts are tight.
• Check the clutch cable for kinks or signs of wear. If necessary, have it replaced.
• Lubricate the clutch cable with a commercially-available cable lubricant to prevent premature wear and corrosion.
