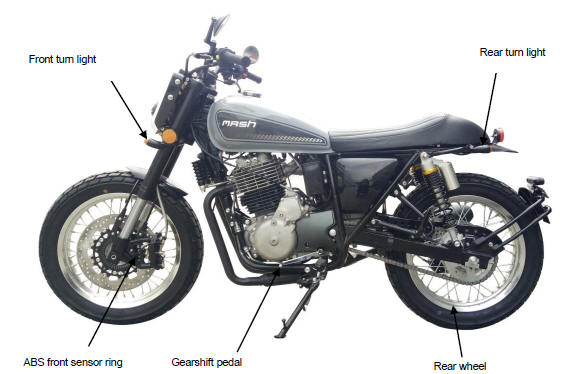

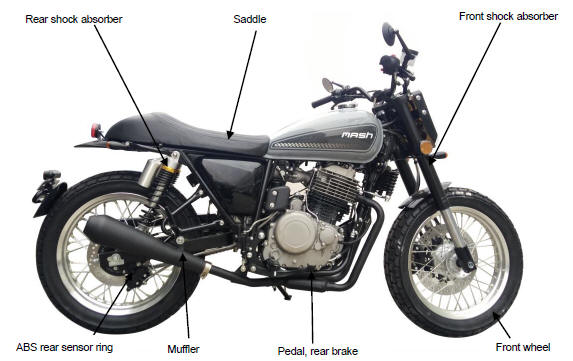

Mash Dirt Track 650 - Owner's Manual > Vehicle Layout

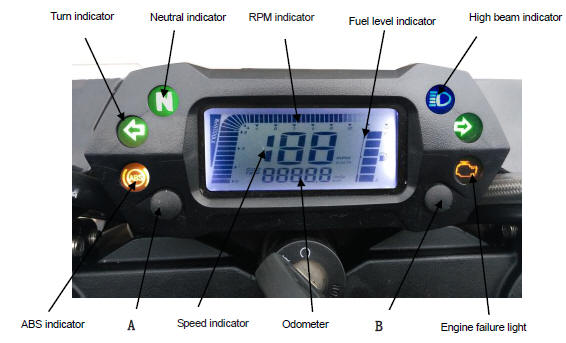

Instrument Gauges

Gauge Check

1) Speed indicator

The meter speed display with digital display, display range (0 - 199Km/h).When the speed is higher than 199Km/h, speed display value is 199Km/h.

2) Single mileage and total mileage display

This instrument is single mileage and total mileage display with digital display. Single mileage range 0 - 999.9Km, total mileage range 0 - 999.9Km 0-9999.9Km.When the mileage value exceeds the value, the amount will automatically reset and save Single mileage and the total mileage of precise 0.1Km.

3) Turning indicator light (green light)

The light flashes when activating the left- or right hand turning indicator using the control lever on the left-hand switch.

The light flashes when activating the left- or right hand turning indicator using the control lever on the left-hand switch.

4) High-beam light（blue light）

The light comes on when activating the high-beam light using the control on the left-hand switch

5) Neutral warning light

Using the shift lever, shift the motorcycle into neutral. The green "N" indicator light will illuminate. If light does not illuminate, check the neutral switch or indicator bulb for malfunctions.

6) RPM indicator

The instrument RPM instructions with stepper motor indicator. The indicated span 0-12000RPM.

Turn the ignition switch to the "on" position. The tachometer will sweep to the Redline and back indicating that the tachometer needle is functioning properly.

7) Fuel quantity display

The instrument of oil quantity display using bar code display, the display range 1-6 lattice, When the fuel level indicator pointer is close to the last scale, (low oil level indicator and the first oil quantity indicator is blinking) ，there is less fuel left in the tank. Replenish unleaded gasoline.

Turn the ignition switch to the "on" position. The yellow "low fuel" indicator will illuminate for 1 second and then turn off. If the fuel light remains on, check the fuel level. If light does not illuminate, or remains illuminated when tank is full, check the fuel sender or indicator bulb for malfunctions.

8) Engine failure light

When the ignition switch is in the "on" position, and all other start conditions have been satisfied (see "Start Conditions" for more information), the Diagnostic Trouble Code light (red "check engine" light) will illuminate and stay lit until the engine has been started. This is a "Lamp Test" to allow you to check the function of the indicator bulb.

Once the engine has been started, the light will turn off unless the ECU has detected a fault. If the light remains illuminated or flashes when the engine is running, a fault condition exists. Contact an authorized genuine dealer for service.

If the indicator light does not come on at all, check the indicator bulb and replace if necessary.

9) ABS Lamp

After ignition, ABS warning lamp is lit up, and then goes out after a short period of time. If the ABS lamp is always on after the ignition, or suddenly light up in the process of driving, these mean that there are faults in the ABS, the ABS is disabled. But the braking system itself is still working, only the ABS control system is failed.

Instrument button operation instructions

Press the left build "A"： Switching between big and small mileage。 Press the right build "B"： Press the right button before power up. Switching between metric and British system。 Under the TRIP display interface, long press right and left to build the trip odometer to zero。
