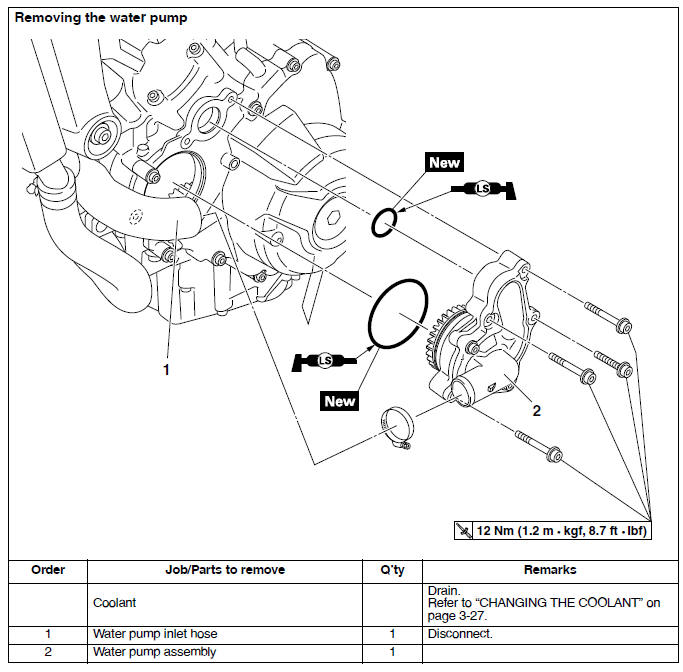

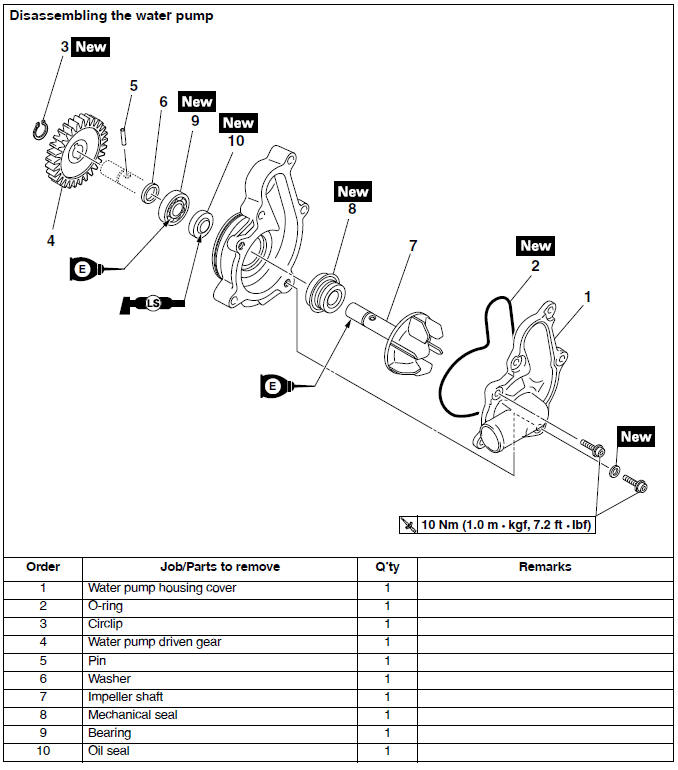

Disassembling the water pump

1. Remove:

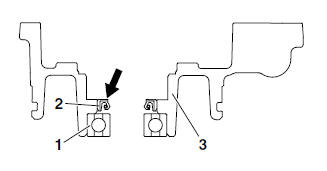

• Mechanical seal (housing side) "1"

TIP

Remove the mechanical seal (housing side) from the inside of the water pump housing "2".

2. Remove:

• Bearing "1"
• Oil seal "2"

TIP

Remove the oil seal and bearing from the outside of the water pump housing "3".

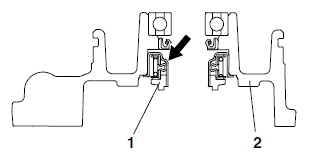

3. Remove:

• Mechanical seal (impeller side) "1" (from the impeller, with a thin, flat-head screwdriver)

TIP

Do not scratch the impeller shaft.

Checking the water pump

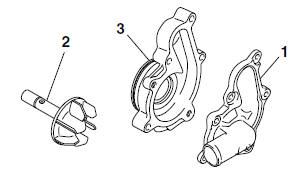

1. Check:

• Water pump housing cover "1"
• Impeller shaft "2"

Cracks/damage/wear → Replace.

• Water pump housing "3"

Cracks/damage/wear → Replace the water pump assembly.

2. Check:

• Bearing

Rough movement → Replace.

3. Check:

• Water pump inlet hose

Cracks/damage/wear → Replace.

Assembling the water pump

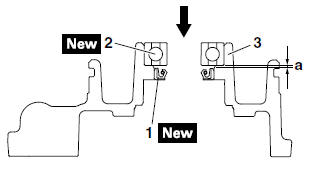

1. Install:

• Oil seal "1"
• Bearing "2"   (into the water pump housing "3")

Installed depth "a" 0.5-1.0 mm (0.02-0.04 in)

TIP

Install the oil seal with a socket that matches its outside diameter.

2. Install:

• Mechanical seal (housing side) "1"

NOTICE

Never lubricate the mechanical seal (hous- ing side) surface with oil or grease.

TIP

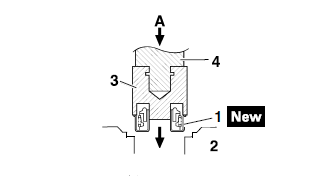

Use the special tools and a press to press the mechanical seal (housing side) straight in until it touches the water pump housing.

Mechanical seal installer 90890-04078

Water pump seal installer YM-33221-A

Middle driven shaft bearing driver 90890-04058

Middle drive bearing installer 40 & 50 mm YM-04058

2.  Water pump housing
3.  Mechanical seal installer
4. Middle driven shaft bearing driver

A. Push down

3. Install:

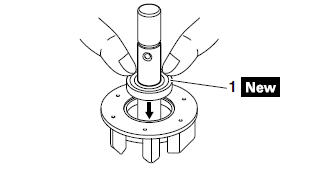

• Mechanical seal (impeller side) "1"

TIP

• Before installing the mechanical seal (impeller side), apply tap water or coolant onto its outer surface.
• If the top of the mechanical seal is dirty, clean it.

4. Measure:

• Impeller shaft tilt

Out of specification → Repeat steps (3) and (4).

NOTICE

Make sure the mechanical seal (impeller side) is flush with the impeller.

Impeller shaft tilt limit 0.15 mm (0.006 in)

1. Straightedge
2. Impeller
