Abs (anti-lock brake system)

Abs (anti-lock brake system)

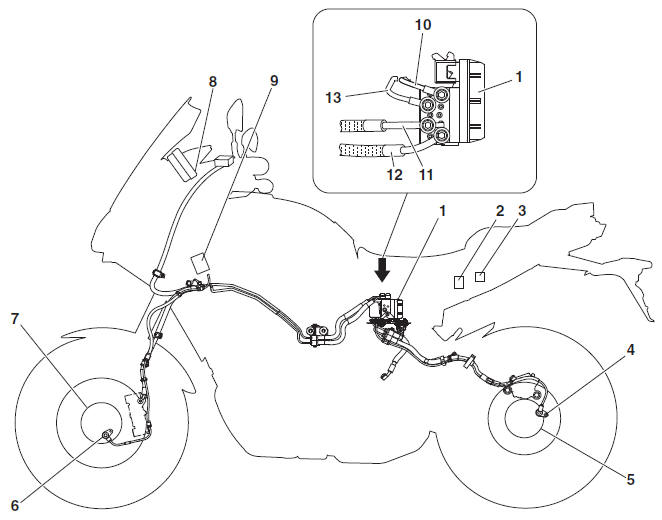

Abs components chart

Abs components chart

  1. Hydraulic unit assembly
  2.  Fuse box 3
  3.  ABS test coupler
  4.  Rear wheel sensor
  5. Rear wheel sensor rotor
  6. Front wheel sensor
  7. Front wheel sensor rotor
  8. ABS warning light
  9. Fuse box 2
  10. Rear brake hose (hydraulic unit to rear brake caliper)
  11. Front brake hose (front brake master cylinder to hydraulic unit)
  12. Front brake hose (hydraulic unit to front brake caliper)
  13. Rear brake hose (rear brake master cylinder to hydraulic unit)

See also:

 Yamaha Tracer MT09TRA - Service manual > Removing the rear brake master cylinder

1. Remove: Brake hose union bolt "1" Brake hose gaskets "2" Brake hose "3" TIP To collect any remaining brake fluid, place a container under the master cylinder and the end of the brake hose.

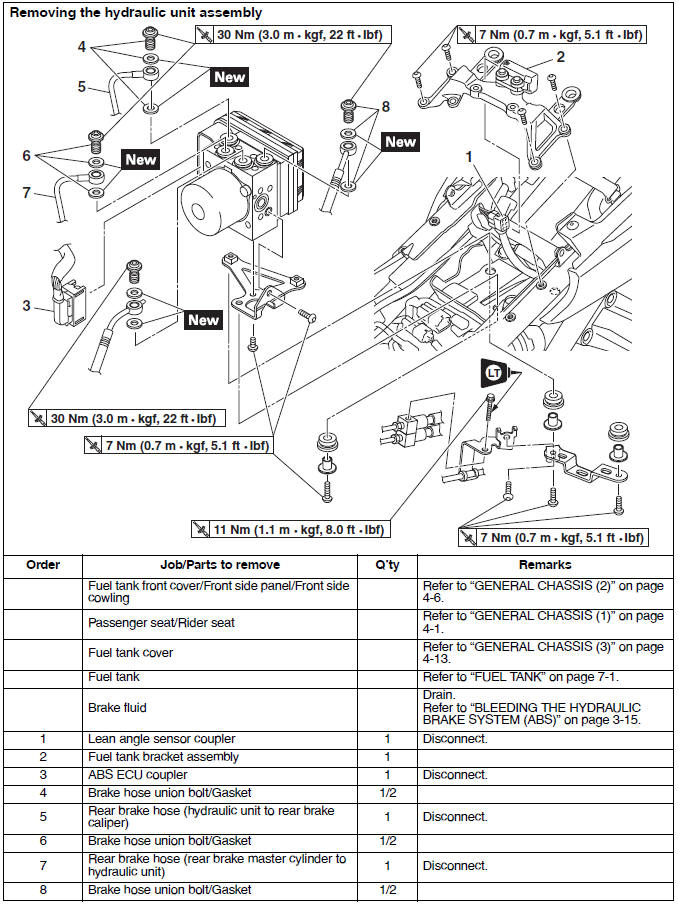

 Yamaha Tracer MT09TRA - Service manual > Removing the hydraulic unit assembly
