Husqvarna 401 Vitpilen - Owner's Manual > Changing the ABS fuses
Info
Two fuses for the ABS are located under the protection cap next to the fuse box. These fuses protect the return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
Preparatory work
- Switch off the ignition by turning the ignition key to the position
. - Remove the seat.
To change the fuse of the ABS hydraulic unit:

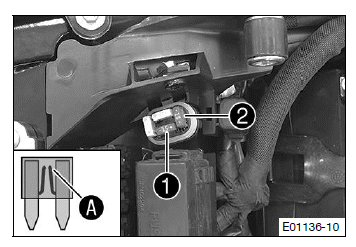

- Take off the protection cap and remove fuse 1.
Info
You can recognize a faulty fuse by a burned-out fuse wire A.
Warning
Fire hazard Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
- Use spare fuses with the correct rating only.
Fuse (75011088015)
Tip
Replace spare fuse 2 in the fuse box so that it is available if needed.
- Mount the protection cap.
To change the fuse of the ABS return pump:

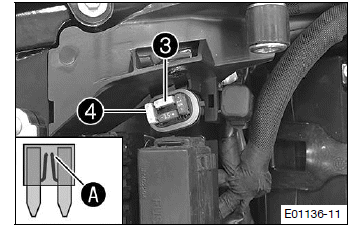

- Take off the protection cap and remove fuse 3.
Warning
Fire hazard Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
- Use spare fuses with the correct rating only.
Fuse (90111088025)
Tip
Replace spare fuse 4 in the fuse box so that it is available if needed.
- Mount the protection cap.
Finishing work
- Mount the seat.
Changing the fuses of individual power consumers
Info
The fuse box with the main fuse and the fuses of the individual power consumers are located under the seat.
Preparatory work
- Switch off the ignition by turning the ignition key to the position
.
- Remove the seat.
Main work

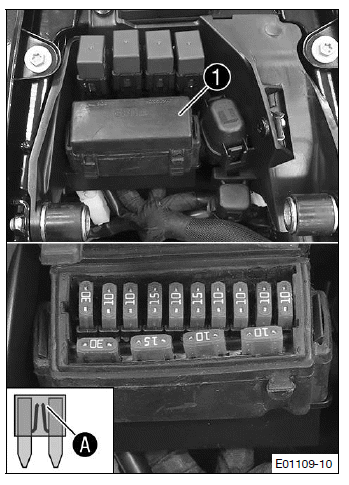

- Open fuse box cover 1.
- Remove the faulty fuse.

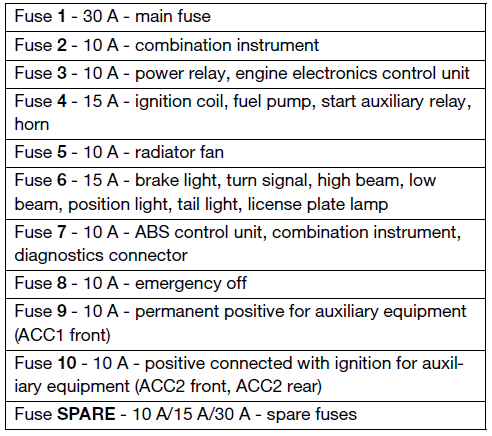

Guideline
Info
You can recognize a faulty fuse by a burned-out fuse wire A.
Warning
Fire hazard Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
- Use spare fuses with the correct rating only.
Fuse (75011088010)
Fuse (75011088015)
Fuse (75011088030)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
- Check that the power consumer is functioning properly.
- Close the fuse box cover 1.
Finishing work
- Mount the seat.
