Peugeot Kisbee - Service manual > Changing the engine oil

The engine must be drained when it is warm to allow the oil to run easier.

Put on protective gloves.

• Place the vehicle on its central stand on flat ground.

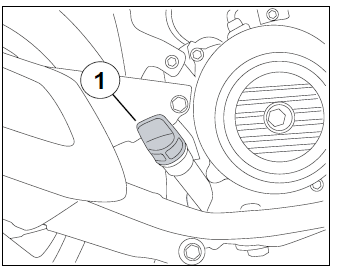

• Remove the engine's oil filler cap (1).

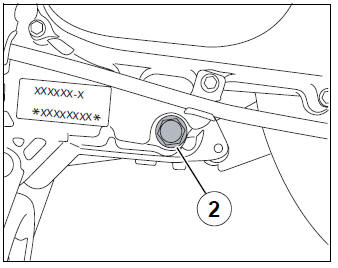

Remove the drainage cap and its seal (2) and allow the oil to drip into a recipient.

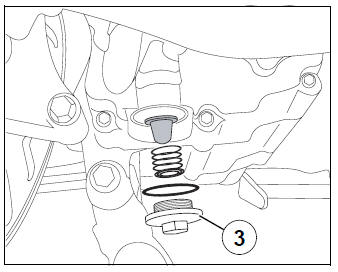

• Remove the strainer cap (3) and clean the strainer.

• Insert the drain plug fitted with a new seal.

Tightening torque: 20 Nm.

• Re-install the filter cap fitted with a new seal.

Tightening torque: 30 Nm.

• Pour the required quantity of oil corresponding to the manufacturer's standards into the filler hole.

Quantity: 0.8 l.

• Start the engine and let it run for a short while.
• Remove the engine's oil filler cap/gauge.
• Wipe dry the filler cap/gauge and fit it back but do not screw it into the filler hole.
• Remove the filler cap/gauge and check the oil level.
• The oil level shall not be between the minimum (A) and maximum (B) level marks without exceeding the latter.
• Add oil if necessary.

Draining the relay box

The gearbox must be drained when the engine is warm so that the oil will run easier.

Put on protective gloves.

• Place the vehicle on its central stand on flat ground.

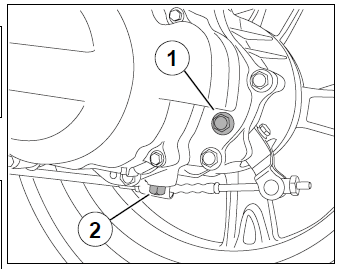

• Remove the relay box filler cap (1).

Remove the drainage cap and its seal (2) and allow the oil to drip into a recipient.

• Insert the drain plug fitted with a new seal.

Tightening torque: 12 Nm.

• Pour the required quantity of oil corresponding to the manufacturer's standards into the filler hole.

Quantity: 0.12 l.

• Fit the filler cap (1).

Tightening torque: 12 Nm.

Removal of the spark plug

• Remove the rear storage compartment.

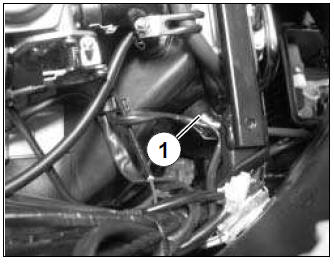

• Disconnect the suppressor (1).

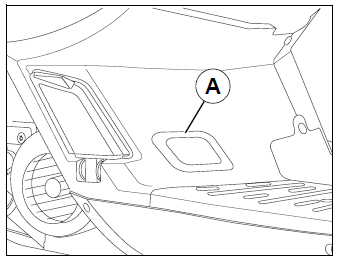

• Remove the spark plug access hatch (A).
• Remove the spark plug.

Essential precautions: When re-installing, srew in the spark plug (a few turns) by hand.

• Tighten the spark plug.

Tightening torque: 18 Nm.

Replacing the air filter

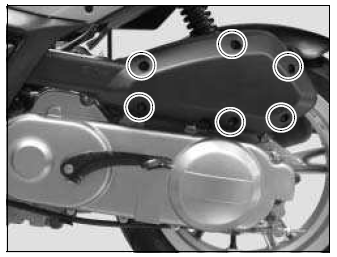

• Remove the 6 screws from the air filter cover.

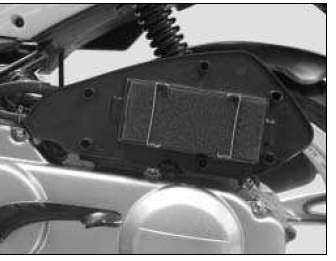

• Remove the air filter.
• Clean inside the air filter box.

Fit a new air filter.

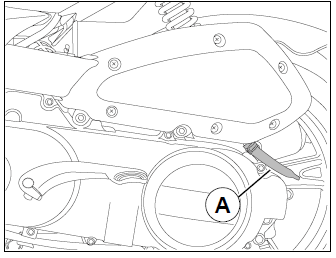

• Remove the inlet silencer drain plug to let humidity and oil drip out (A).
