Yamaha Tracer MT09TRA - Service manual > Checking the gear position switch
1. Remove:
- Fuel tank
- Gear position switch
2. Check:
- Gear position switch
Out of specification → Replace the gear position switch.
Pocket tester 90890-03112
Analog pocket tester YU-03112-C
Result
Neutral position
Continuity

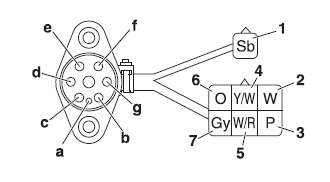

Positive tester probe sky blue "1"
Negative tester probe Sensor terminal "a"
1st position
Continuity
Positive tester probe white "2"
Negative tester probe Sensor terminal "b"
2nd position
Continuity
Positive tester probe pink "3"
Negative tester probe Sensor terminal "c"
3rd position
Continuity
Positive tester probe yellow/white "4"
Negative tester probe Sensor terminal "d"
4th position
Continuity
Positive tester probe white/red "5"
Negative tester probe
Sensor terminal "e"
5th position
Continuity
Positive tester probe orange "6"
Negative tester probe Sensor terminal "f"
6th position
Continuity
Positive tester probe gray "7"
Negative tester probe
Sensor terminal "g"
Checking the fuel injectors
The following procedure applies to all of the fuel injectors.
1. Remove:
- Fuel injector
2. Check:
- Fuel injector resistance
Out of specification → Replace the fuel injector.
Resistance 12.0
a. Disconnect the fuel injector coupler from the fuel injector.
b. Connect the pocket tester (* 10) to the fuel injector coupler as shown.
Pocket tester 90890-03112 Analog pocket tester YU-03112-C
- Positive tester probe → Injector terminal "1"
- Negative tester probe → Injector terminal "2"
c. Measure the fuel injector resistance.
