Yamaha Tracer MT09TRA - Service manual > Electrical components

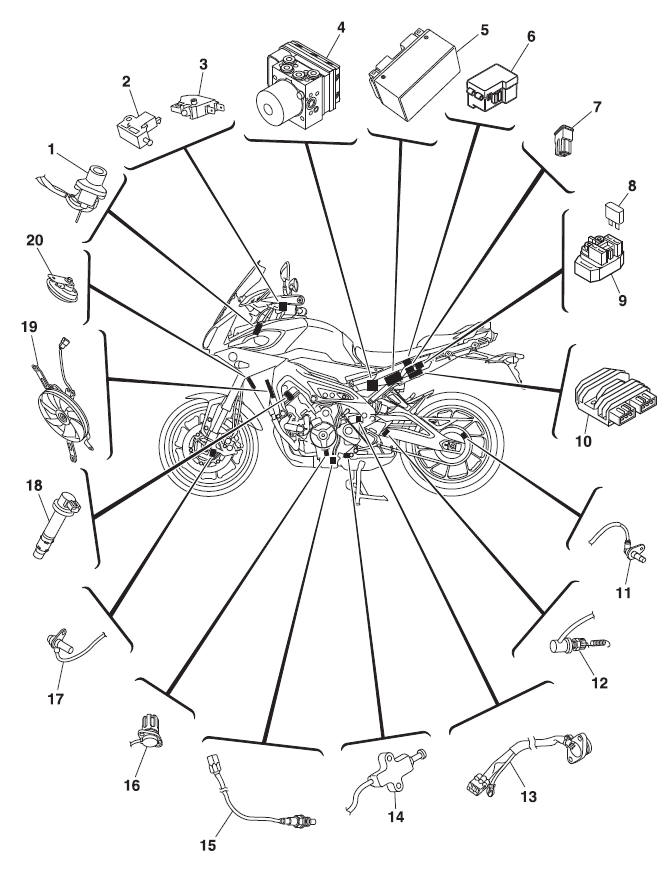

1. Main switch/Immobilizer unit

2. Clutch switch

3. Front brake light switch

4. Hydraulic unit assembly

5. Battery

6. Fuse box 3

7. Main fuse

8. Fuel injection system fuse

9. Starter relay

10.Rectifier/regulator

11.Rear wheel sensor

12.Rear brake light switch

13.Gear position switch

14.Sidestand switch

15.O2 sensor

16.Oil level switch

17.Front wheel sensor

18.Ignition coil

19.Radiator fan motor

20.Horn

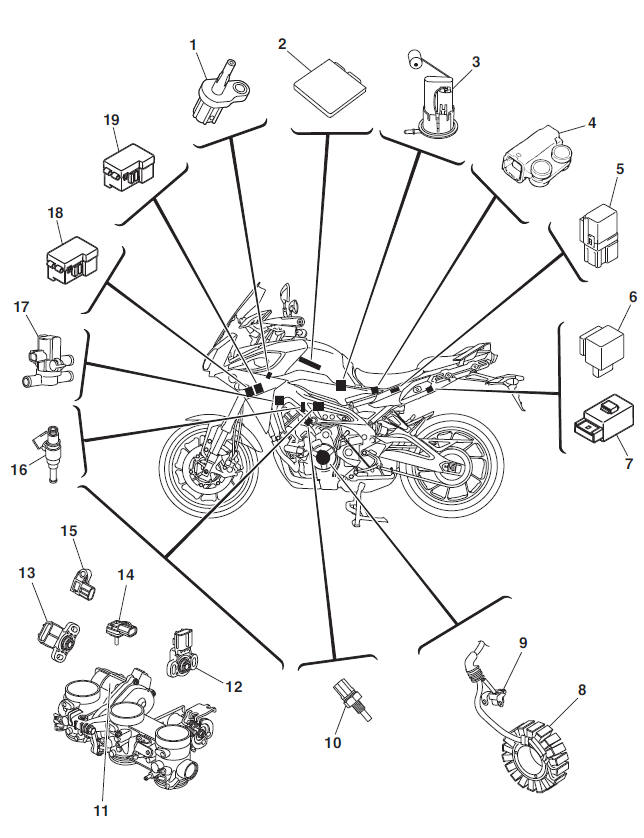

1. Intake air temperature sensor

2. ECU (engine control unit)

3. Fuel pump

4. Lean angle sensor

5. Radiator fan motor relay

6. Turn signal/hazard relay

7. Relay unit

8. Stator coil

9. Crankshaft position sensor

10.Coolant temperature sensor

11.Throttle servo motor

12.Accelerator position sensor

13.Throttle position sensor

14.Intake air pressure sensor 1

15.Intake air pressure sensor 2

16.Injector

17.Air induction system solenoid

18.Fuse box 1

19.Fuse box 2

• Checking the switches
• Checking the condition of the bulb sockets
• Checking and charging the battery
• Checking the relays
• Checking the relay unit (diode)
• Checking the lean angle sensor
• Checking the horn
• Checking the radiator fan motor
• Checking the throttle servo motor
• Checking the gear position switch
