Yamaha Tracer MT09TRA - Service manual > Checking the horn
1. Check:
- Horn resistance
Out of specification → Replace.
Horn Coil resistance 1.07-1.11
a. Disconnect the horn leads from the horn terminals.
b. Connect the digital circuit tester to the horn terminals.
Digital circuit tester 90890-03174
Model 88 Multimeter with tachometer YU-A1927

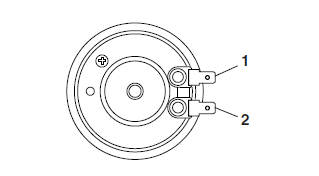

- Positive tester probe Horn terminal "1"
- Negative tester probe Horn terminal "2"
c. Measure the horn resistance.
2. Check:
- Horn sound
Faulty sound → Replace.
Checking the engine oil level switch
1. Drain:
- Engine oil
2. Remove:
- Oil level switch (from the oil pan)
3. Check:
- Oil level switch resistance
Oil level switch Oil level switch resistance (maximum level position) 484.0-536.0
Oil level switch resistance (minimum level position) 114.0-126.0
a. Connect the pocket tester (* 100) to the oil level switch terminal as shown.
Pocket tester 90890-03112
Analog pocket tester YU-03112-C

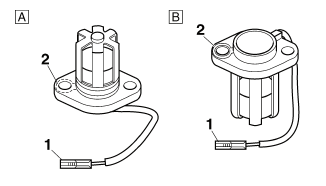

Minimum level position "A"
- Positive tester probe Coupler (gray) "1"
- Negative tester probe Body earth "2"
Maximum level position "B"
- Positive tester probe Coupler (gray) "1"
- Negative tester probe Body earth "2"
b. Measure the oil level switch resistance.
Checking the fuel sender
1. Disconnect:
- Fuel pump coupler (from the fuel pump)
2. Remove:
- Fuel tank
3. Remove:
- Fuel pump (from the fuel tank)
4. Check:
- Fuel sender resistance
Out of specification → Replace the fuel pump assembly.
Sender unit resistance (full) 9.0-11.0 Sender unit resistance (empty) 213.0-219.0

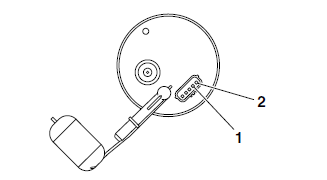

a. Connect the pocket tester (* 10/100) to the fuel sender terminals as shown.
Pocket tester 90890-03112
Analog pocket tester YU-03112-C
- Positive tester probe → Fuel sender terminal "1"
- Negative tester probe → Fuel sender terminal "2"

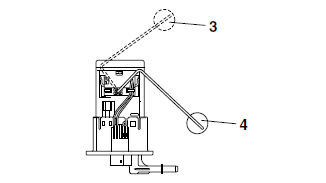

b. Move the fuel sender float to maximum "3" and minimum "4" level position.
Checking the fuel meter/fuel level warning light
This model is equipped with a self-diagnosis device for the fuel level detection circuit.
1. Check:

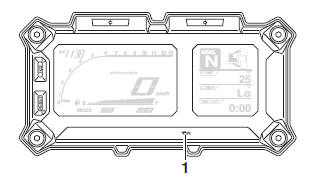

Fuel meter/fuel level warning light "1" (Turn the main switch to "ON".) Warning light comes on for a few seconds, then goes off → Warning light is OK.
Warning light does not come on → Replace the meter assembly.
Warning light flashes eight times, then goes off for 3 seconds in a repeated cycle (malfunction detected in fuel sender) → Replace the fuel pump assembly.
Checking the oil level warning light
This model is equipped with a self-diagnosis device for the oil level detection circuit.
1. Check:
- Oil level warning light "1" (Turn the main switch to "ON".) Warning
light comes on for a few seconds, then goes off → Warning light is OK.
Warning light does not come on → Replace the meter assembly.
Warning light flashes ten times, then goes off for 2.5 seconds in a repeated cycle (malfunction detected in oil level switch) → Replace the oil level switch.
