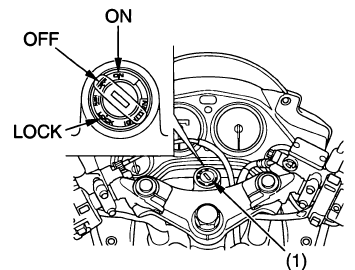

Ignition Switch

The ignition switch (1) is used for starting and stopping the engine and to lock the steering for theft prevention. Insert the key and turn it to the right for the ON position. Push down on the key and turn it to the left to the LOCK (steering lock) position.

FRONT

1. ignition switch

To unlock the steering lock, insert the key and turn it to the right to the OFF position.

Start Button

The start button (1) is used for starting the engine. Pushing the button in starts the engine. See Starting Procedure.

Engine Stop Switch

The engine stop switch (2) is used to stop the engine in an emergency. To operate, push the switch to the OFF position. The switch must be in the RUN position to start the engine, and it should normally remain in the RUN position even when the engine is OFF.

If your motorcycle is stopped with the ignition switch ON and the engine stop switch OFF, the headlight and taillight will remain on, resulting in battery discharge.

RIGHT HANDLEBAR

1. start button
2. engine stop switch

OFF

 RUN

Headlight Dimmer Switch

The headlight dimmer switch (1) is used to change between the high and low beams of the headlight. To operate, turn the switch to HI for high beam, LO for low beam.

Turn Signal Switch

The turn signal switch (2) is used to signal a turn or a lane change. To operate, move the switch all the way in the proper direction and release it. The appropriate turn signal lights will start blinking. To cancel the light, push the switch in.

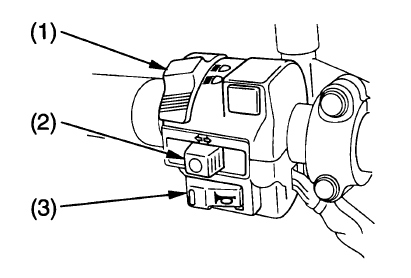

LEFT HANDLEBAR

1. headlight dimmer switch
2. turn signal switch
3. horn button

Horn Button

The horn is used to alert other motorists.

To operate, push the horn button (3).
