Honda CBR125RW - Owner's Manual > Operation Component Locations

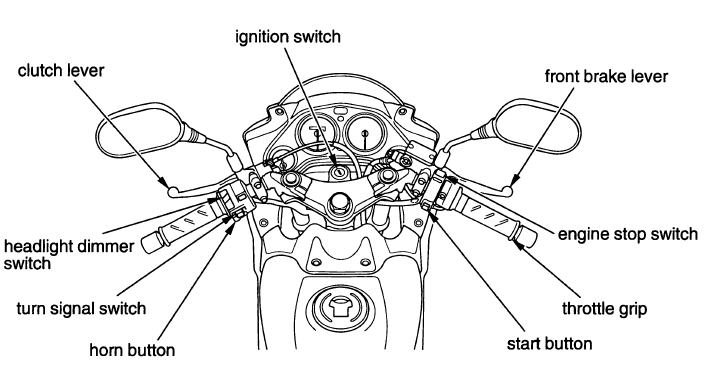

• clutch lever
• ignition switch
• front brake lever
• engine stop switch
• throttle grip
• start button
• horn button
• turn signal switch
• headlight dimmer switch

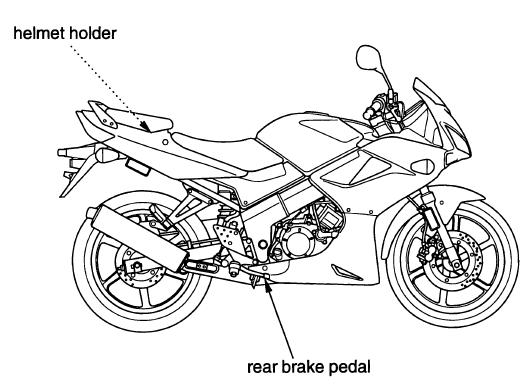

• helmet holder
• rear brake pedal

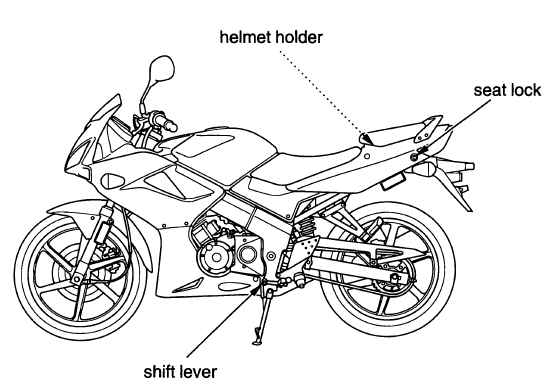

• seat lock
• helmet holder
• shift lever

Gauges & Indicators

The gauges and indicators on your motorcycle keep you informed, alert you to possible problems, and make your riding safer and more enjoyable. Refer to the gauges and indicators frequently. Their functions are described on the following pages.

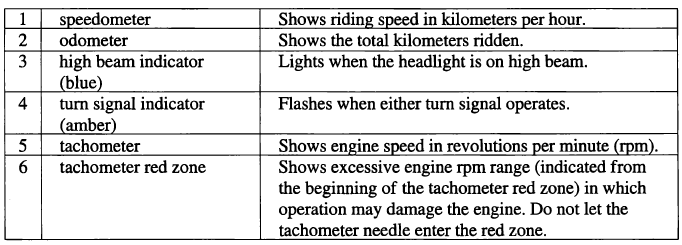

1. speedometer
2. odometer
3. high beam indicator
4. turn signal indicator
5. tachometer
6. tachometer red zone

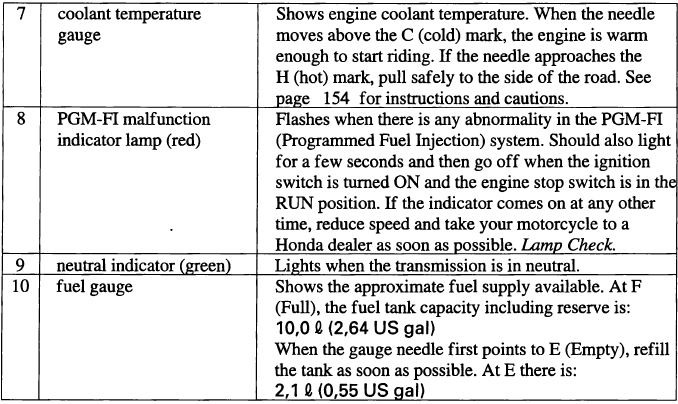

7. coolant temperature gauge
8. PGM-FI malfunction indicator lamp (MIL)
9. neutral indicator
10. fuel gauge

Lamp Check

The PGM-FI malfunction indicator lamp lights for a few seconds and then goes off when you turn the ignition switch ON so you can check that it is working. This indicator is identified in the table on page 16 with the words: Lamp check.

When applicable, the high beam and neutral indicators come on when you turn the ignition switch ON and remain on until you select the low beam or shift out of neutral.

If one of these indicators does not come on when it should, have your Honda dealer check for problems.
