Cooling system

Cooling system

Cooling system

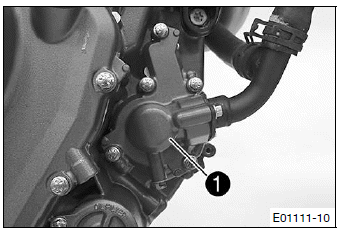

Water pump 1 in the engine ensures forced circulation of the coolant.

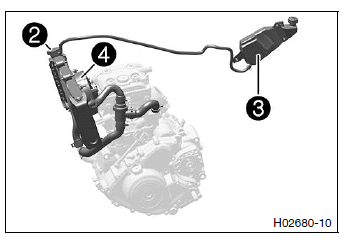

The pressure resulting from the warming of the cooling system is regulated by a valve in radiator cap 2. Heat expansion causes excess coolant to flow into compensating tank 3. When the temperature falls, this surplus coolant is sucked back into the cooling system. This ensures that operating the vehicle at the specified coolant temperature will not result in a risk of malfunctions.

110 ºC (230 ºF)

Cooling system

The coolant is cooled by the air stream and a radiator fan 4, which is activated at high temperature.

The lower the speed, the less the cooling effect. Dirty cooling fins also reduce the cooling effect.

Info

If the cooling system overheats, the maximum engine speed is limited.
