KTM 890 Duke R - Owner's Manual > Daytime running light (DRL)

Warning

Danger of accidents When visibility is poor, the daytime running light is not a substitute for the low beam.

Automatic switching between the daytime running light and low beam may only be partially available when visibility is significantly impaired due to fog, snow or rain.

• Ensure that the appropriate type of lighting is always selected.
• If necessary switch off the daytime running lights using the menu before going on a ride or when stopped so that the low beam is switched on permanently.
• Note the legal regulations regarding the daytime running light

The daytime running light (DRL) is integrated in the main headlight.

The daytime running light (DRL) must only be switched on when visibility conditions are good.

Activate the daytime running light (DRL) in the combination instrument.

This is controlled by the ambient light sensor in the combination instrument. When visibility conditions are good, the low beam is switched off and the daytime running light is switched on.

Info

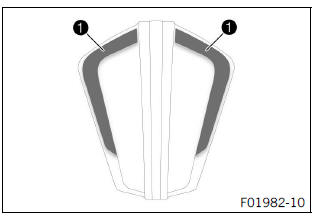

The position light 1 lights up with all types of lighting.

Removing the 12-V battery

Warning

Risk of injury Battery acid and battery gases cause serious chemical burns.

• Keep 12 V batteries out of the reach of children.
• Wear suitable protective clothing and safety glasses.
• Avoid contact with battery acid and battery gases.
• Keep sparks or open flames away from the 12 V battery.
• Only charge 12 V batteries in well-ventilated rooms.
• Rinse the affected area immediately with plenty of water in the event of contact with the skin.
• Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and battery gases get into the eyes.

Preparatory work

• Remove the passenger seat.

Main work

• Disconnect negative cable 1 from the 12-V battery.
• Remove positive terminal cover 2.

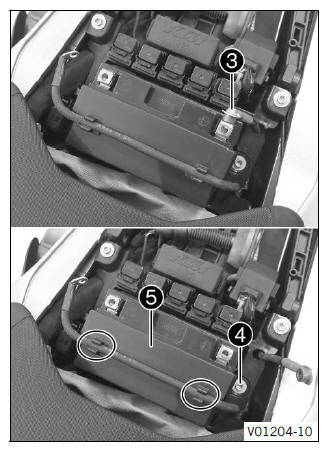

• Disconnect positive cable 3 from the 12-V battery.
• Take negative cable out of holders on the battery support bracket.
• Remove screw 4.
• Pull battery support bracket 5 to the side.
• Pull the 12-V battery upwards and out of the battery compartment.

Installing the 12-V battery

Main work

• Position the 12-V battery in the battery compartment.

12 V battery (HTZ12A-BS)

  The battery terminals face opposite the direction of travel.

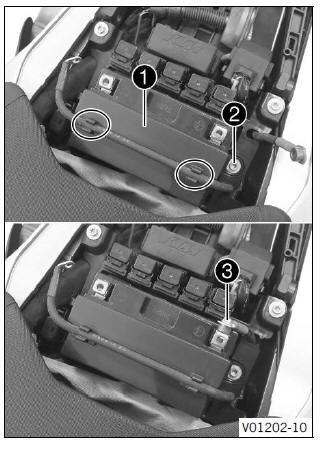

• Position battery support bracket 1.
• Mount and tighten screw 2.

Guideline

• Connect positive cable 3 to the 12 V battery.

Guideline

Info

Make sure the cable lies in the recess provided for this next to the battery compartment.

• Hook negative cable into the holders on the battery support bracket.

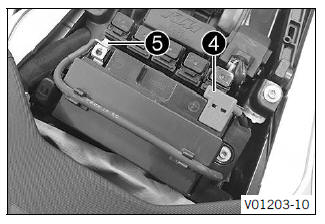

• Mount positive terminal cover 4.
• Connect negative cable 5 to the 12 V battery.

Guideline

Finishing work

• Mount the passenger seat.
• Set the time and date.
