Yamaha Tracer MT09TRA - Service manual > Engine oil lubrication chart

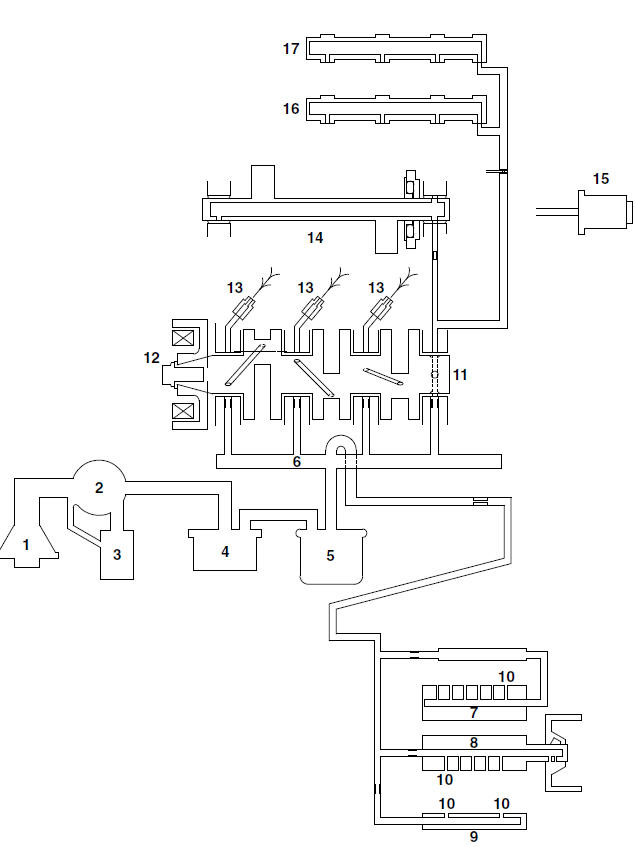

1. Oil strainer
2.  Oil pump
3. Relief valve
4. Oil cooler
5. Oil filter cartridge
6. Main gallery
7. Drive axle
8. Main axle
9. Shift fork (upper)
10. Mission shower
11. Crankshaft
12. AC magneto
13. Oil nozzle
14. Balancer shaft
15. Timing chain tensioner
16. Intake camshaft
17. Exhaust camshaft

Lubrication diagrams

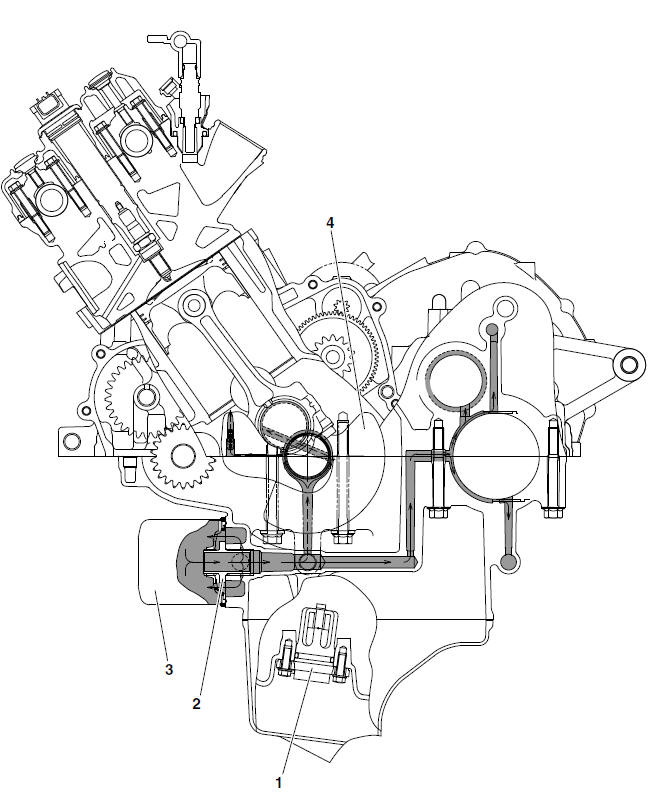

1. Oil level switch
2. Oil filter cartridge union bolt
3. Oil filter cartridge
4. Crankshaft

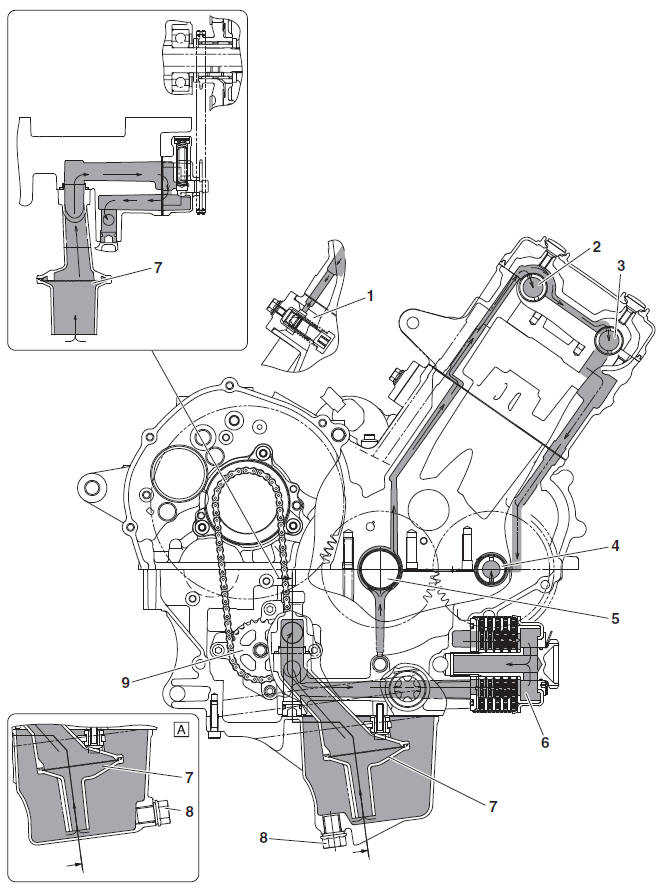

1. Timing chain tensioner
2. Intake camshaft
3. Exhaust camshaft
4. Balancer shaft
5. Crankshaft
6. Oil cooler
7. Oil strainer
8. Oil drain bolt
9. Oil pump driven sprocket

A. MT09TRA for Europe: RN29F0011886 and after MT09TRAG for Oceania: RN29K 0000556 and after

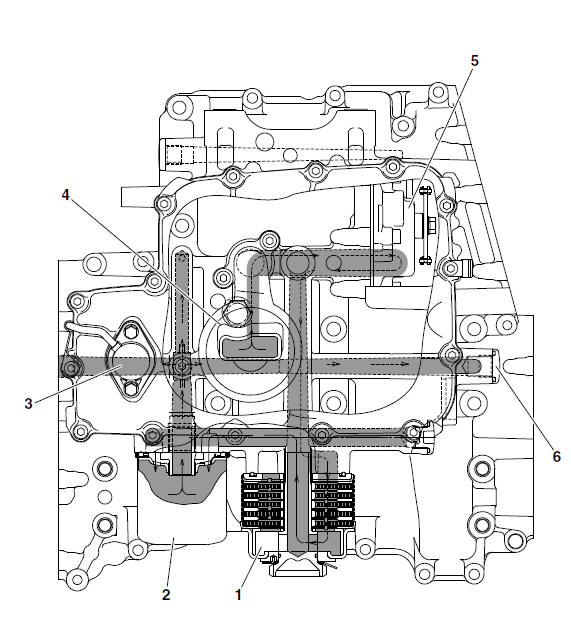

1. Oil cooler
2. Oil filter cartridge
3. Oil level switch
4. Oil strainer
5. Oil pump
6. Main gallery bolt

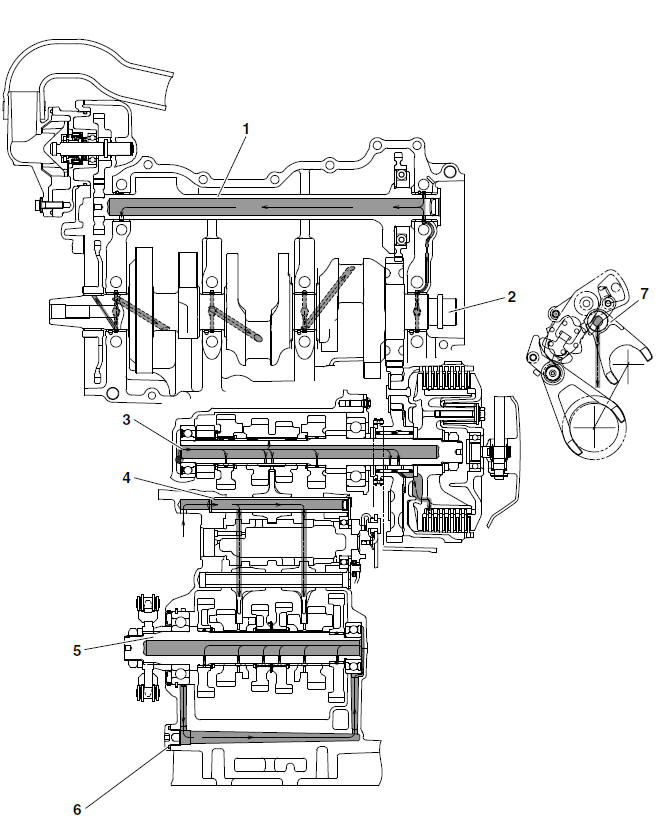

1. Balancer shaft
2. Crankshaft
3. Main axle
4. Shift fork guide bar (shift fork-C side)
5. Drive axle
6. Sub gallery bolt
7. Shift fork

1. Cylinder head
2. Exhaust camshaft
3. Intake camshaft
4. Oil passage to the timing chain tensioner
5. Oil passage to the cylinder head
6. Oil passage to the clutch chamber
7. Oil return passage from the cylinder head
8. Crankshaft
9. Main gallery
