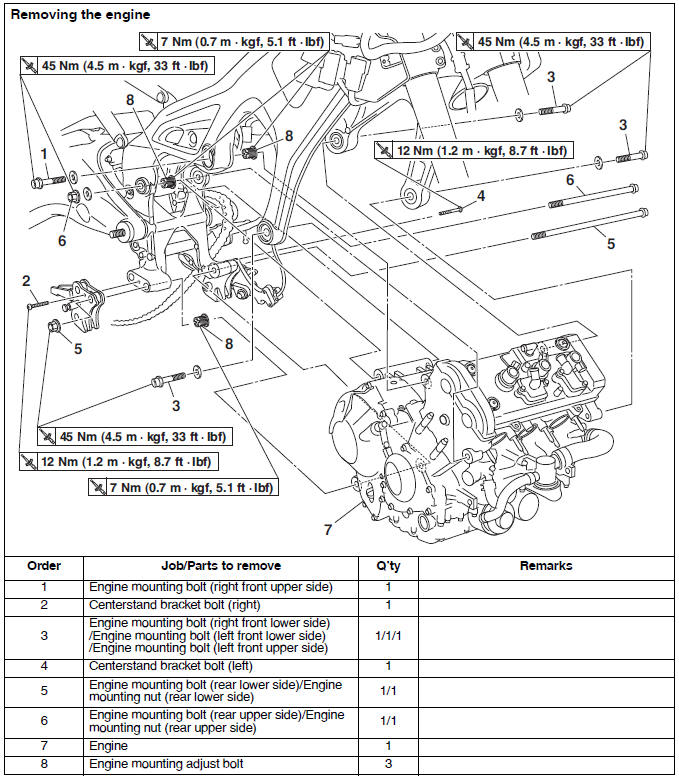

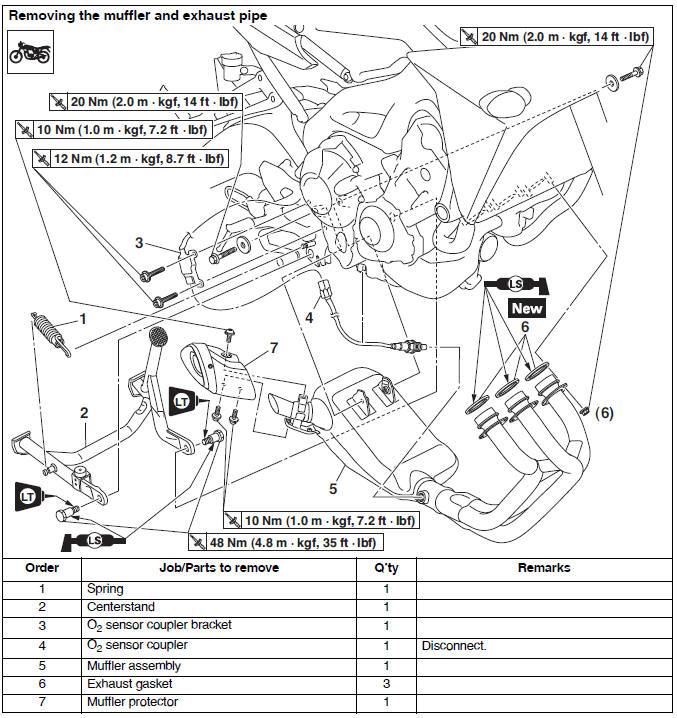

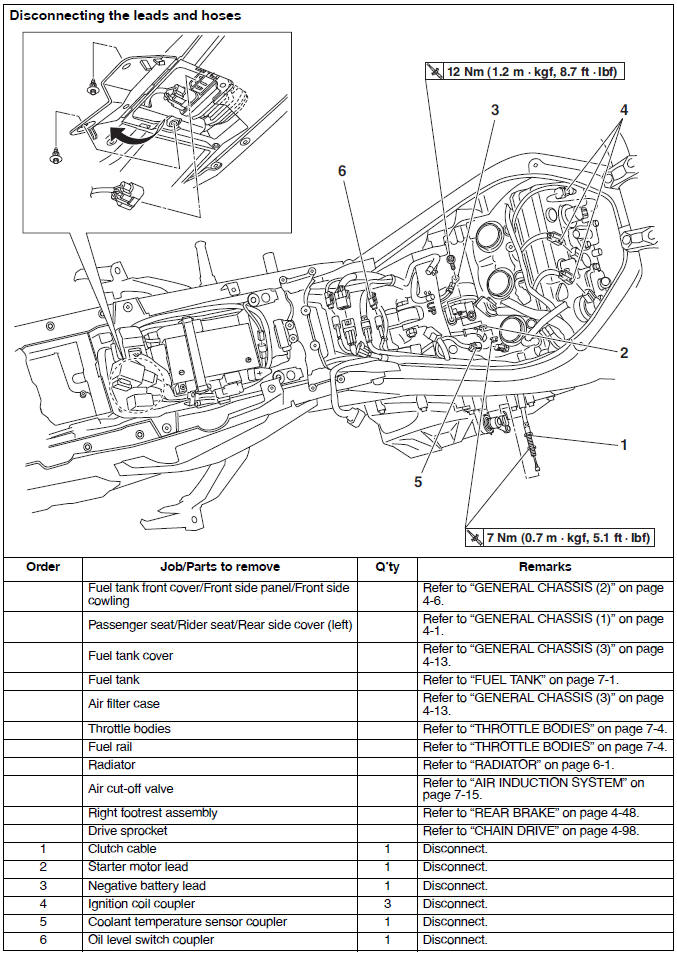

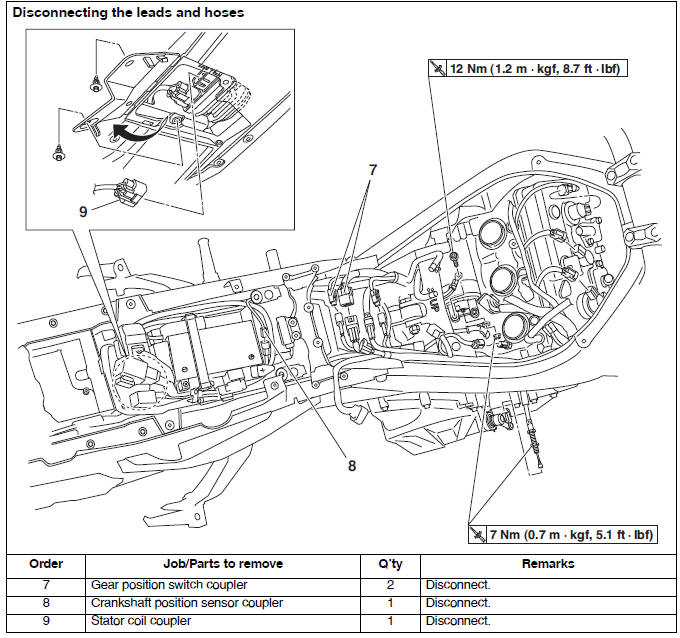

Removing the engine

1. Loosen:

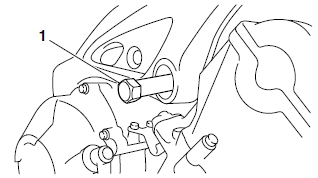

• Engine mounting adjust bolt (front)

TIP

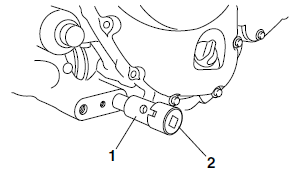

Loosen the engine mounting adjust bolt with the pivot shaft wrench "1".

Pivot shaft wrench 90890-01485

 Frame mount insert wrench YM-01485

2. Loosen:

• Engine mounting adjust bolt (rear)

TIP

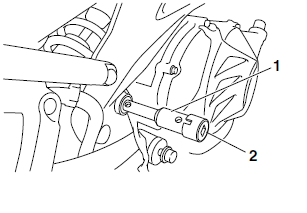

Loosen the engine mounting adjust bolts with the pivot shaft wrench "1" and pivot shaft wrench adapter "2".

Pivot shaft wrench 90890-01518

Frame spanner socket YM-01518

Pivot shaft wrench adapter 90890-01476

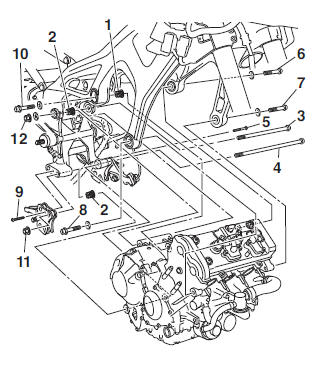

Installing the engine

1. Install:

• Engine mounting adjust bolt (front) "1" (temporarily tighten)
• Engine mounting adjust bolt (rear) "2" (temporarily tighten)

2. Install:

• Engine

3. Install:

• Engine mounting bolt (rear upper side) "3"
• Engine mounting bolt (rear lower side) "4"

4. Install:

• Centerstand bracket bolt (left) "5" (temporarily tighten)

5. Install:

• Engine mounting bolt (left front upper side) "6"
• Engine mounting bolt (left front lower side) "7"
• Engine mounting bolt (right front lower side) "8"

TIP

Temporarily tighten the engine mounting bolts "6"-"8".

6. Tighten:

• Engine mounting adjust bolt (front) "1"

TIP

• Tighten the engine mounting adjust bolt to specification with the pivot shaft wrench.
• Make sure that the flange on the engine mounting adjust bolt contacts the engine.

Engine mounting adjust bolt (front) 7 Nm (0.7 m*kgf, 5.1 ft*lbf)

Pivot shaft wrench 90890-01485 Frame mount insert wrench YM-01485

7. Tighten:

• Engine mounting adjust bolt (rear) "2"

TIP

• Tighten the engine mounting adjust bolts to specification with the pivot shaft wrench and pivot shaft wrench adapter.
• Make sure that the flange on the engine mounting adjust bolt contacts the engine.

Engine mounting adjust bolt (rear) 7 Nm (0.7 m*kgf, 5.1 ft*lbf)

Pivot shaft wrench 90890-01518

Frame spanner socket YM-01518

Pivot shaft wrench adapter 90890-01476

8. Install:

• Centerstand bracket bolt (right) "9" (temporarily tighten)

9. Install:

• Engine mounting bolt (right front upper side) "10"

10.Tighten:

• Engine mounting nut (rear lower side) "11"
• Engine mounting nut (rear upper side) "12"

Engine mounting nut (rear lower side) 45 Nm (4.5 m*kgf, 33 ft*lbf) Engine mounting nut (rear upper side) 45 Nm (4.5 m*kgf, 33 ft*lbf)

11.Tighten:

• Engine mounting bolt (right front upper side) "10"
• Engine mounting bolt (left front upper side) "6"
• Engine mounting bolt (left front lower side) "7"
• Engine mounting bolt (right front lower side) "8"

Engine mounting bolt (front upper and front lower side) 45 Nm (4.5 m*kgf, 33 ft*lbf)

12.Tighten:

• Centerstand bracket bolt (left) "5"
• Centerstand bracket bolt (right) "9"

Centerstand bracket bolt 12 Nm (1.2 m*kgf, 8.7 ft*lbf)
