Peugeot Kisbee - Service manual > Location of body components

Description

1. Handlebar front fairing
2. Handlebar rear fairing
3. Legshield top panel
4. Rear shield
5. Front lower legshields
6. Front mudguard
7. Front wheel
8. Mudguard
9. Bottom panel
10. Central bottom panel
11. Floor panel
12. Mudflap
13. Saddle and storage compartment
14. Rear body panels
15. Central panels

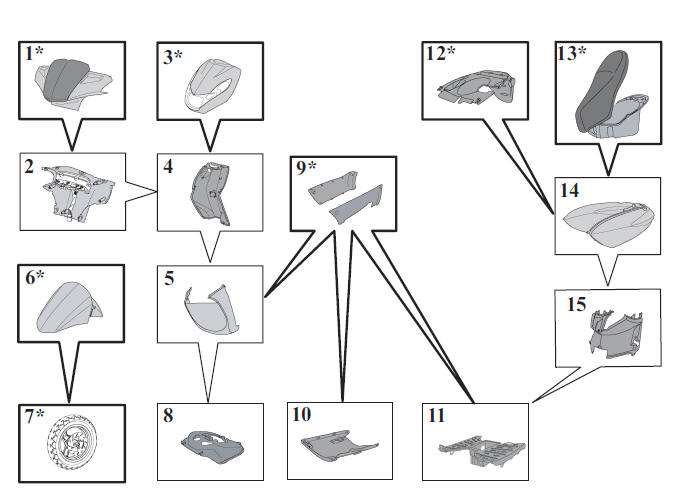

Body component sequence of disassembly

1. Handlebar front fairing
2. Handlebar rear fairing
3. Legshield top panel
4. Rear shield
5. Front lower legshields
6.  Front mudguard
7. Front wheel
8. Mudguard
9. Bottom panel
10. Central bottom panel
11. Floor panel
12. Mudflap
13. Saddle and storage compartment
14. Grab handle
15. Rear body panels
16. Central panels

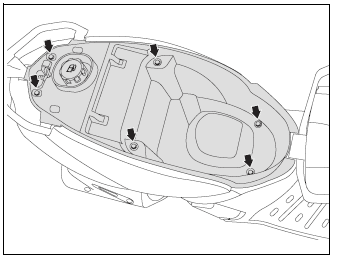

Removal of the rear storage compartment

Procedure 1.

Lift the saddle.

Remove the tank filler cap.

 Remove the storage compartment (6 screw).

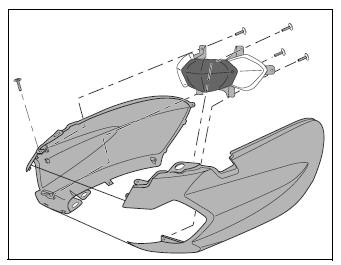

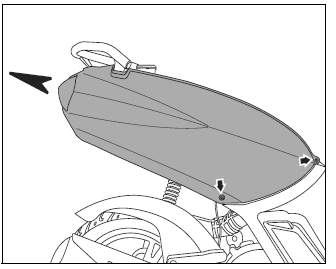

Removal of the rear cover assembly and mudflap

Procedure 2.

• Remove the rear storage compartment.

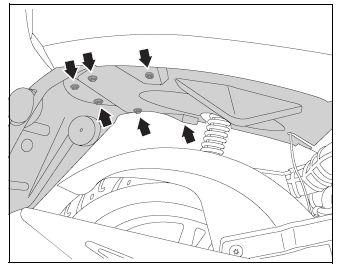

• Remove the splash guard (6 screw).

• Remove the grab handle (3 screw).
• Remove the rear cover assembly (4 screw).
• Disconnect the taillight.

• Remove the taillight (4 screw).
• Remove the fastening screw on the fairings.
• Separate the 2 fairings.

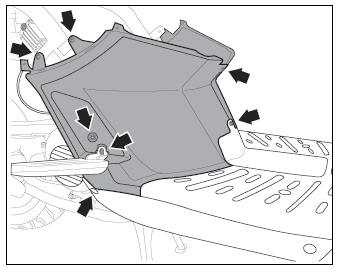

Removal of the RH or LH central cover panel

Procedure 3.

• Remove the rear cover assembly.
• Remove the battery access door (1 screw).
• Remove the complete footrest assembly (1 screw).
• Remove the 5 screws from the central fairing.
