Peugeot Kisbee - Service manual > Removal of the instrument cluster

Procedure 4.

• Remove the handlebar front cover (4 screw).

• Disconnect the instrument cluster.
• Unscrew the speedometer cable.

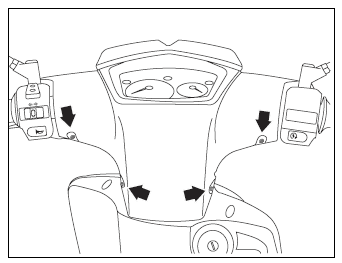

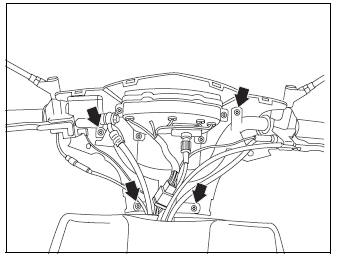

• Remove the handlebar rear cover and instrument cluster assembly (4 screw).
• Remove the instrument cluster (4 screw).

Removal of the RH or LH under body panel

Procedure 5.

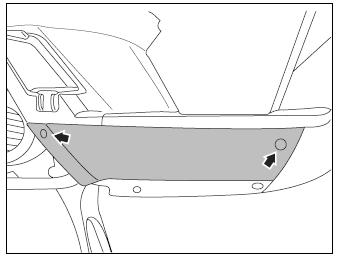

• Remove the 2 screws from the bottom panel.
• Remove the bottom panel.

Removal of the front top shield panel

Procedure 6.

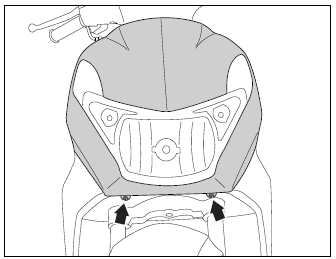

• Remove the 2 screws that secure the front shield panel.

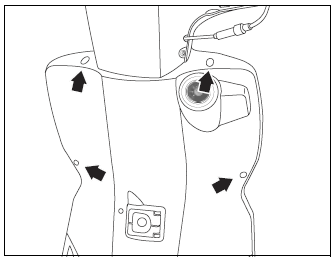

• Remove the 4 screws that secure the front shield panel.
• Remove the front upper shield panel.
• Disconnect the headlight and the indicator lights.

Removal of the rear shield panel

Procedure 7.

• Remove the handlebar front and rear covers.
• Remove the front upper shield panel.

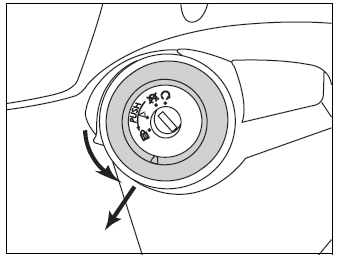

• Remove the ingnition switch trim.

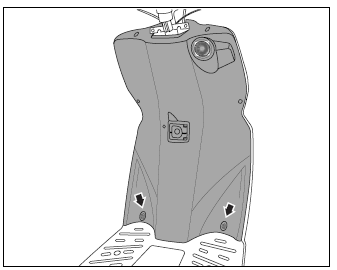

• Remove the 2 screws that secure the rear shield panel.

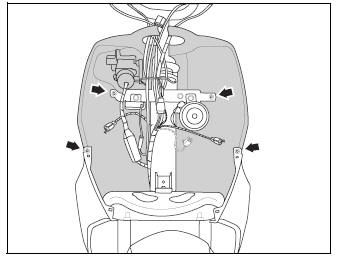

• Remove the 4 screws that secure the rear shield panel.
• Pull upwards the lower part of the shield panel in order to separate it from the footboard.

Removal of the front lower shield pannel

Procedure 8.

• Remove the rear shield panel.
• Remove the RH and LH under body panel.

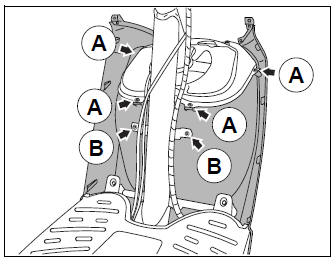

• Remove the 4 fastening screws from the mudguard (A).
• Remove the 2 screws that secure the front shield panel (B).

Removal of the footboard

• Remove the rear shield panel.
• Remove the right and left central fairings.
• Remove the RH and LH under body panel.
• Remove the battery.
• Remove the starter relay.
• Remove the fuse holder.

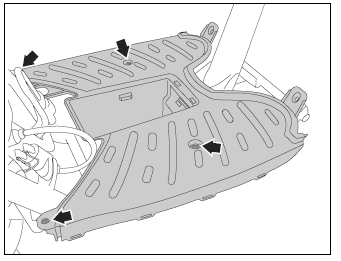

• Remove the footboard (4 screw).
