Yamaha Tracer MT09TRA - Service manual > Multi-function meter unit

1. "RESET" button
2.  "TCS" button
3.  Clock
4. Tachometer
5. Speedometer
6. Transmission gear display
7. Information display selection function
8. Information display
9. Fuel meter
10. Eco indicator "ECO"
11. Drive mode display
12. Fuel level warning indicator " "

WARNING

Be sure to stop the vehicle before making any setting changes to the multi-function meter unit. Changing settings while riding can distract the operator and increase the risk of an accident.

TIP

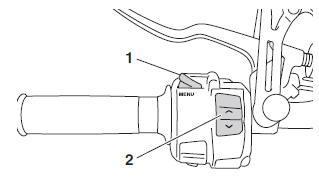

The select switch " /  " and the menu switch "MENU" are located on the left handlebar. These switches allow you to control or change the settings of the multi-function meter unit.

1. Menu switch "MENU"
2.  Select switch " / "

The multi-function meter unit is equipped with the following:

• a speedometer
• a tachometer
• a clock
• a fuel meter
• an eco indicator
• a transmission gear display
• a drive mode display (which shows the selected drive mode)
• an information display (which shows various information, such as the odometer reading)
• a setting mode display (which allows you to set, select, or reset the items shown in the information display)

TIP

• Turn the key to "ON" before pushing the select switch " / ", menu switch "MENU", "RESET" button and "TCS" button.
• For the UK only: To switch the meter displays between kilometers and miles, refer to "Setting mode".

Speedometer

1. Speedometer

The speedometer shows the vehicle's traveling speed.

Tachometer

1. Tachometer
2.  High-rpm zone

The electric tachometer allows the rider to monitor the engine speed and keep it within the ideal power range.

When the key is turned to "ON", the tachometer will sweep across the r/min range and then return to zero r/min in order to test the electrical circuit.

NOTICE

Do not operate the engine in the tachometer high-rpm zone.

High-rpm zone 11250 r/min and above

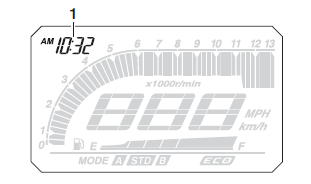

Clock

1. Clock

The clock is displayed when the key is turned to "ON".

To set the clock, refer to "Setting the clock".

Fuel meter

1. Fuel level warning indicator " "
2.  Fuel meter

The fuel meter indicates the amount of fuel in the fuel tank. The display segments of the fuel meter disappear towards "E" (Empty) as the fuel level decreases. When the last segment of the fuel meter and fuel level warning indicator "  " start flashing, refuel as soon as possible. When the key is turned to "ON", all of the display segments of the fuel meter will appear for a few seconds, and then the fuel meter shows the actual fuel  level.

TIP

This fuel meter is equipped with a self-diagnosis system. If a problem is detected in the electrical circuit, the following cycle is repeated until the malfunction is corrected: fuel level segments and fuel level warning indicator " " flash eight times, then go off for approximately 3 seconds.

If this occurs, check the electrical circuit.

Refer to "CHECKING THE FUEL METER/FUEL LEVEL WARNING LIGHT"

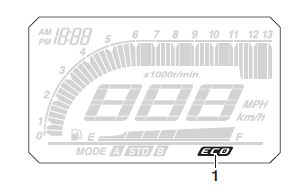

Eco indicator

1. Eco indicator "ECO"

This indicator comes on when the vehicle is being operated in an environmentally friendly, fuelefficient manner. The indicator goes off when the vehicle is stopped.

TIP

Consider the following tips to reduce fuel consumption:

• Avoid high engine speeds during acceleration.
• Travel at a constant speed.
• Select the transmission gear that is appropriate for the vehicle speed.

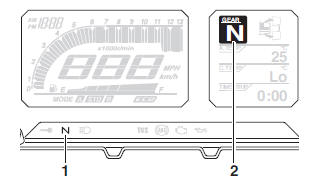

Transmission gear display

1. Neutral indicator light " "
2. Transmission gear display

This display shows the selected gear. This model is equipped with 6 gears. The neutral position is indicated by the neutral indicator light " " and by the transmission gear display " ".

Drive mode display

1. Drive mode display

This display indicates which drive mode has been selected: "STD", "A" or "B". For more details on the modes and on how to select them, refer to "D-mode (drive mode)" .

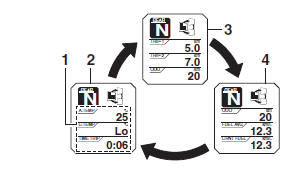

Information display

1. Information display
2. Display-1
3.  Display-2
4. Display-3

There are 3 information displays. The selected information display can be switched by pushing the select switch " / ".

The following items are shown in the information displays:

• an odometer display
• tripmeter displays
• a fuel reserve tripmeter display
• an elapsed time display
• an ambient temperature display
• a coolant temperature display
• an average fuel consumption display
• an instantaneous fuel consumption display
• an error code display

The items shown in each information display can be selected.

To set or select the items shown, refer to "Setting mode".

Odometer display:

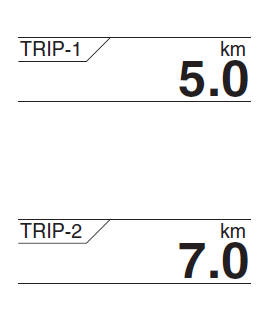

Tripmeter displays:

"TRIP-1" and "TRIP-2" show the distance traveled since they were last set to zero.

When approximately 2.6 L (0.69 US gal, 0.57 Imp.gal) of fuel remains in the fuel tank, the last segment of the fuel meter and fuel level warning indicator " " start flashing. In addition, the information display will automatically change to the fuel reserve tripmeter mode "TRIP-F" and start counting the distance traveled from that point.

In that case, pushing the select switch switches the display between the various information displays in the following order;

TRIP-F Display-1 Display-2 Display- 3 TRIP-F

To reset a tripmeter, use the select switch to select the information display that contains the tripmeter. Push the "RESET" button briefly so that the tripmeter flashes, and then push the "RESET" button again for at least 2 seconds while the tripmeter is flashing. If you do not reset the fuel reserve tripmeter manually, it will reset itself automatically and the display will return to the prior mode after refueling and traveling 5 km (3 mi).

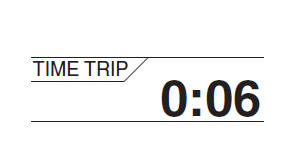

Elapsed time display:

The time that has elapsed since the key was turned to "ON" is shown. The maximum time that can be shown is 99:59.

This display is automatically reset when the key is turned to "OFF".

TIP

There are also "TIME-2" and "TIME-3" elapsed time displays, but they cannot be set to the information display. Refer to "Setting mode"

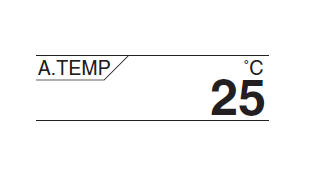

Ambient temperature display:

This display shows the ambient temperature from -9 ºC to 93 ºC in 1 ºC increments. The temperature displayed may vary from the ambient temperature.

TIP

• -9 ºC will be displayed even if the ambient temperature falls below -9 ºC.
• The accuracy of the temperature reading may be affected when riding slowly [approximately under 20 km/h (12.5 mi/h)] or when stopped at traffic signals, railroad crossings, etc.

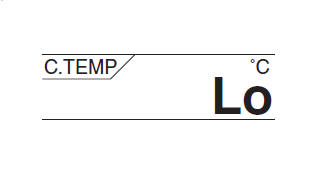

Coolant temperature display:

The coolant temperature display indicates the temperature of the coolant. The coolant temperature varies with changes in the weather and engine load.

If the message "Hi" flashes, stop the vehicle, then stop the engine, and let the engine cool.

TIP

The selected information display cannot be switched while the message "Hi" is flashing.

NOTICE

Do not continue to operate the engine if it is overheating.

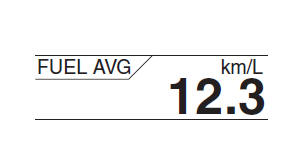

Average fuel consumption display:

The average fuel consumption display modes "km/L", "L/100km" or "MPG" (for the UK only) show the average fuel consumption since the display was last reset.

• The "km/L" display shows the average distance that can be traveled on 1.0 L of fuel.
• The "L/100km" display shows the average amount of fuel necessary to travel 100 km.
• For the UK only: The "MPG" display shows the average distance that can be traveled on 1.0 Imp.gal of fuel.

  To reset the average fuel consumption display, use the select switch to select the information display that contains the average fuel consumption display. Push the "RESET" button briefly so that the average fuel consumption display flashes, and then push the "RESET" button again for at least 2 seconds while the display is flashing.

TIP

After resetting the average fuel consumption display, "_ _._" will be shown for that display until the vehicle has traveled 1 km (0.6 mi).

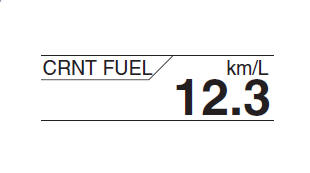

Instantaneous fuel consumption display:

The instantaneous fuel consumption display modes "km/L", "L/100km" or "MPG" (for the UK only) show the fuel consumption under the current riding conditions.

• The "km/L" display shows the distance that can be traveled on 1.0 L of fuel.
• The "L/100km" display shows the amount of fuel necessary to travel 100 km.
• For the UK only: The "MPG" display shows the distance that can be traveled on 1.0 Imp.gal of fuel.

TIP

If traveling at speeds under 10 km/h (6.0 mi/h), "_ _._" will be displayed.

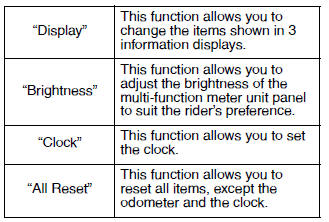

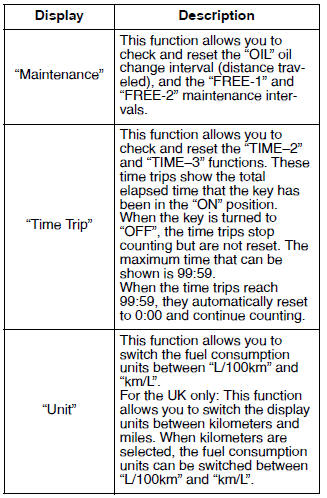

Setting mode

1. Setting mode display

TIP

• The transmission must be in neutral and the vehicle must be stopped to change settings in this mode.
• Shifting the transmission into gear and starting off, or turning the key to "OFF", saves all settings made, then exits the setting mode.

Push and hold the menu switch "MENU" for at least 2 seconds to enter the setting mode. To exit the setting mode and return to the normal display, push and hold the menu switch "MENU" again for at least 2 seconds.

Resetting the maintenance counters

1. Use the select switch to highlight "Maintenance".

2. Push the menu switch "MENU", and then push the "RESET" button to select the item to reset.

3. While the selected item is flashing, push the "RESET" button for at least 2 seconds.

4. Push the menu switch "MENU" to return to the setting mode menu.

Checking and resetting "TIME-2" and "TIME-3"

1. Use the select switch to highlight "Time Trip".

2. Push the menu switch "MENU" to display "TIME-2" and "TIME-3". To reset a time trip, push the "RESET" button to select the item to reset.

3. While the selected item is flashing, push the "RESET" button for at least 2 seconds.

4. Push the menu switch "MENU" to return to the setting mode menu.

Selecting the units

1. Use the select switch to highlight "Unit".

2. Push the menu switch "MENU". The unit setting display will be shown and "km or mile" (for the UK only) or "km/L or L/100km" (except for the UK) will flash in the display.

TIP

• For the UK: Continue with the following steps.
• Except for the UK: Skip steps 3-5.

3. Push the menu switch "MENU". "km" or "mile" will flash in the display.

4. Use the select switch to select "km" or "mile", and then push the menu switch "MENU".

TIP

When "km" is selected, "L/100km" or "km/L" can be set as the fuel consumption units. To set the fuel consumption units, proceed as follows. If "mile" was selected, skip steps 5 and 6.

5. Use the select switch to select "km/L or L/100km".

6. Push the menu switch "MENU", use the select switch to select "L/100km" or "km/L", and then push the menu switch "MENU" again.

7. Use the select switch to highlight " ", and then push the menu switch "MENU" to return to the setting mode menu.

Selecting the display items

1. Use the select switch to highlight "Display".

2. Push the menu switch "MENU", use the select switch to highlight the display to change, and then push the menu switch "MENU" again.

3. Use the select switch to highlight the item to change, and then push the menu switch "MENU".

4. Use the select switch to select the item to show, and then push the menu switch "MENU".

5. When you are finished changing the settings, use the select switch to highlight " ", and then push the menu switch "MENU" to return to the previous display.

6. Use the select switch to highlight " ", and then push the menu switch "MENU" to return to the setting mode menu.

Adjusting the meter panel brightness

1. Use the select switch to highlight "Brightness".

2. Push the menu switch "MENU".

3. Use the select switch to select the desired brightness level, and then push the menu switch "MENU" to return to the setting mode menu.

Setting the clock

1. Use the select switch to highlight "Clock".

2. Push the menu switch "MENU".

3. When the hour digits start flashing, use the select switch to set the hours.

4. Push the menu switch "MENU", and the minute digits start flashing.

5. Use the select switch to set the minutes.

6. Push the menu switch "MENU" to return to the setting mode menu.

Resetting all of the display items

1. Use the select switch to highlight "All Reset".

2. Push the menu switch "MENU".

3. Use the select switch to highlight "YES", and then push the menu switch "MENU".

TIP

The odometer and the clock cannot be reset

Self-diagnosis mode

1. Immobilizer system indicator light " "
2.  Engine trouble warning light " "
3.  Error code display

This model is equipped with a self-diagnosis device for various electrical circuits. If a problem is detected in any of those circuits, the engine trouble warning light will come on and the information display will indicate an error code.

If the information display indicates any error codes, note the code number, and then check the fuel injection system.

The self-diagnosis device also detects problems in the immobilizer system circuits.

If a problem is detected in the immobilizer system circuits, the immobilizer system indicator light will flash and the information display will indicate an error code when the key is turned to "ON".

TIP

If the information display indicates error code 52, this could be caused by transponder interference.

If this error appears, try the following.

1. Use the code re-registering key to start the engine.

TIP

Make sure there are no other immobilizer keys close to the main switch, and do not keep more than one immobilizer key on the same key ring! Immobilizer system keys may cause signal interference, which may prevent the engine from starting.

2. If the engine starts, turn it off, and try starting the engine with the standard keys.

3. If one or both of the standard keys do not start the engine, re-register the standard keys.

If the display indicates any fault codes, note the code number, and then check the vehicle.

NOTICE

If the display indicates an error code, the vehicle should be checked as soon as possible in order to avoid engine damage.

D-mode (drive mode)

D-mode is an electronically controlled engine performance system with three mode selections ("STD", "A", and "B").

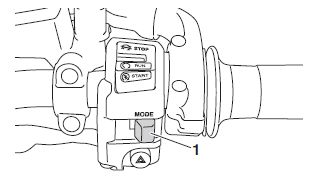

Push the drive mode switch "MODE" to switch between modes.

1. Drive mode switch "MODE"

TIP

Before using D-mode, make sure you understand its operation along with the operation of the drive mode switch.

Mode "STD"

Mode "STD" is suitable for various riding conditions.

This mode allows the rider to enjoy smooth and sporty drivability from the low-speed range to the high-speed range.

Mode "A"

Mode "A" offers a sportier engine response in the low- to mid-speed range compared to mode "STD".

Mode "B"

Mode "B" offers response that is somewhat less sharp compared to mode "STD" for riding situations that require especially sensitive throttle operation.
