Yamaha Tracer MT09TRA - Service manual > Outline of the FI system

The main function of a fuel supply system is to provide fuel to the combustion chamber at the optimum air-fuel ratio in accordance with the engine operating conditions and the atmospheric temperature. In the conventional carburetor system, the air-fuel ratio of the mixture that is supplied to the combustion chamber is created by the volume of the intake air and the fuel that is metered by the jet used in the respective carburetor.

Despite the same volume of intake air, the fuel volume requirement varies by the engine operating conditions, such as acceleration, deceleration, or operating under a heavy load. Carburetors that meter the fuel through the use of jets have been provided with various auxiliary devices, so that an optimum airfuel ratio can be achieved to accommodate the constant changes in the operating conditions of the engine.

As the requirements for the engine to deliver more performance and cleaner exhaust gases increase, it becomes necessary to control the air-fuel ratio in a more precise and finely tuned manner. To accommodate this need, this model has adopted an electronically controlled fuel injection (FI) system, in place of the conventional carburetor system. This system can achieve an optimum air-fuel ratio required by the engine at all times by using a microprocessor that regulates the fuel injection volume according to the engine operating conditions detected by various sensors.

The adoption of the FI system has resulted in a highly precise fuel supply, improved engine response, better fuel economy, and reduced exhaust emissions.

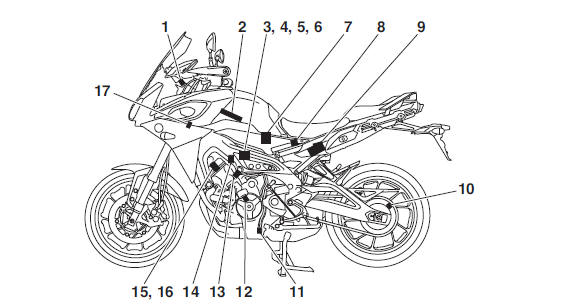

1. Engine trouble warning light
2.  ECU (engine control unit)
3.  Throttle position sensor
4.  Accelerator position sensor
5.  Intake air pressure sensor
6.  Throttle servo motor
7.  Fuel pump
8.  Lean angle sensor
9.  Battery
10. Rear wheel sensor
11. O2 sensor
12. Crankshaft position sensor
13. Coolant temperature sensor
14. Injector
15. Ignition coil
16. Spark plug
17. Intake air temperature sensor

FI system

The fuel pump delivers fuel to the fuel injector via the fuel filter. The pressure regulator maintains the fuel pressure that is applied to the fuel injector at a certain level. Accordingly, when the energizing signal from the ECU energizes the fuel injector, the fuel passage opens, causing the fuel to be injected into the intake manifold only during the time the passage remain open.

Therefore, the longer the length of time the fuel injector is energized (injection duration), the greater the volume of fuel that is supplied. Conversely, the shorter the length of time the fuel injector is energized (injection duration), the lesser the volume of fuel that is supplied.

The injection duration and the injection timing are controlled by the ECU. Signals that are input from the throttle position sensor, accelerator position sensor, coolant temperature sensor, lean angle sensor, crankshaft position sensor, intake air pressure sensor, intake air temperature sensor, rear wheel sensor and O2 sensor enable the ECU to determine the injection duration. The injection timing is determined through the signals from the crankshaft position sensor. As a result, the volume of fuel that is required by the engine can be supplied at all times in accordance with the driving conditions.

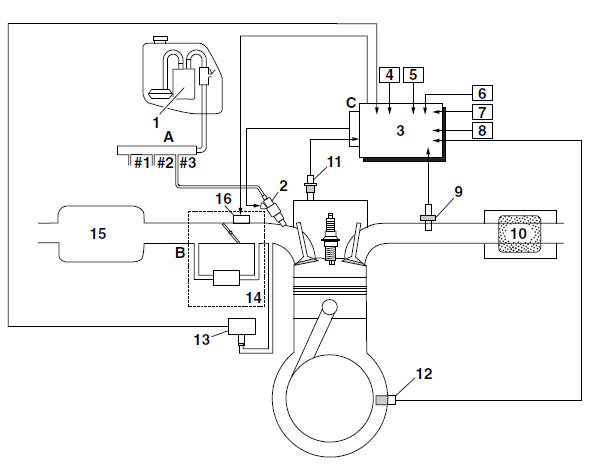

Illustration is for reference only.

1. Fuel pump
2.  Injector
3. ECU (engine control unit)
4. Throttle position sensor
5.  Accelerator position sensor
6. Rear wheel sensor
7. Lean angle sensor
8. Intake air temperature sensor
9. O2 sensor
10. Catalytic converter
11. Coolant temperature sensor
12. Crankshaft position sensor
13. Intake air pressure sensor
14. Throttle body
15. Air filter case
16. Throttle servo motor

1. Fuel system
2. Air system
3. Control system

YCC-T (yamaha chip controlled throttle)

Mechanism characteristics

Yamaha developed the YCC-T system employing the most advanced electronic control technologies.

Electronic control throttle systems have been used on automobiles, but Yamaha has developed a faster, more compact system specifically for the needs of a sports motorcycle. The Yamaha-developed system has a high-speed calculating capacity that produces computations of running conditions every 1/1000th of a second.

The YCC-T system is designed to respond to the throttle action of the rider by having the ECU instantaneously calculate the ideal throttle valve opening and generate signals to operate the motor-driven throttle valves and thus actively control the intake air volume.

The ECU contains two CPUs with a capacity about five times that of conventional units, making it possible for the system to respond extremely quickly to the slightest adjustments made by the rider. In particular, optimized control of the throttle valve opening provides the optimum volume of intake air for easy-to-use torque, even in a high-revving engine.

Aims and advantages of using YCC-T

• Increased engine power

By shortening the air intake path, higher engine speed is possible Increased engine power.

• Improved driveability

Air intake volume is controlled according to the operating conditions Improved throttle response to meet engine requirement.

Driving force is controlled at the optimal level according to the transmission gear position and engine speed Improved throttle control.

• Engine braking control

Due to the throttle control, optimal engine braking is made possible.

• Simplified idle speed control (ISC) mechanism

The bypass mechanism and ISC actuator are eliminated A simple mechanism is used to maintain a steady idle speed.

• Reduced weight

Compared to using a sub-throttle mechanism, weight is reduced.

1. Accelerator position sensor
2. Throttle servo motor
3. Throttle position sensor
4. Throttle valves

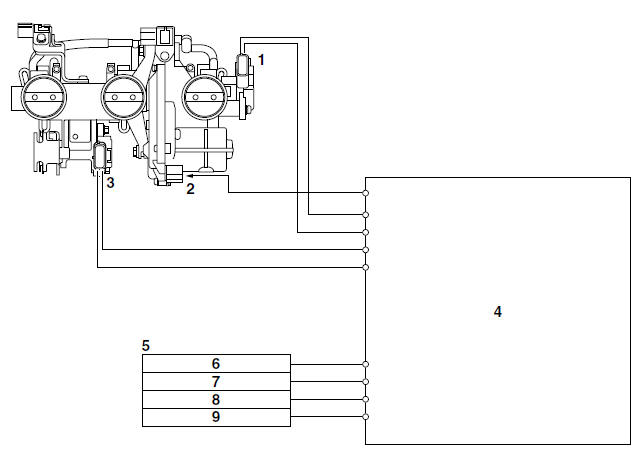

YCC-T system outline

1. Throttle position sensor
2. Throttle servo motor
3. Accelerator position sensor
4. ECU (engine control unit)
5. Sensor input
6. Gear position switch
7. Crankshaft position sensor
8. Rear wheel sensor
9. Coolant temperature sensor

OUTLINE OF THE ABS

1. The Yamaha ABS (anti-lock brake system) features an electronic control system, which acts on the front and rear brakes independently.
2. The ABS features a compact and lightweight design to help maintain the basic maneuverability of the vehicle.
3. The hydraulic unit assembly, which is the main component of the ABS, is centrally located on the vehicle to increase mass centralization.

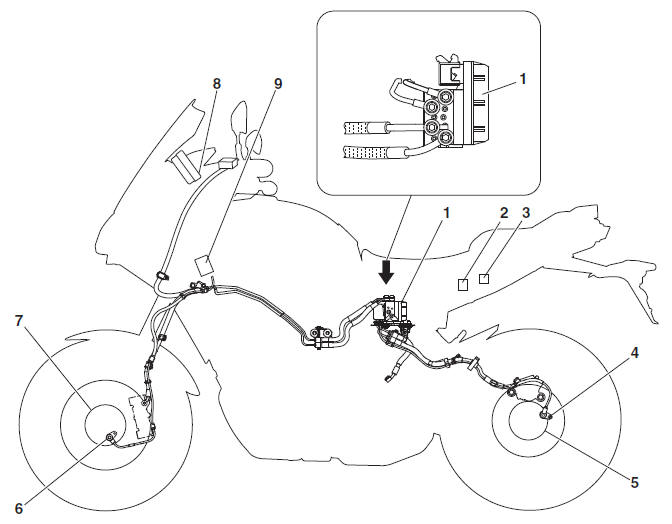

ABS layout

1. Hydraulic unit assembly
2. Fuse box 3
3. ABS test coupler
4. Rear wheel sensor
5. Rear wheel sensor rotor
6. Front wheel sensor
7. Front wheel sensor rotor
8. ABS warning light
9. Fuse box 2

ABS

The operation of the Yamaha ABS brakes is the same as conventional brakes on other vehicles, with a brake lever for operating the front brake and a brake pedal for operating the rear brake.

When wheel lock is detected during emergency braking, hydraulic control is performed by the hydraulic system on the front and rear brakes independently.

Useful terms

• Wheel speed: The rotation speed of the front and rear wheels.
• Chassis speed: The speed of the chassis.

  When the brakes are applied, wheel speed and chassis speed are reduced. However, the chassis travels forward by its inertia even though the wheel speed is reduced.

• Brake force: The force applied by braking to reduce the wheel speed.
• Wheel lock: A condition that occurs when the rotation of one or both of the wheels has stopped, but the vehicle continues to travel.
• Side force: The force on the tires which supports the vehicle when cornering.
• Slip ratio: When the brakes are applied, slipping occurs between the tires and the road surface. This causes a difference between the wheel speed and the chassis speed.

  Slip ratio is the value that shows the rate of wheel slippage and is defined by the following formula

0 %: There is no slipping between the wheel and the road surface. The chassis speed is equal to the wheel speed.

100 %: The wheel speed is "0", but the chassis is moving (i.e., wheel lock).

Brake force and vehicle stability

When the brake pressure is increased, wheel speed is reduced. Slipping occurs between the tire and the road surface and brake force is generated. The limit of this brake force is determined by the friction force between the tire and the road surface and is closely related to wheel slippage. Wheel slippage is represented by the slip ratio.

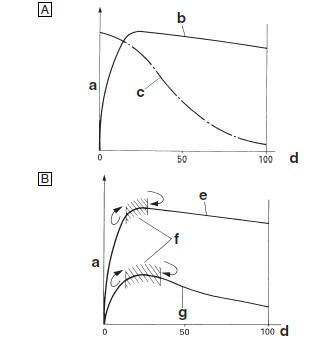

Side force is also closely related to wheel slippage. See figure "A". If the brakes are applied while keeping the proper slip ratio, it is possible to obtain the maximum brake force without losing much side force.

ABS allows full use of the tires' capabilities even on slippery road surfaces or less slippery road surfaces.

See figure "B".

1. Friction force between the tire and road surface
2. Brake force
3. Side force
4. Slip ratio (%)
5. Less slippery road surface
6. Controlling zone
7. Slippery road surface

Wheel slip and hydraulic control

The ABS ECU calculates the wheel speed of each wheel according to the rotation signal received from the front and rear wheel sensors. In addition, the ABS ECU calculates the vehicle chassis speed and the rate of speed reduction based on the wheel speed values.

The difference between the chassis speed and the wheel speed calculated in the slip ratio formula is equal to the wheel slip. When the wheel speed is suddenly reduced, the wheel has a tendency to lock.

When the wheel slip and the wheel speed reduction rate exceed the preset values, the ABS ECU determines that the wheel has a tendency to lock.

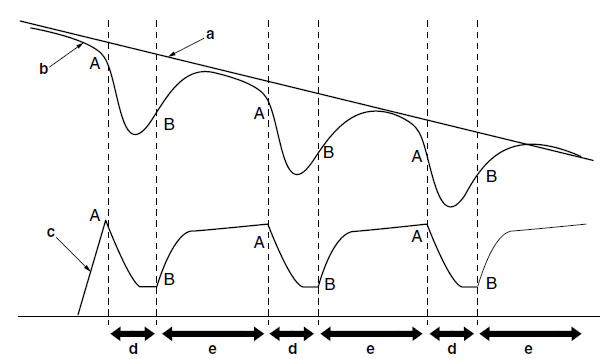

If the slip is large and the wheel has a tendency to lock (point A in the following figure), the ABS ECU reduces the brake fluid pressure in the brake caliper. Once the ABS ECU determines that the tendency of the wheel to lock has diminished after the brake fluid pressure is reduced, it increases the hydraulic pressure (point B in the following figure). The hydraulic pressure is initially increased quickly, and then it is increased gradually.

1. Chassis speed
2. Wheel speed
3. Brake force
4. Depressurizing phase
5. Pressurizing phase

ABS operation and vehicle control

If the ABS starts operating, there is a tendency of the wheel to lock, and the vehicle is approaching the limit of control. To make the rider aware of this condition, the ABS has been designed to generate a reaction-force pulsating action in the brake lever and brake pedal independently.

TIP

When the ABS is activated, a pulsating action may be felt at the brake lever or brake pedal, but this does not indicate a malfunction.

The higher the side force on a tire, the less traction there is available for braking. This is true whether the vehicle is equipped with ABS or not. Therefore, sudden braking while cornering is not recommended.

Excessive side force, which ABS cannot prevent, could cause the tire to slip sideways.

WARNING

The braking of the vehicle, even in the worst case, is principally executed when the vehicle is advancing straight ahead. During a turn, sudden braking is liable to cause a loss of traction of the tires. Even in vehicles equipped with ABS, overturning of the vehicle cannot be prevented if it is braked suddenly.

The ABS functions to prevent the tendency of the wheel to lock by controlling the brake fluid pressure.

However, if there is a tendency of the wheel to lock on a slippery road surface, due to engine braking, the ABS may not be able to prevent the wheel from locking.

WARNING

The ABS controls only the tendency of the wheel to lock caused by applying the brakes. The ABS cannot prevent wheel lock on slippery surfaces, such as ice, when it is caused by engine braking, even if the ABS is operating.

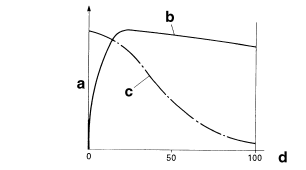

1. Friction force between the tire and road surface
2.  Brake force
3. Side force
4. Slip ratio (%)

Electronic ABS features

The Yamaha ABS (anti-lock brake system) has been developed with the most advanced electronic technology.

The ABS control is processed with good response under various vehicle travel conditions.

The ABS also includes a highly developed self-diagnosis function. The ABS detects any problem condition and allows normal braking even if the ABS is not operating properly.

When this occurs, the ABS warning light on the meter assembly comes on.

The ABS stores the fault codes in the memory of the ABS ECU for easy problem identification and troubleshooting.

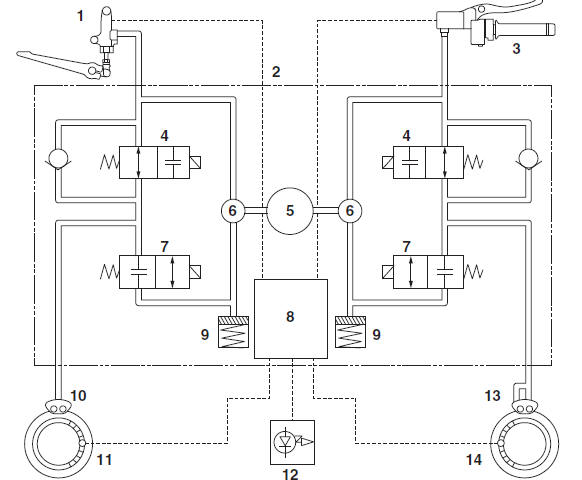

ABS block diagram

1. Rear brake master cylinder
2. Hydraulic unit assembly
3. Front brake master cylinder
4. Inlet solenoid valve
5. ABS motor
6. Hydraulic pump
7. Outlet solenoid valve
8. ABS ECU
9. Buffer chamber
10. Rear brake caliper
11. Rear wheel sensor
12. ABS warning light
13. Front brake caliper
14. Front wheel sensor
