Yamaha Tracer MT09TRA - Service manual > Periodic maintenance
Introduction
This chapter includes all information necessary to perform recommended checks and adjustments. If followed, these preventive maintenance procedures will ensure more reliable vehicle operation, a longer service life and reduce the need for costly overhaul work. This information applies to vehicles already in service as well as to new vehicles that are being prepared for sale. All service technicians should be familiar with this entire chapter.
TIP
- The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a mileage-based maintenance, is performed instead.
- From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
- Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills.

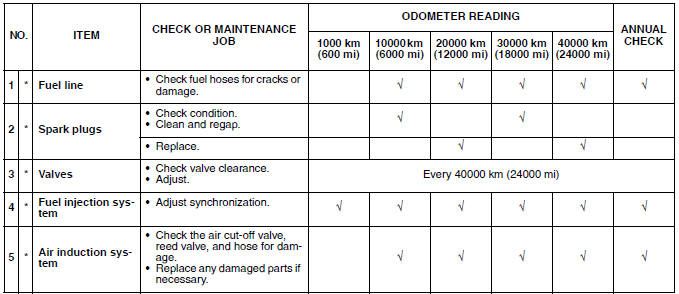

PERIODIC MAINTENANCE CHART FOR THE EMISSION CONTROL SYSTEM

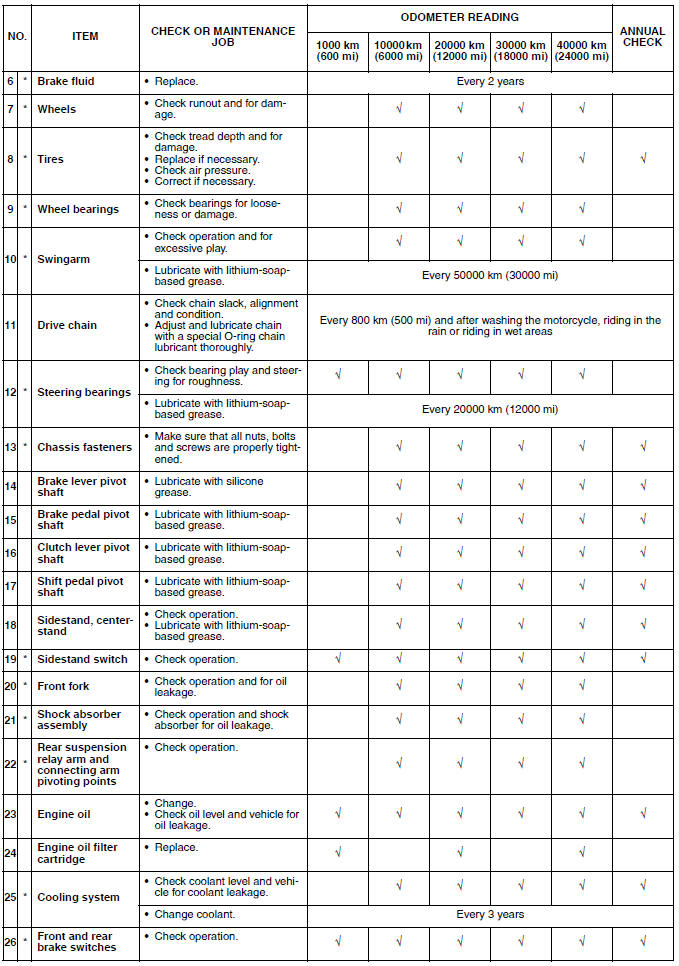

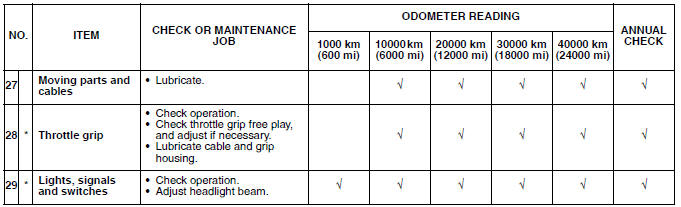

GENERAL MAINTENANCE AND LUBRICATION CHART
TIP
Air filter
- This model's air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with compressed air to avoid damaging it.
- The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
Hydraulic brake service
- Regularly check and, if necessary, correct the brake fluid level.
- Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid.
- Replace the brake hoses every four years and if cracked or damaged.
Checking the fuel line
The following procedure applies to all of the fuel, drain and breather hoses.
1. Remove:
- Fuel tank front cover/Front side panel/Front side cowling Refer to "GENERAL CHASSIS (2)"
- Passenger seat/Rider seat Refer to "GENERAL CHASSIS (1)"
- Fuel tank cover Refer to "GENERAL CHASSIS (3)"
- Fuel tank Refer to "FUEL TANK"
2. Check:

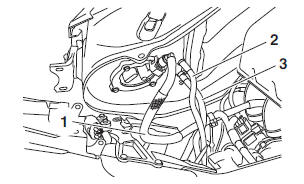

- Fuel hose "1"
- Fuel tank breather hose "2"
- Fuel tank drain hose "3"
Cracks/damage → Replace.
Loose connection → Connect properly.
NOTICE
Make sure the fuel tank breather hose is routed correctly.
TIP
Before removing the fuel hoses, place a few rags in the area under where it will be removed.
3. Install:
- Fuel tank Refer to "FUEL TANK"
- Fuel tank cover Refer to "GENERAL CHASSIS (3)"
- Rider seat/Passenger seat Refer to "GENERAL CHASSIS (1)"
- Front side cowling/Front side panel/Fuel tank front cover Refer to "GENERAL CHASSIS (2)"
Checking the spark plugs
The following procedure applies to all of the spark plugs.
1. Remove:
- Fuel tank front cover/Front side panel/Front side cowling Refer to "GENERAL CHASSIS (2)"
- Passenger seat/Rider seat Refer to "GENERAL CHASSIS (1)"
- Fuel tank cover Refer to "GENERAL CHASSIS (3)"
- Fuel tank Refer to "FUEL TANK"
- Air filter case Refer to "GENERAL CHASSIS (3)"
- Air cut-off valve Refer to "AIR INDUCTION SYSTEM"
2. Remove:
- Ignition coils
- Spark plugs
NOTICE
Before removing the spark plugs, blow away any dirt accumulated in the spark plug wells with compressed air to prevent it from falling into the cylinders.
3. Check:
- Spark plug type Incorrect → Change.
Manufacturer/model NGK/CPR9EA9
4. Check:
- Electrode "1" Damage/wear → Replace the spark plug.
- Insulator "2" Abnormal color → Replace the spark plug.
Normal color is medium-to-light tan.
5. Clean:
- Spark plug (with a spark plug cleaner or wire brush)
6. Measure:

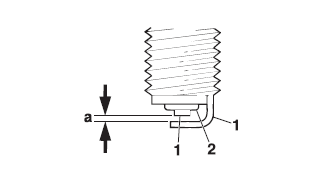

- Spark plug gap "a" (with a wire thickness gauge) Out of specification → Regap.
Spark plug gap 0.8-0.9 mm (0.031-0.035 in)
7. Install:
- Spark plugs
- Ignition coils
Spark plug 13 Nm (1.3 m*kgf, 9.4 ft*lbf)
TIP
Before installing the spark plug, clean the spark plug and gasket surface.
8. Install:
- Air cut-off valve Refer to "AIR INDUCTION SYSTEM"
- Air filter case Refer to "GENERAL CHASSIS (3)"
- Fuel tank Refer to "FUEL TANK"
- Fuel tank cover Refer to "GENERAL CHASSIS (3)"
- Rider seat/Passenger seat Refer to "GENERAL CHASSIS (1)"
- Front side cowling/Front side panel/Fuel tank front cover Refer to "GENERAL CHASSIS (2)"
