Yamaha Tracer MT09TRA - Service manual > Quick fasteners

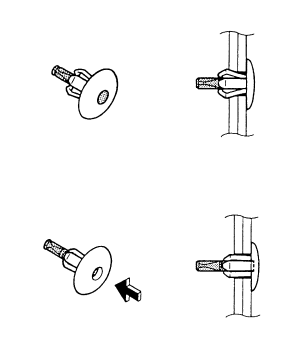

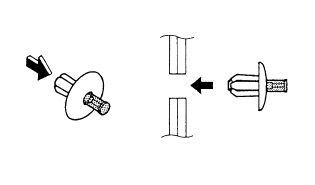

Rivet type

1. Remove:

• Quick fastener

TIP

To remove the quick fastener, push its pin with a screwdriver, then pull the fastener out.

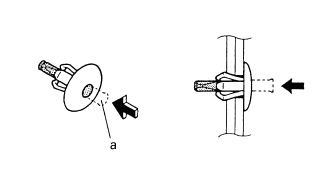

2. Install:

• Quick fastener

TIP

To install the quick fastener, push its pin so that it protrudes from the fastener head, then insert the fastener into the part to be secured and push the pin "a" in with a screwdriver. Make sure that the pin is flush with the fastener's head.

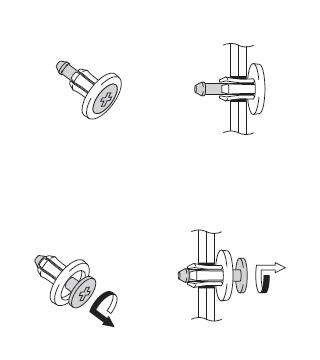

Screw type

1. Remove:

• Quick fastener

TIP

To remove the quick fastener, loosen the screw with a screwdriver, then pull the fastener out.

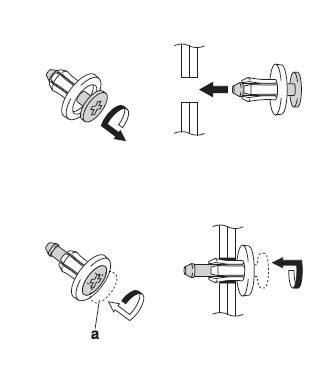

2. Install:

• Quick fastener

TIP

To install the quick fastener, insert the fastener into the part to be secured and tighten the screw "a".
