Yamaha Tracer MT09TRA - Service manual > Rear brake

Introduction

WARNING

Disc brake components rarely require disassembly.

Therefore, always follow these preventive measures:

• Never disassemble brake components unless absolutely necessary.
• If any connection on the hydraulic brake system is disconnected, the entire brake system must be disassembled, drained, cleaned, properly filled, and bled after reassembly.
• Never use solvents on internal brake components.
• Use only clean or new brake fluid for cleaning brake components.
• Brake fluid may damage painted surfaces and plastic parts. Therefore, always clean up any spilt brake fluid immediately.
• Avoid brake fluid coming into contact with the eyes as it can cause serious injury.

FIRST AID FOR BRAKE FLUID ENTERING THE EYES:

• Flush with water for 15 minutes and get immediate medical attention.

• Checking the rear brake disc

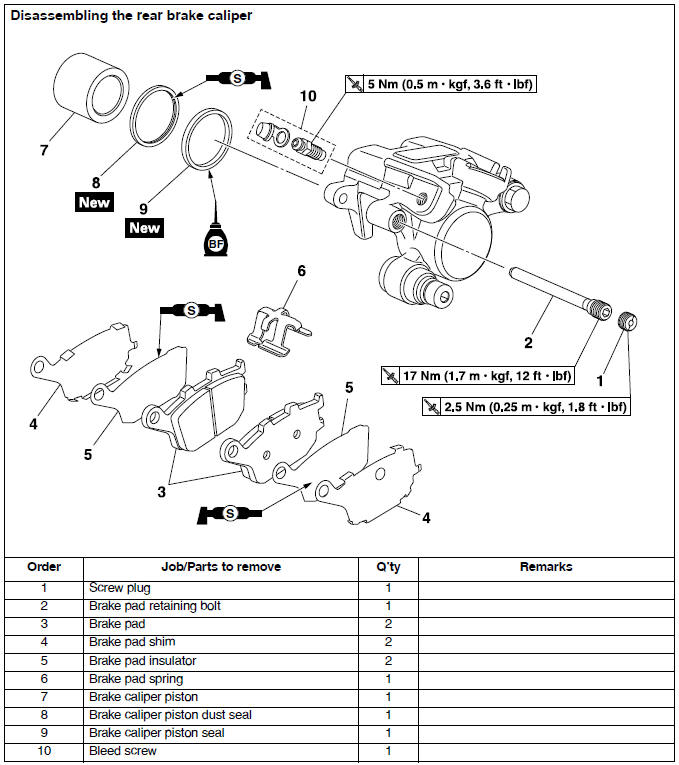

• Disassembling the rear brake caliper

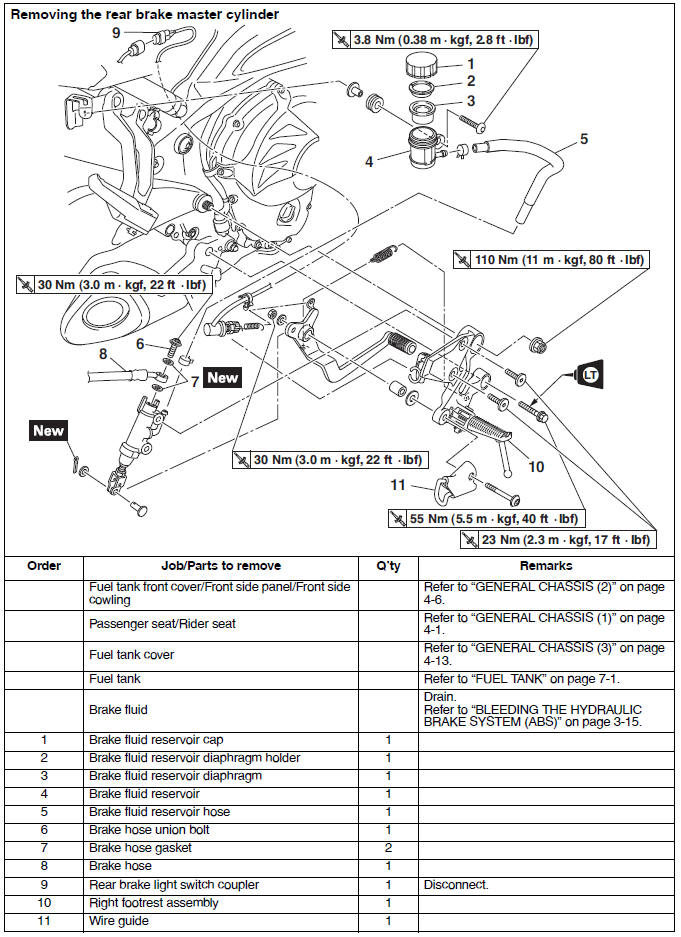

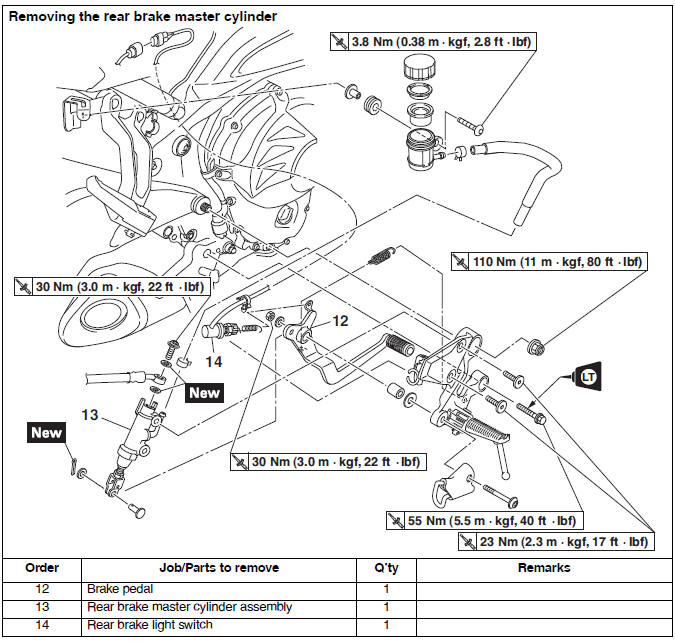

• Removing the rear brake master cylinder
