Peugeot Kisbee - Service manual > Replacing the clutch lining assembly

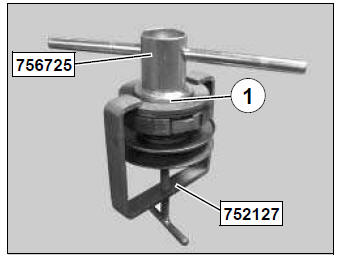

• Compress the clutch drive pulley and driven pulley assembly with the tool P/N 752127 clamped in the jaws of a vice.
• Remove nut (1) using spanner P/N 756725.
• Slacken tool P/N 752127.

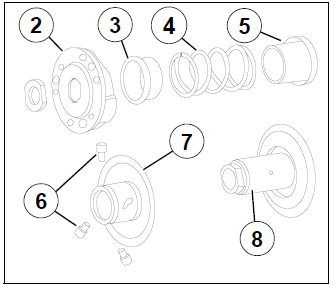

• Remove the clutch linings (2), the upper centring sleeve (3), the spring (4), and the lower centring sleeve (5).
• Remove the 3 pins (6) from the variable speed drive seat.
• Separate the fixed (7) and rotating (8) flanges.
• Make sure surface of the plates in contact with the belt does not show any cracks or signs of abnormal wear.

Reassembly

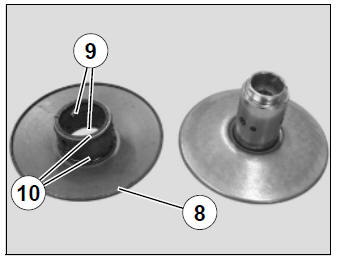

• After checking the 2 lip seals (9) and the 2 O-rings (10) of the rotating flange (8) are in good condition, grease the governor seat 3 pins (6) (high temperature grease) and assemble the parts in reverse order to removal.
• Compress the clutch drive pulley and driven pulley assembly with the tool P/N 752127 clamped in the jaws of a vice.
• Tighten the nut (1).

Tightening torque: 50 Nm.

Before fitting the clutch drive pulley and driven pulley to the input shaft, fit the belt into the pulley bottom by opening the flanges by hand.

• Fit the clutch drive pulley and driven pulley assembly.
• Fit the clutch cover.
• Fit and tighten the nut.

Tightening torque: 50 Nm.
