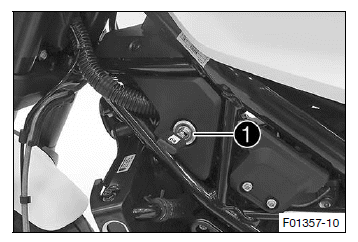

Husqvarna 401 Vitpilen - Owner's Manual > Seat lock

The seat lock 1 is located at the front left below the fuel tank.

The seat lock can be unlocked using the ignition key.

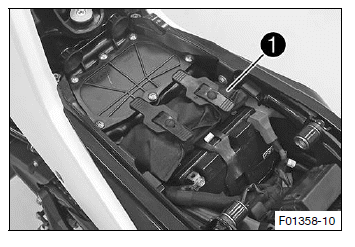

Tool set

The tool set 1 is located under the seat.

Grab handle

The grab handle 1 is used for maneuvering the motorcycle.

If you carry a passenger, the passenger can hold onto the grab handles during the trip.

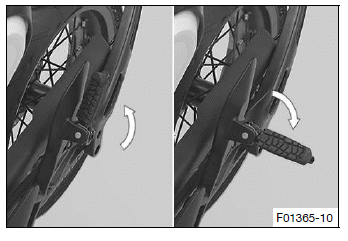

Passenger foot pegs

The passenger foot pegs can be folded up and down.

Possible states

• Passenger foot pegs folded up - For operation without a passenger.
• Passenger foot pegs folded down - For operation with a passenger.

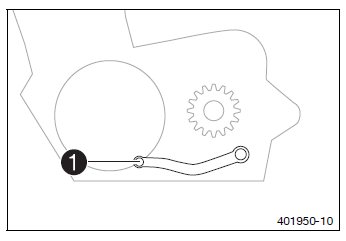

Shift lever

Shift lever 1 is mounted on the left side of the engine.

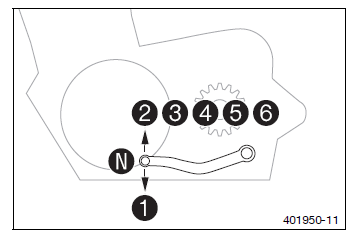

The gear positions can be seen in the photograph.

The neutral or idle position is between the first and second gears.

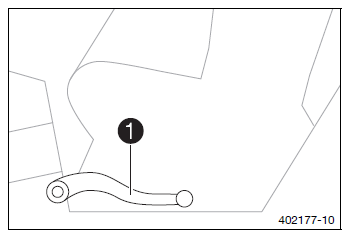

Foot brake lever

Foot brake lever 1 is located in front of the right footrest.

The foot brake lever is used to activate the rear brake.

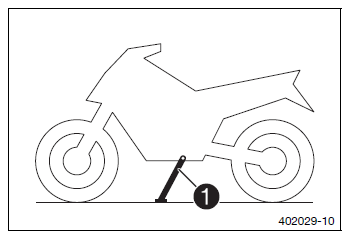

Side stand

Side stand 1 is located on the left of the vehicle.

The side stand is used for parking the motorcycle.

Info

The side stand must be folded up during motorcycle use.

Side stand is coupled with the safety start system; follow the riding instructions.

Possible states

• Side stand folded out - The vehicle can be supported on the side stand. The safety start system is enabled.
• Side stand folded in - This position is mandatory when riding the motorcycle. The safety start system is disabled.
