Husqvarna 401 Vitpilen - Owner's Manual > Controls
Controls

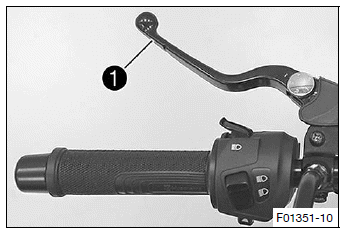

Clutch lever
The clutch lever 1 is fitted on the left side of the handlebar.

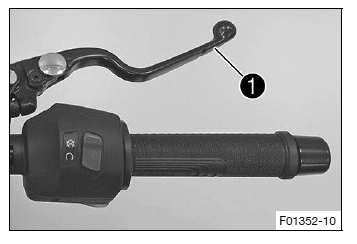

Hand brake lever
The hand brake lever 1 is fitted on the right side of the handlebar.
The front brake is engaged using the hand brake lever.

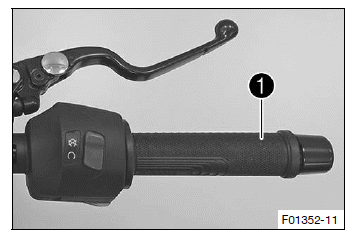

Throttle grip
The throttle grip 1 is fitted on the right side of the handlebar.
- Switches on the left side of the handlebar
- Switches on the right side of the handlebar
- Locking the steering
- Seat lock
