View of vehicle, serial numbers

View of vehicle

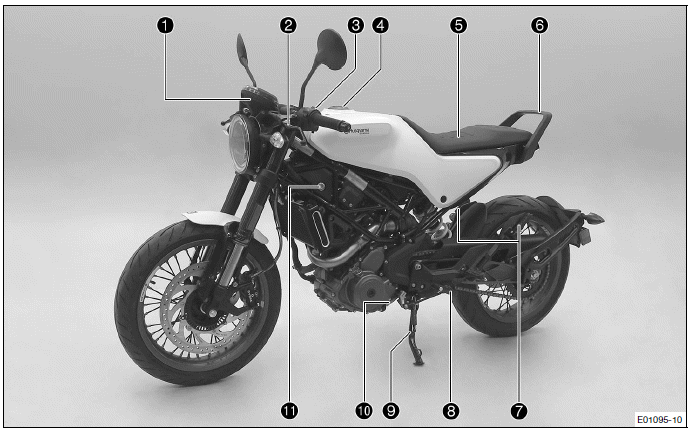

View of vehicle, front left (example)

View of vehicle

  1. Combination instrument
  2. Clutch lever
  3. High beam flasher button
    Light switch
    Turn signal switch
    Horn button
  4. Filler cap
  5. Seat
  6. Grab handle
  7. Passenger foot pegs
  8. Shift lever
  9. Side stand
  10. Engine number
  11. Seat lock

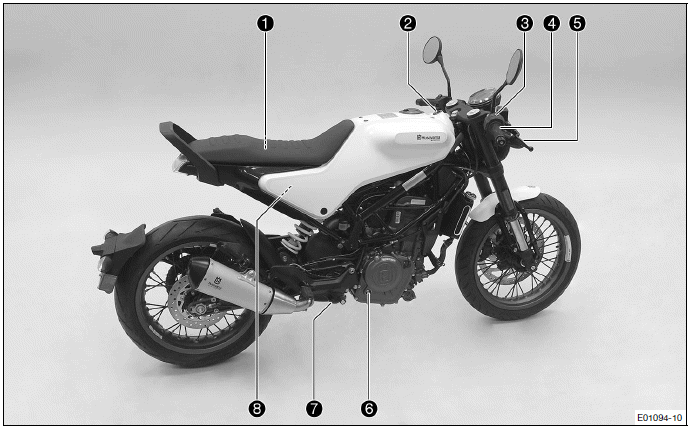

View of vehicle, rear right (example)

View of vehicle

  1. Tool set
  2. Ignition/steering lock
  3. Emergency OFF switch
    Electric starter button
  4. Throttle grip
  5. Hand brake lever
  6. Level viewer, engine oil
  7. Foot brake lever
  8. Compensating tank for coolant

Serial numbers

Chassis number

Serial numbers

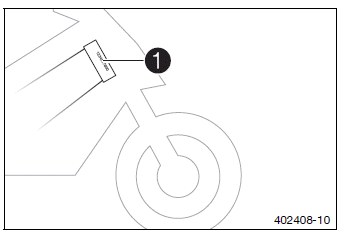

The chassis number 1 is stamped on the right side of the steering head.

Type label

Serial numbers

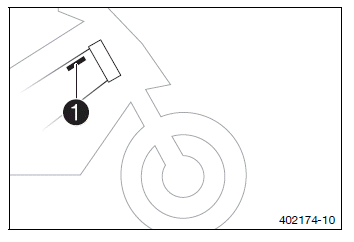

The USA type label 1 is on the right of the frame behind the steering head.

Serial numbers

The Canada type label 2 is on the left of the frame behind the steering head.

Engine number

Serial numbers

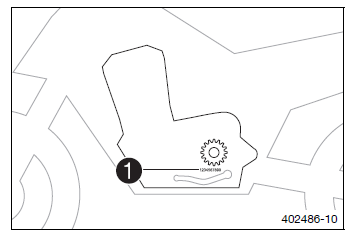

The engine number 1 is stamped on the left side of the engine under the engine sprocket.

Key number

Serial numbers

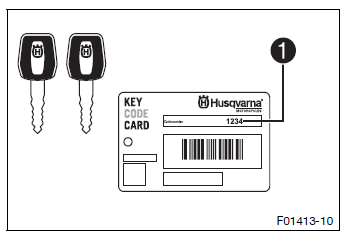

The key number 1 can be found on the KEYCODECARD.

Info

You need the key number to order a spare key. Keep the KEYCODECARD in a safe place.
