Husqvarna 401 Vitpilen - Owner's Manual > Switches on the left side of the handlebar

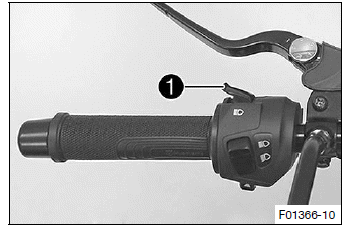

High beam flasher button

The high beam flasher button 1 is fitted on the left side of the handlebar.

Possible states

• High beam flasher button in neutral position
• High beam flasher button pressed - In this position, the headlight flasher (high beam) is actuated.

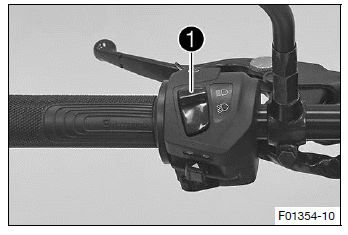

Light switch

Light switch 1 is fitted on the left side of the handlebar.

Possible states

Low beam on - The light switch is turned downward.

In this position, the low beam and tail light are switched on.

High beam on - The light switch is turned upwards.

In this position, the low beam, the high beam and the tail light are switched on.

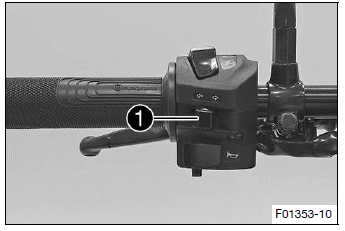

Turn signal switch

Turn signal switch 1 is fitted on the left side of the handlebar.

Possible states

Left turn signal, on - Turn signal switch pressed to the left. The turn signal switch returns automatically to the central position after use.

Right turn signal, on - Turn signal switch pressed to the right. The turn signal switch returns automatically to the central position after use.

To switch off the turn signal, press the turn signal switch towards the switch case.

Horn button

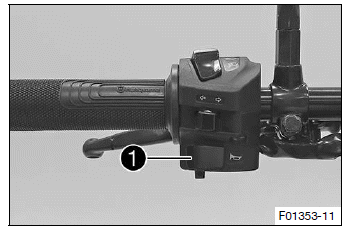

The horn button 1 is fitted on the left side of the handlebar.

Possible states

• Horn button in neutral position
• Horn button pressed - The horn is operated in this position.
