Husqvarna 401 Vitpilen - Owner's Manual > Switches on the right side of the handlebar

Controls / Switches on the right side of the handlebar

Emergency OFF switch

Controls

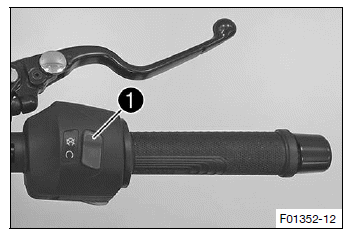

The emergency OFF switch 1 is fitted on the right side of the handlebar.

Possible states

Controls Emergency OFF switch off - In this position, the ignition circuit is interrupted, a running engine stops, and a non-running engine cannot be started.

Controls Emergency OFF switch on - This position is required for operation; the ignition circuit is closed.

Electric starter button

Controls

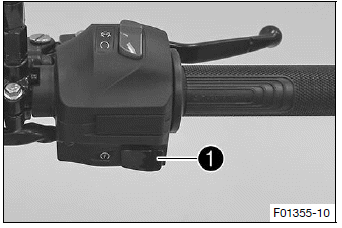

The electric starter button 1 is fitted on the right side of the handlebar.

Possible states

Ignition/steering lock

Controls

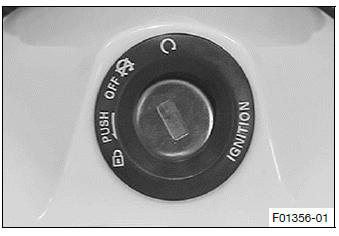

The ignition/steering lock is in front of the upper triple clamp.

Possible states

ControlsIgnition off OFF - In this position, the ignition circuit is interrupted, a running engine stops, and a non-running engine will not start. The ignition key can be removed.

Controls   Ignition on - In this position, the ignition circuit is closed and the engine can be started.

Controls Steering locked - In this position, the ignition circuit is interrupted and the steering locked. The ignition key can be removed.
