View of vehicle

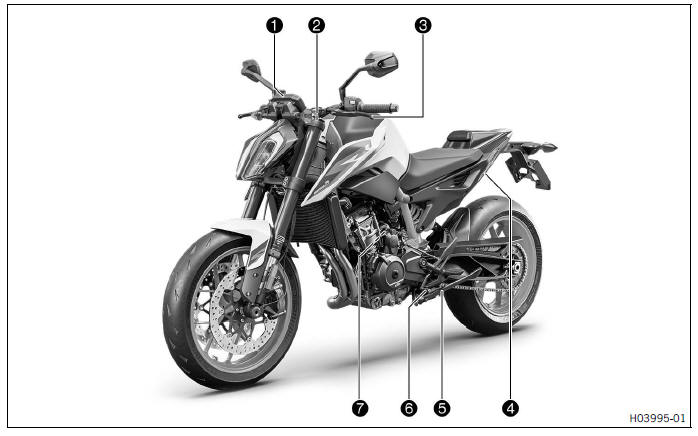

View of vehicle, front left (example)

1. Combination instrument
2. Ignition and steering lock
3. Clutch lever
4. Seat lock
5. Side stand
6. Shift lever
7. Engine number

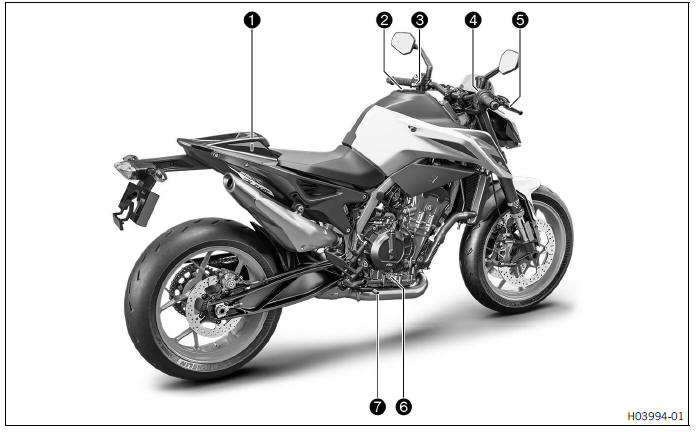

View of vehicle, rear right (example)

1. Tool set
2. Fuel tank filler cap
3.
   • Light switch
   • Turn signal switch
   • Horn button
4. Emergency OFF switch/electric starter button
5. Hand brake lever
6. Level viewer, engine oil
7. Foot brake lever

Serial numbers

Vehicle identification number

The vehicle identification number 1 is stamped on the right side of the steering head.

Type label

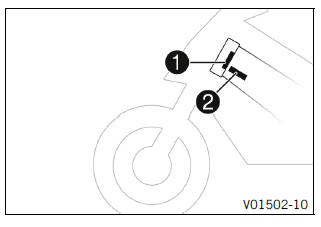

The type label USA 1 is located on the steering head on the left.

The type label Canada 2 is located on the frame behind the steering head at the top left.

Key number

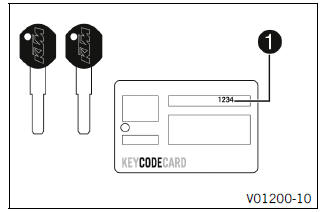

The key number 1 can be found on the KEYCODECARD.

Info

You need the key number to order a spare key. Keep the KEYCODECARD in a safe place.

Engine number

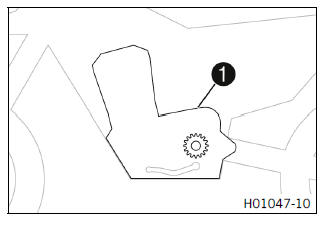

The engine number 1 is stamped onto the engine case at the top.

Fork part number

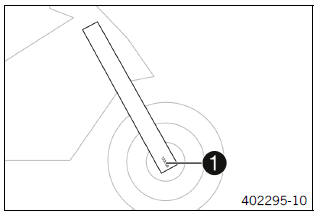

The fork part number 1 is stamped on the inner side of the fork stub.

Shock absorber article number

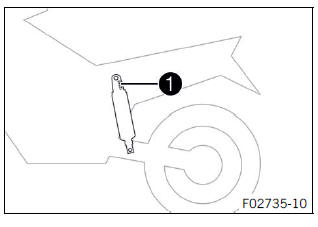

Shock absorber article number 1 is attached the top of the shock absorber.

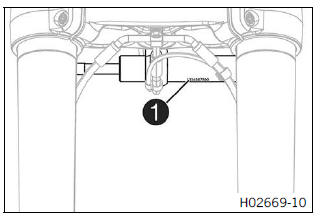

Steering damper article number

Steering damper article number 1 is embossed on the underside of the steering damper.
