KTM 890 Duke R - Owner's Manual > Controls
Controls

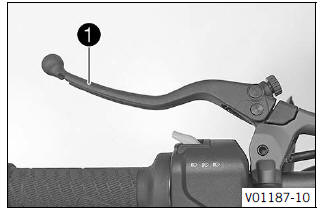

Clutch lever
Clutch lever 1 is fitted on the handlebar on the left.

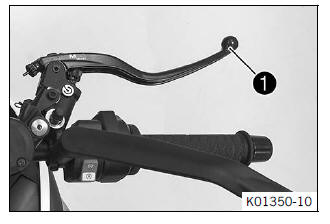

Hand brake lever
The hand brake lever 1 is located on the right side of the handlebar.
The front brake is engaged using the hand brake lever.

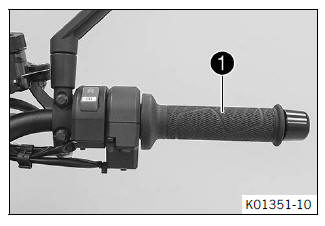

Throttle grip
The throttle grip 1 is fitted on the right side of the handlebar.
- Switches on the left side of the handlebar
- Switches on the right side of the handlebar
- Closing the fuel tank filler cap
- Shift lever
