KTM 890 Duke R - Owner's Manual > Closing the fuel tank filler cap

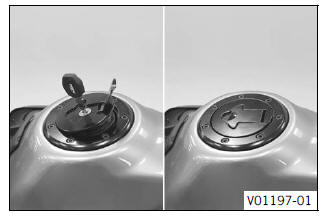

• Fold down the fuel tank filler cap.
• Turn the ignition key 90º clockwise.
• Push down the fuel tank filler cap and turn the ignition key counterclockwise until the lock closes.

Warning

Fire hazard Fuel is highly flammable, toxic and a health hazard.

• Check that the fuel tank filler cap is locked correctly after closing.
• Change your clothing if fuel spills on them.
• Rinse the affected area immediately with plenty of water in the event of contact with the skin.



• Remove the ignition key and close the cover.

Seat lock

''

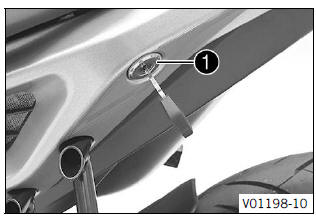

• The seat lock 1 is located on the left side of the vehicle.

  It can be locked with the ignition key.

Tool set

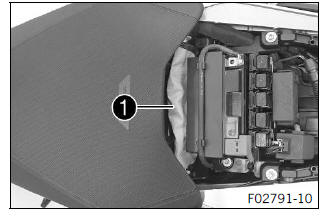

The tool set 1 is located under the passenger seat.

Grab handle

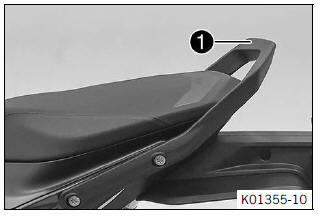

The grab handle 1 is used for maneuvering the motorcycle.

If you carry a passenger, the passenger can hold onto the grab handles during the trip.

Info

The vehicle has been set up in the factory for one-person operation. Only an authorized KTM workshop may carry out the conversion.

The components for one-person operation and for operation with a passenger are included in the scope of supply.

Always ensure that the legal requirements are observed, e.g., entry in the vehicle documents if applicable.

Passenger foot pegs

The passenger foot pegs can be folded up and down.

Info

The vehicle has been set up in the factory for one-person operation. Only an authorized KTM workshop may carry out the conversion.

The components for one-person operation and for operation with a passenger are included in the scope of supply.

Always ensure that the legal requirements are observed, e.g., entry in the vehicle documents if applicable.

Possible states

• Passenger foot pegs folded up - For operation without a passenger.
• Passenger foot pegs folded down - For operation with a passenger.
