KTM 890 Duke R - Owner's Manual > Switches on the right side of the handlebar

Emergency OFF switch/electric starter button

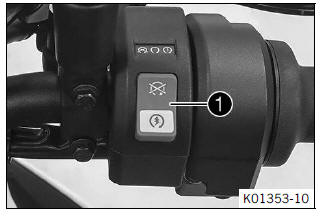

The emergency OFF switch/electric starter button 1 is located on the right side of the combination switch.

Possible states

Emergency OFF switch/electric starter button off (top position) - In this position, the ignition circuit is interrupted, a running engine stops, and a non-running engine cannot be started. A message appears on the display.

Emergency OFF switch/electric starter button on (middle position) - This position is required for operation; the ignition circuit is closed.

Starter motor on (lower position) - In this position, the starter motor is actuated.

Ignition and steering lock

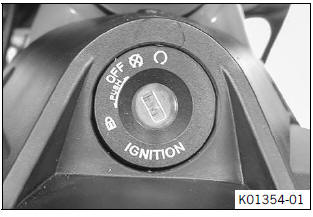

The ignition and steering lock is located in front of the upper triple clamp.

Possible states

Ignition off - In this position, the ignition circuit is interrupted, a running engine stops, and a non-running engine will not start. The ignition key can be removed.

Ignition on - In this position, the ignition circuit is closed and the engine can be started.

Steering locked - In this position, the ignition circuit is interrupted and the steering locked. The ignition key can be removed.

Opening fuel tank filler cap

Danger

Fire hazard Fuel is highly flammable.

• The fuel in the fuel tank expands when warm and can escape if overfilled.
• Do not fuel the vehicle in the vicinity of open flames.
• Switch off the engine for refueling.
• Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
• If any fuel is spilled, wipe it off immediately.
• Observe the specifications for refueling.

Warning

Danger of poisoning Fuel is poisonous and a health hazard.

• Avoid skin, eye and clothing contact with fuel.
• Immediately consult a doctor if you swallow fuel.
• Do not inhale fuel vapors.
• In case of skin contact, rinse the affected area with plenty of water.
• Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
• Change your clothing in case of fuel spills on them.
• Keep fuels correctly in a suitable canister, and out of the reach of children.

Note

Environmental hazard Improper handling of fuel is a danger to the environment.

• Do not allow fuel to enter the groundwater, the soil, or the sewage system.

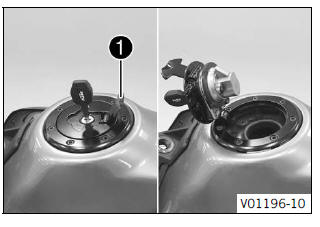

• Lift cover 1 of the fuel tank filler cap and insert the ignition key into the lock.

Note

Danger of damage The ignition key may break if overloaded.

Damaged ignition keys must be replaced.

• Push down on the fuel tank filler cap to take pressure off the ignition key.

• Turn the ignition key 90º clockwise.
• Lift the fuel tank filler cap.
