KTM 890 Duke R - Owner's Manual > Changing the ABS fuses
Warning
Fire hazard Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
Info
Two fuses for the ABS are located under the passenger seat. These fuses protect the return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
Preparatory work
- Remove the passenger seat.
To change the fuse of the ABS hydraulic unit:

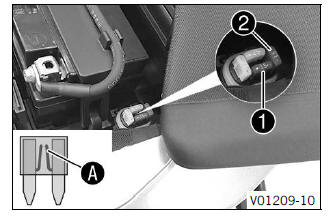

- Remove the protection cap and fuse 1.
Info
A faulty fuse has a burned-out fuse wire A.
- Insert the spare fuse with the correct rating.
Fuse (75011088015)
Tip
Insert spare fuse 2 in the fuse box so that it is available if needed.
- Mount the protection cap.
To change the fuse of the ABS return pump:

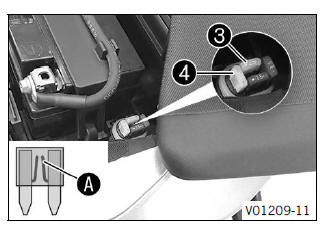

- Remove the protection cap and fuse 3.
Info
A faulty fuse has a burned-out fuse wire A.
- Insert the spare fuse with the correct rating.
Fuse (75011088025)
Tip
Insert spare fuse 4 in the fuse box so that it is available if needed.
- Mount the protection cap.
Finishing work
- Mount the passenger seat.
Changing the fuses of individual power consumers
Warning
Fire hazard Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
Info

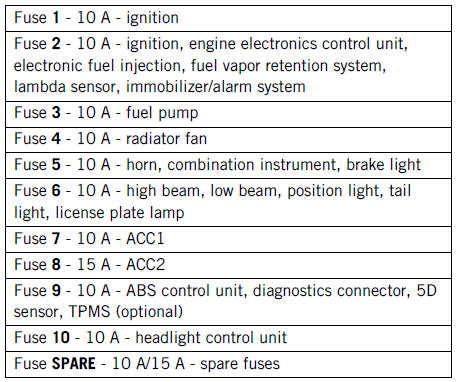

The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
- Remove the passenger seat.
Main work

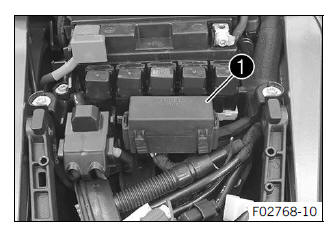

- Open fuse box cover1.
- Remove the faulty fuse.
Guideline
Info
A faulty fuse has a burned-out fuse wire A.
- Insert the spare fuse with the correct rating.
Fuse (75011088010)
Fuse (75011088015)
Tip
Put a spare fuse in the fuse box so that it is available if needed.
- Check that the power consumer is functioning properly.
- Close the fuse box cover.
Finishing work
- Mount the passenger seat.
Loosening the headlight mask with the headlight

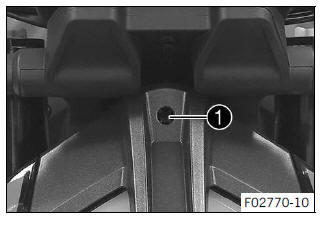

- Completely unscrew adjusting screw 1.
Info
The adjusting screw is fastened to the headlight mask by a ball head holder.
Do not pull the adjusting screw out of the ball head adjuster.

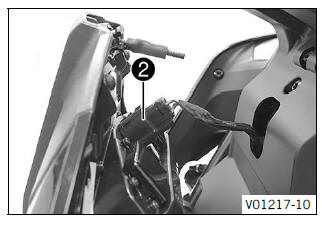

- Swivel the headlight mask forwards slightly and disconnect connector 2.
- Swivel the headlight mask all the way forwards.
Mounting the headlight mask with the headlight
Main work
- Swivel the headlight mask up.

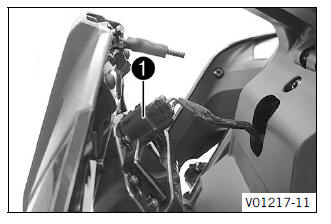

- Plug in connector 1.
- Position the headlight mask.

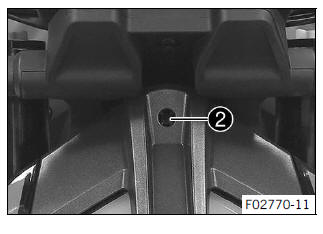

- Mount adjusting screw 2.
Finishing work
- Check the headlight setting.
Removing the cover of the headlight mask rack
Info
The cover of the headlight mask rack must be removed in order to gain access to the ACC1 and ACC2 power supply.
Preparatory work
- Loosen the headlight mask with the headlight.
Main work

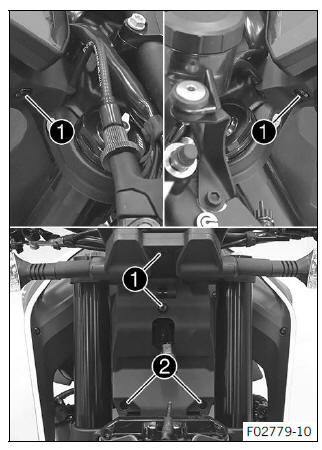

- Remove screws 1.
- Remove screws 2.

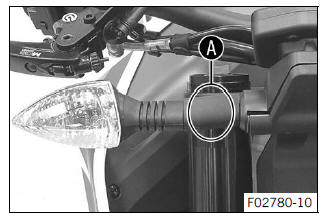

- Hold turn signal in the area A and carefully press against the direction
of travel.
The cover is detached as
illustrated. - Repeat the operation on the opposite side.
- Take off the cover.
